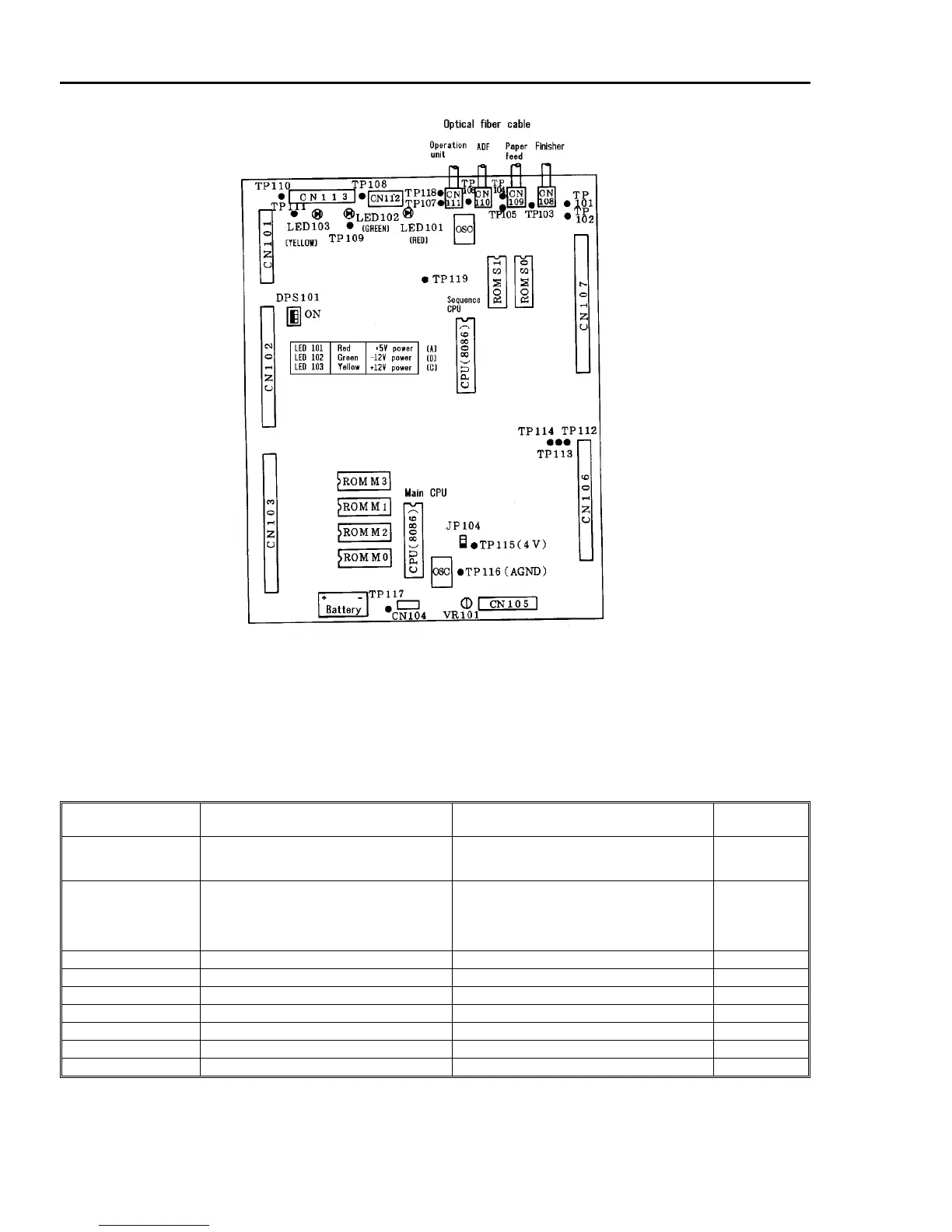

3.3 Main Control Board
NOTE
Never adjust VR101. The setting is paint locked at 4 ± 0.05V
between TP115 and TP116.
3.3.1 DIP switch table
Dipswitch No. Function at ON Function at OFF Default Setting
DPS101-1 Allows the use of the service tool access
code which is entered with service tool
[1-02].
Disables the service tool access code which
is entered with service tool [1-02].
OFF
DPS101-2 1) Allows the use of the initial service tool
access code: 99900.
2) Allows the operation of the copier without
entering any user codes, even in the normal
and security accounting modes.
1) Disables the initial service tool access
code: 99900.
2) Allows the selection of the normal and
security accounting modes with service tool
[2-08].
OFF
DPS101-3 Not used. Not used. OFF
DPS102-1 Overseas version (destination identification). Japanese version. ON
DPS102-2 Not used. Not used. OFF
DPS102-3 Not used. Not used. OFF
DPS103-1 Production use only. (Must be ON.) Production use only. (Must be ON.) ON
DPS103-2 Production use only. (Must be OFF) Production use only. (Must be OFF) OFF
DPS103-3 Not used. Not used. OFF
