1.5.2 Paper transport process
Simplex copy mode

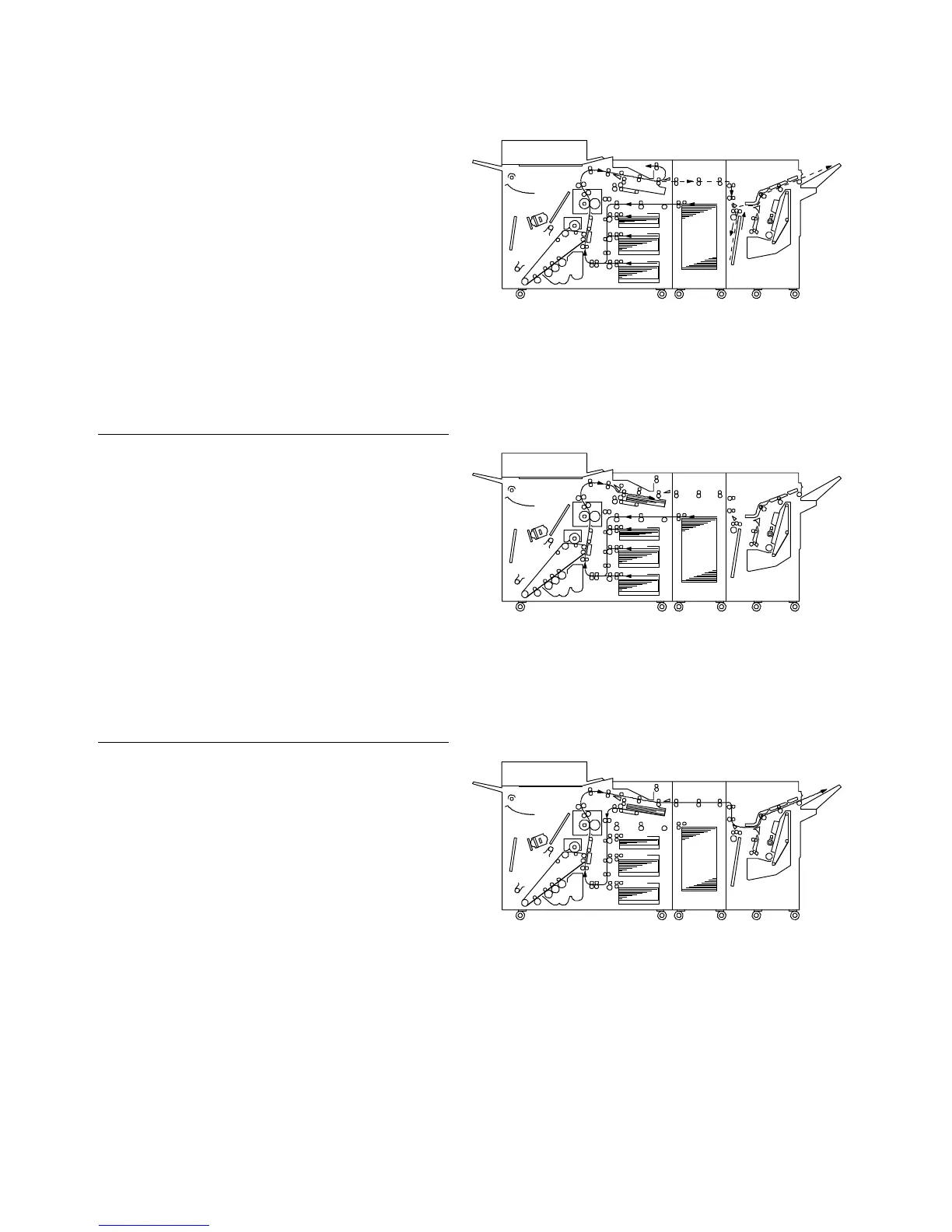

In the simplex copy mode, copies are stacked on the
copy tray with the image side down as shown. In the
finishing modes, copies are inverted and stacked on the
shift tray in page order as shown by the dotted line.
Duplex copy mode
First side copying
For first-side copying in the duplex copy mode, paper is
stacked in the duplex tray.
Second side copying
For second-side copying in the duplex copy mode, the
shift tray ON mode is automatically selected. This is
because the copies fed from the duplex tray must be
reversed to keep the page order of the copies.
Therefore, the copies are not inverted by the inverter in
the finisher and are stacked on the shift tray with the first
side down.
If there is no finisher, paper is discharged to the sub-tray.
