2.16 Large Capacity Tray
2.16.1 Main construction

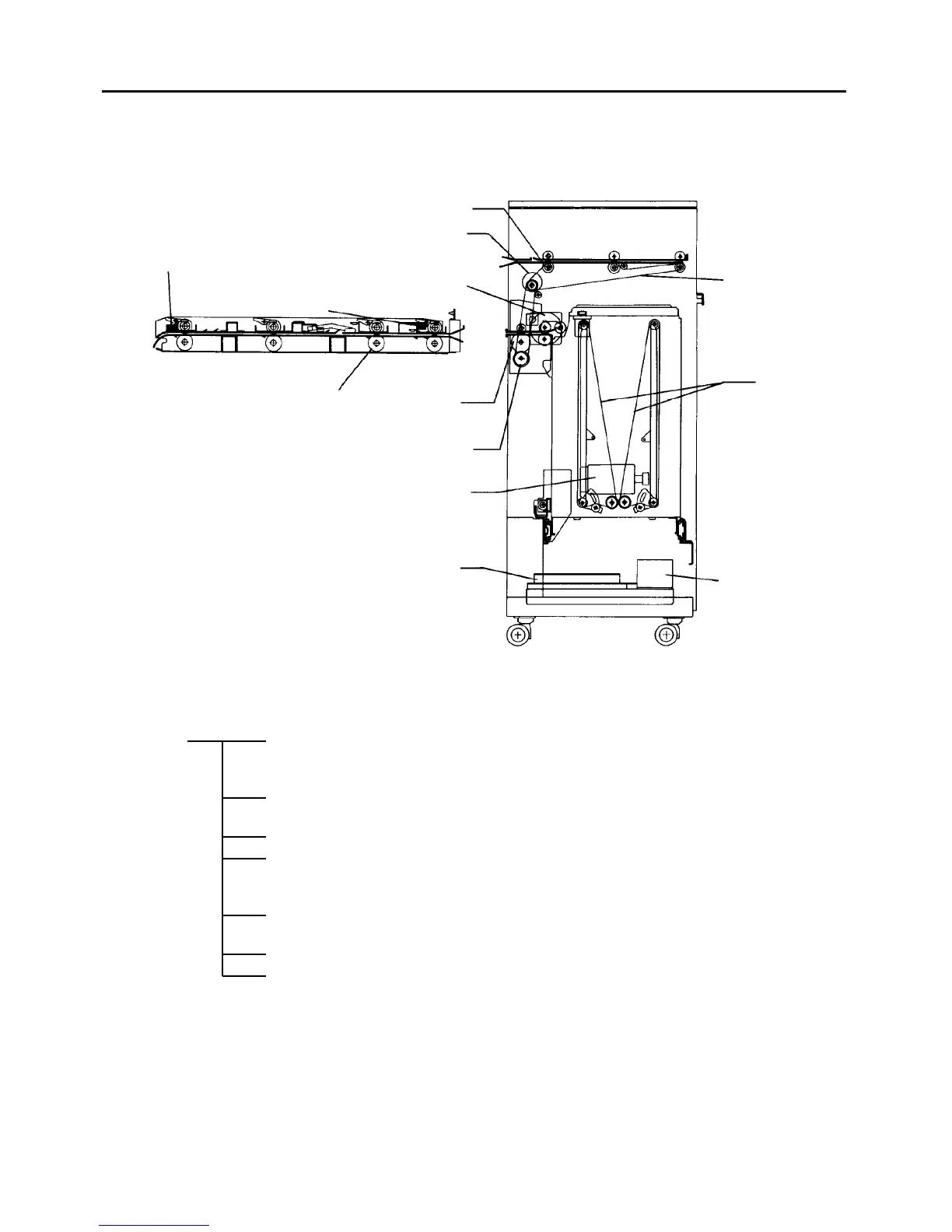

Structural diagram
Construction
The tray motor raises and lowers the tray by the drive
chains. Paper end is detected by the photosensor. The
upper and lower limits are detected by photointerruptors.
An FRR system using a magnetic torque limiter and pa-
per feed motor are employed.
Size detection employs five photointerruptors.
The back fence for the stacked paper automatically
moves from the far side of the tray to the middle of the
tray. This facilitates loading paper on the tray.
Horizontal transport unit driven through the duplex/exit
unit.
The upper transport unit is driven by the transport motor.
Tray lock release mechanism and dehumidification
mechanism.
Transport exit sensor
Transport entrance sensor
Horizontal
transport roller
Upper transport roller
Transport motor
Paper feed motor
Grip roller
Paper feed magnetic clutch
Tray motor
LCT control board
Transport drive belt
Tray drive chain
Power transformer
LCT Tray drive mechanism
Paper feed and separation
Size detection
Back fence drive mechanism
Horizontal transport unit
Upper transport mechanism
Other mechanisms
