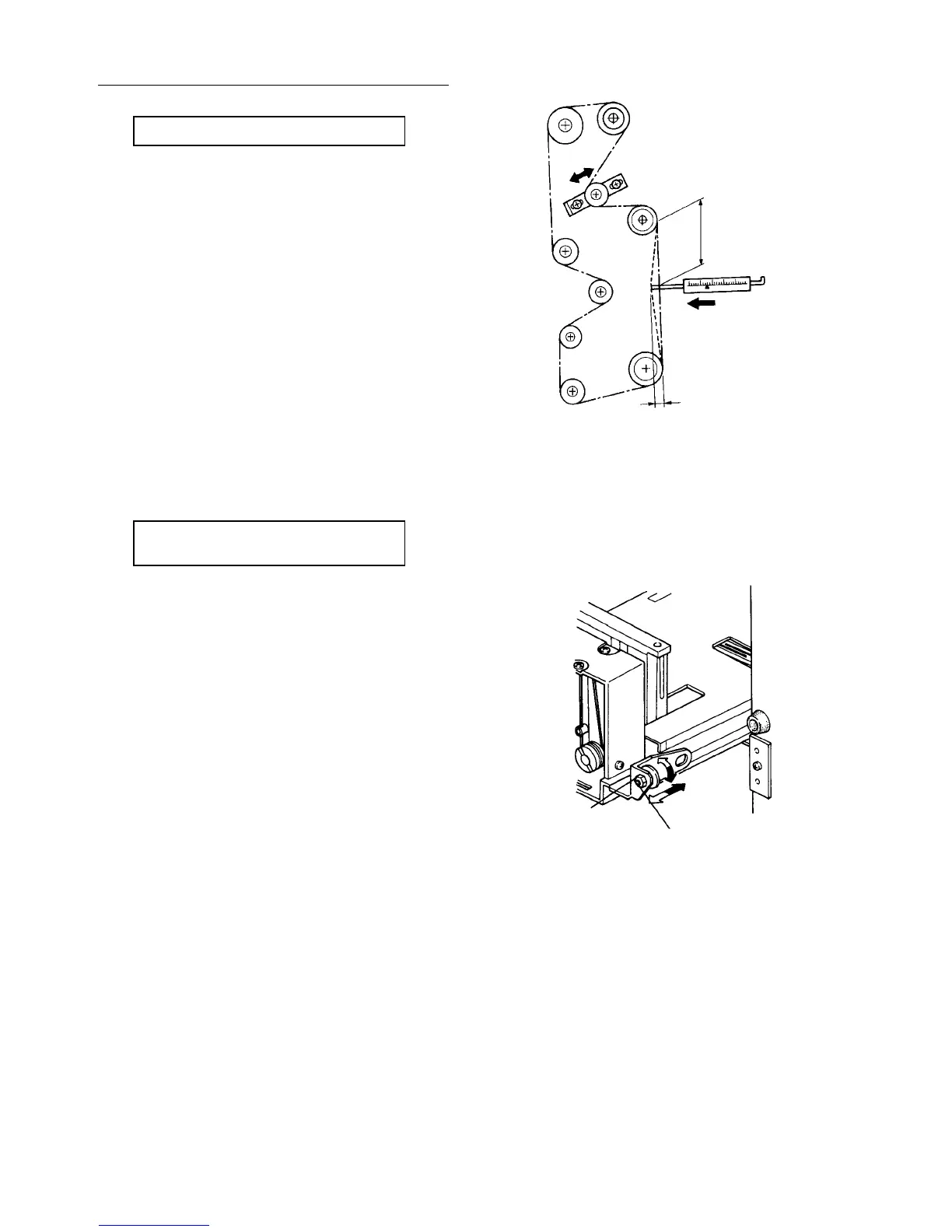

Belt tension standard
3 mm deflection at 140 ± 90 g pressure.
2.1.8 Adjusting the side-to-side registration
Standard value: 0 ± 2 mm in the platen
cover mode.
1. Set paper in the paper tray to be checked.
CAUTION
Be sure to set the paper side guides of the paper
tray securely.
2. Set the test chart on the exposure glass correctly.
3. Make a copy and measure the difference of the
side-to-side registration between the original and
copy.
4. If the value does not match the standard value
then the following steps should be taken:
1) Pull out the paper tray and remove the
tray front cover.
2) Loosen the lock nut and turn the tray
stopper to change the paper tray position
when set.
5. Make more than 10 continuous copies to check the
variation.
6. Be sure that all copies are within the standard
value. If problems still occur, repeat step 3 to 5.
CAUTION
• An adjusting mechanism for the
side-to-side registration is provided for
each tray.
• Because the side-to-side registration
adjustment mechanism is also provided on
the original side (ADF and SADF), make
adjustments for each tray on the basis of
the platen cover mode.
100 mm
3 mm
140 ± 90 g
Lock nut
Tray stopper
