PAPER FEED

SM 3-37 G065

Replacement

and

Adjustment

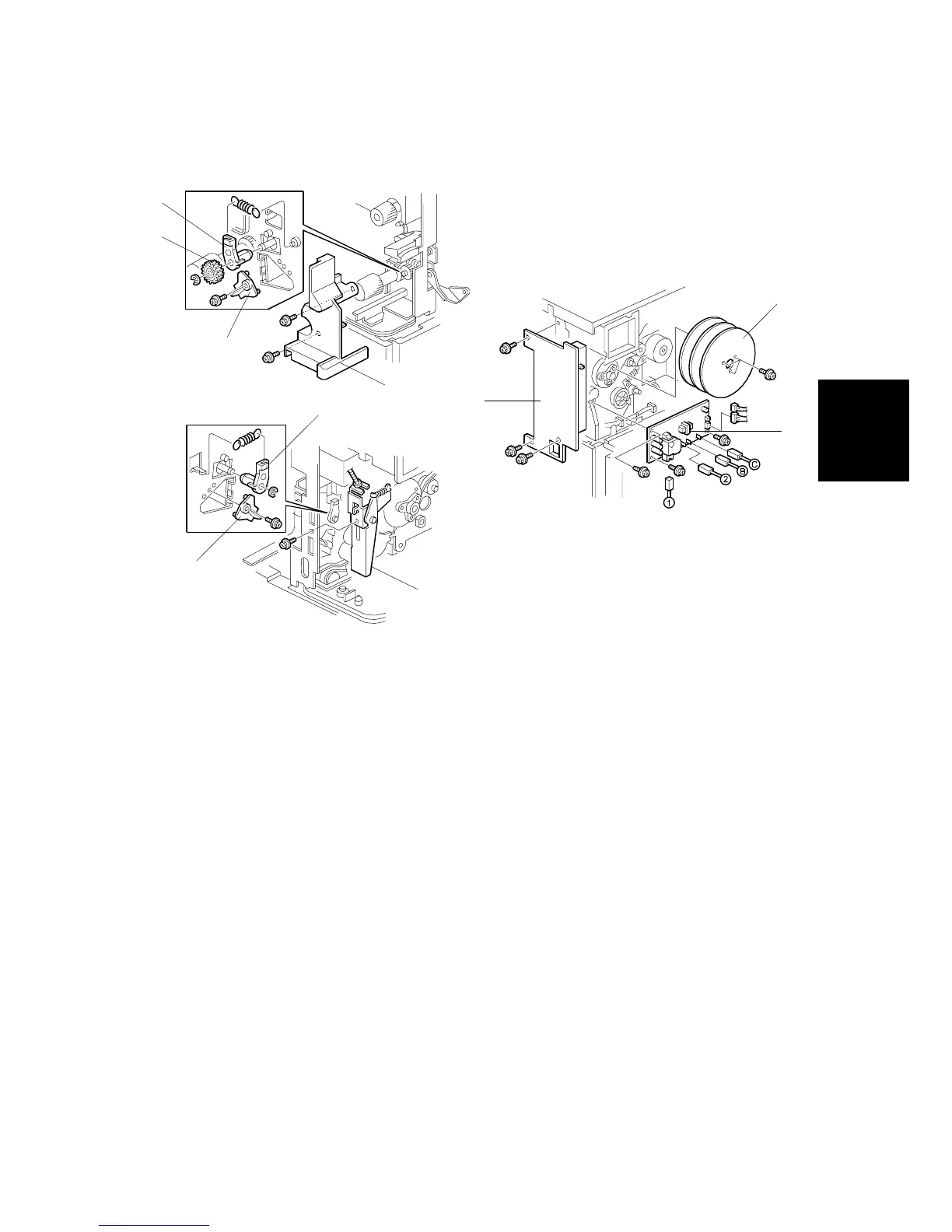

3.13.7 REGISTRATION SENSOR

1. Front door (☛ 3.3• )

2. Rear upper cover (☛ 3.7.1)

3. Right door and transfer belt unit (☛ 3.5, 3.12.1)

4. PCU (☛ 3.10.1)

5. Development unit (☛ 3.12.1)

6. Inner cover [A] (! x 2)

7. Front registration holder [B] (! x 1)

8. Front registration roller gear [C] ($ x 1)

9. Registration roller bushing [D] (spring x 1)

10. High voltage power supply board [E] (! x 3, " x 6)

11. Three flywheels [F] (! x 3)

12. Right rear cover [G] (! x 3)

13. Right cover switch bracket [H] (! x 1)

14. Rear registration holder [I] (! x 1)

15. Registration roller bushing [J] ($ x 1, spring x 1)

G065R992.WMF

G065R922.WMF

G065R993.WMF

[D]

[C]

[B]

[A]

[H]

[F]

[G]

[E]

[J]

[I]
