Ricoh G065 - By-Pass Separation Roller Replacement

BY-PASS TRAY
G065 3-50 SM
3.1.3 BY-PASS SEPARATION ROLLER REPLACEMENT
1. Close the by-pass table.

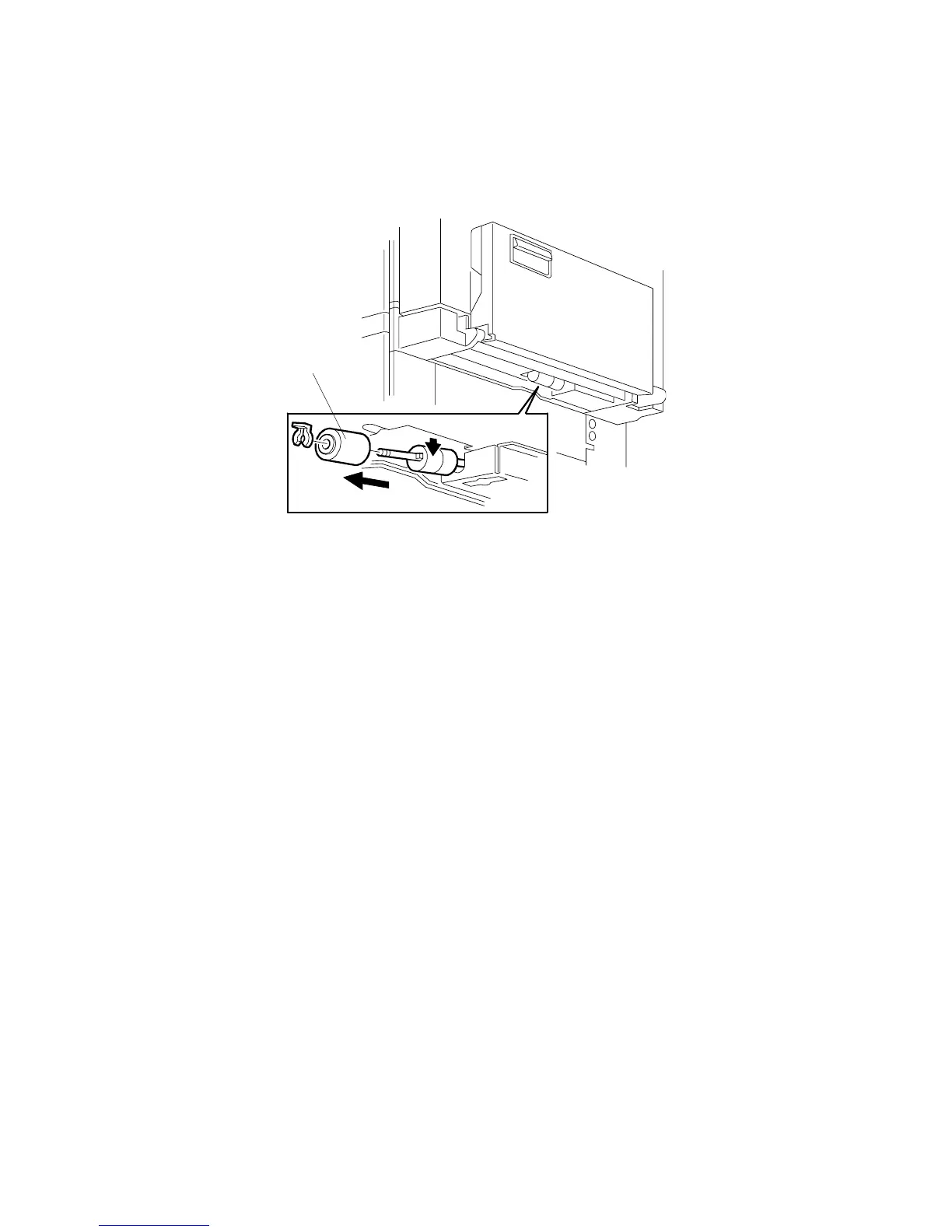

2. Remove the separation roller [A] from the bottom (# x 1)
NOTE: Do not touch the roller surface with bare hands. After installing the new
rollers, do SP7816 for the bypass tray.
G065R542.WMF
[A]
