BY-PASS TRAY
SM 6-39 G065
Detailed
Descriptions

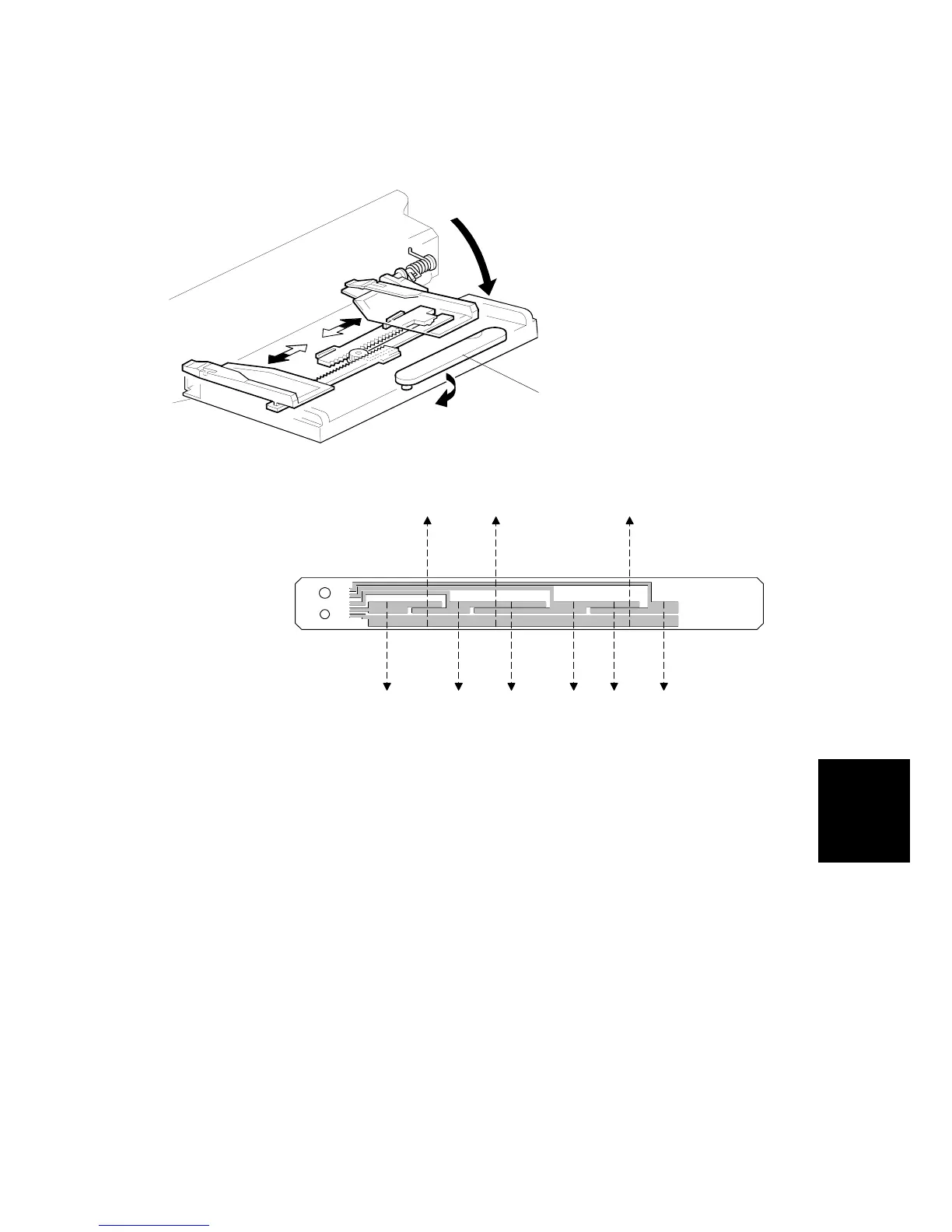

6.10.3 BY-PASS PAPER SIZE DETECTION
The paper size sensor board [A] monitors the paper width.
The rear side fence is connected to the terminal plate. The pattern for each paper
width is unique. Therefore, the machine determines which paper has been placed
in the by-pass tray by the signal output from the board. However, the machine does
not determine the paper length from the by-pass tray hardware.
G065D522.WMF
A3 B4 A4L B5L A5L B6L
5
1/2
"8
1/2
"11"
G065D523.WMF
[A]
