FUSING
SM 3-41 G065
Replacement
and
Adjustment
3.14 FUSING
3.14.1 FUSING UNIT
!
CAUTION
Allow the unit to cool before doing the following procedure.

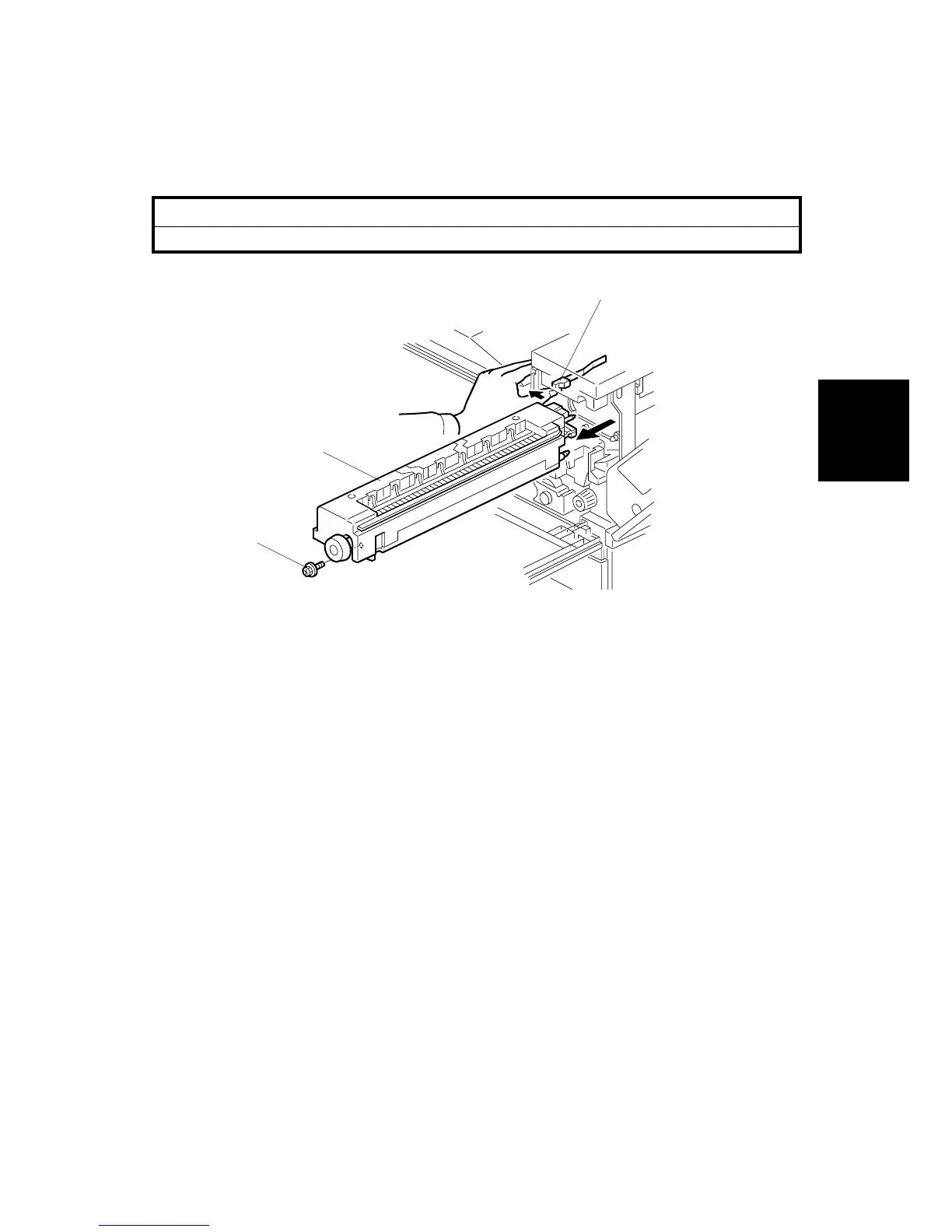

1. Open the front door, duplex unit, and right door.
2. Set screw [A] (! x 1)
3. Fusing unit release lever [B]
4. Slide out the fusing unit [C]
NOTE: After removing the fusing unit, close the right cover.
G065R901.WMF
[A]
[B]
[C]
To Next Page
