PHOTOCONDUCTOR UNIT (PCU)
SM 6-15 G065
Detailed
Descriptions
6.5 PHOTOCONDUCTOR UNIT (PCU)

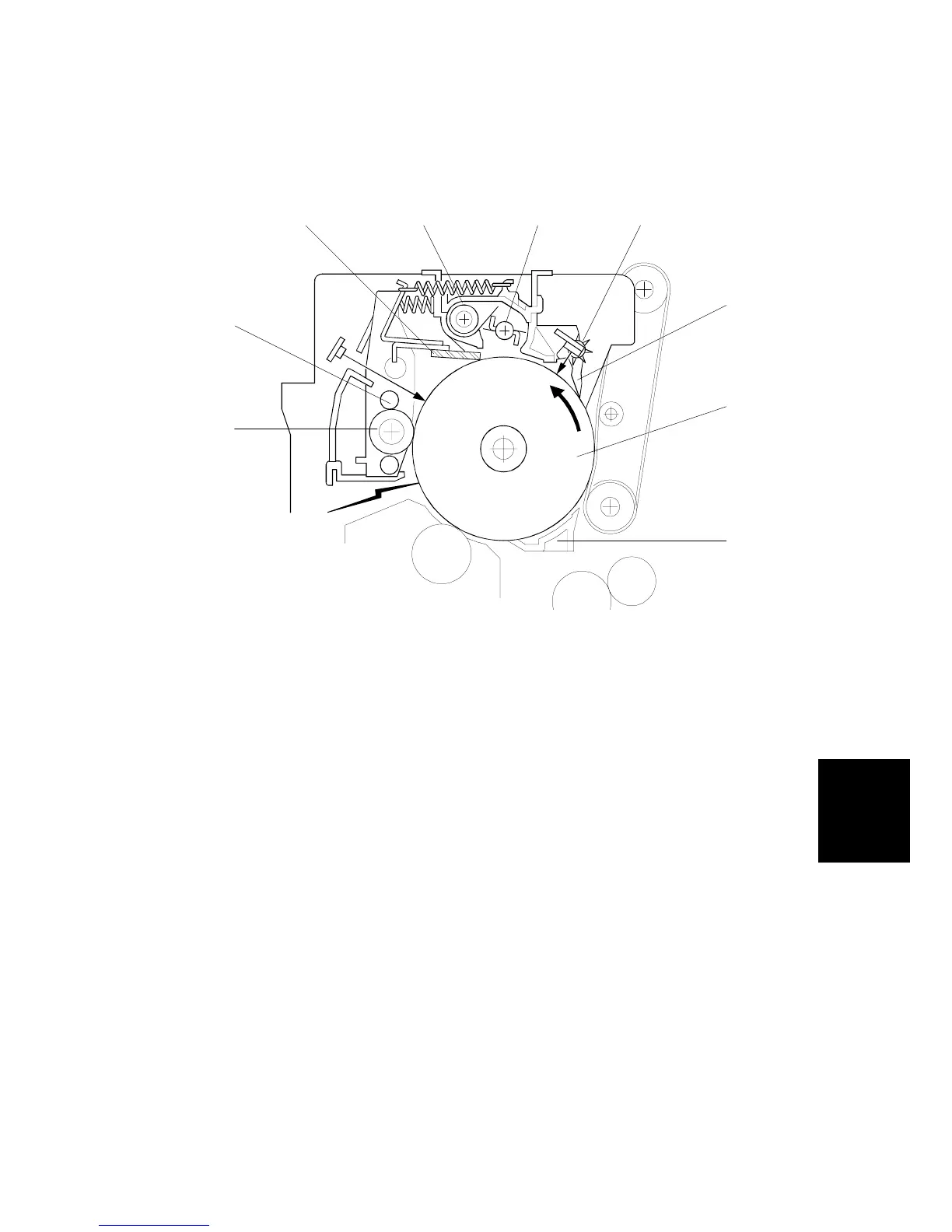

6.5.1 OVERVIEW
1. Toner Collection Coil
2. Toner Collection Plate
3. Spur
4. Pick off Pawl
5. OPC Drum (φ60 mm)
6. Transfer Entrance Guide
7. Charge Roller
8. Brush Roller
9. Cleaning Blade
G065D301.WMF
7
8
9 1 2 3
4
5
6
