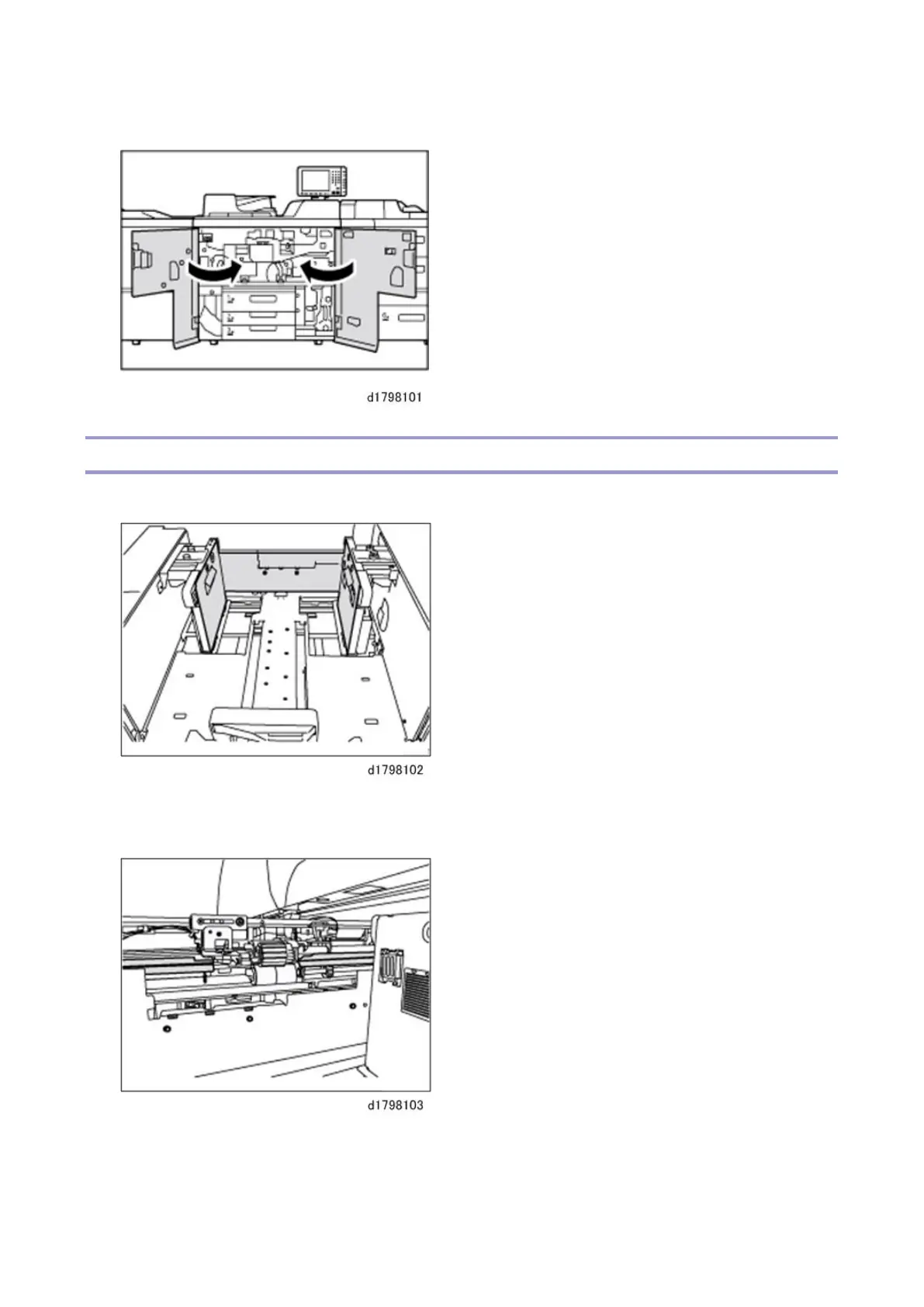

3.Paper Delivery Problems
750
33.
Close the front covers.
Cleaning the LCT
A3 Paper Feed Path
1.
Clean the side fences and front guide.
2.
Clean the paper feed rollers.
3.
Clean the guide plate of the paper feed unit.
757
759
Table of Contents
Symbols, Abbreviations
3
Servicing
4
Warnings, Cautions, Notes
4
About the Display for Options
5
Before You Begin
5
Safety
5
Self-Diagnostic Mode
6
Self-Diagnostic Mode at Power on
6
Self-Diagnostic Test Flow
6
Detailed Self-Diagnostic Mode
7
Executing Detailed Self-Diagnosis
7
Table of Contents
9
SC Code Descriptions
36
Self-Diagnostic Mode
36
Service Call Conditions
36
SC Automatic Reboot
37
SC Logging
37
SP Descriptions
37
Operation During SC Reboot
38
Reset Key (Reboot Key)
38
Screen Display During Reboot
38
Status Display on the Current Screen
38
SC Code Descriptions
40
Here Is Summary of the SC Code Groups
41
Sc101-01
42
Sc101-02
43
Sc101-05
44
Lamp Error (Initial Illumination Adjustment) (Right Side)
45
Sc101-06
45
LED Illumination Adjustment Error (Front)
46
Sc102-00
46
Sc120-00
47
Scanner Home Position Error 1
47
Sc121-00
48
Scanner Home Position Error 2
48
Sc142-00
49
White Level Detection Error (Front)
49
Sc144-00
50
Scanner Communication Error (Front)
50
Black Level Detection Error (Back)
51
Sc151-00
51
Sc154-00
52
Scanner Communication Error (Back)
52
IPU Error (LSYNC Abnormal) (Back)
53
Sc161-02
53
IPU Error (DRAM Initial Error)
54
M2P Error
54
Sc161-06
54
Sc161-20
54
Machine Serial Number Error
55
Sc195-00
55
Polygon Mirror Motor: off Timeout Error
56
Polygon Mirror Motor: on Timeout Error
56
Sc202-00
56
Sc203-00
56
Polygon Mirror Motor: XSCRDY Signal Error
57
Sc204-00
57
FGATE on Error
58
Leading Edge: LD1 Synchronization Detection Error
58
Sc220-00
58
Sc230-01
58
FGATE off Error
59
Sc231-00
59
Error Name
60
LD Error
60
Sc240-00
60
Sc270-01
60
LD ASIC Communication Error: Others
61
Sc270-10
61
Image Transfer Error
62
Sc274-00
62
Microcomputer Communication Error
63
Sc276-00
63
Sc300-00, Sc301-00
64
SC300-00: Charge Corona Wire Voltage Error
64
SC301-00: Charge Corona Wire Voltage Error
64
Charge Grid Voltage Error
65
Sc304-00
65
Charge Wire Cleaner Position Error
66
Sc308-00
66
Quenching Lamp Error
67
Sc316-00
67
Development Motor Error
68
Development Power Pack Output Error
68
Sc320-00
68
Sc325-00
68
Sc332-10
69
Toner Supply Motor Error 1, 2: Bottle
69
Developer Set Error (K)
70
Sc336-01
70
Sc348-01
71
Sc360-01
71
TD Sensor Adjustment Error (K)
71
Toner Supply Error (K)
71
Sc361-01
72
TD Sensor Output Error: Upper Limit (K)
72
Sc362-01
73
TD Sensor Output Error: Lower Limit (K)
73
ID Sensor Calibration Error
74
ID Sensor Output Error: Background Area Output
74
Sc370-00
74
Sc371-00
74
373-01: ID Sensor Pattern Density High Error (K)
75
374-01: ID Sensor Pattern Density Low Error (K)
75
Potential Sensor Output High Error (K)
76
Potential Sensor Output Low Error (K)
76
Sc381-01
76
Sc382-01
76
Drum Motor Error
77
Sc395-00
77
Exposure Potential: Vpl Adjustment Error (K)
78
Image Transfer Error Detection (Leak)
78
Sc412-11
78
Sc440-01
78
Image Transfer Error Detection (Low Output)
79
Sc440-11
79
Sc446-00
80
Transport Belt Motor Error
80
Paper Transfer Roller Unit Error Detection (Leak)
81
Sc450-01
81
AC Power Pack (D) (Voltage Leak)
82
Paper Transfer Roller Unit Error Detection (Low Output)
82
Sc450-11
82
Sc460-01
82
PTR Motor Error
83
Sc465-00
83
Belt Position Ready Timeout
85
Sc471-01
85
Sc471-02
86
Steering Control Homing Error
86
471-04: Image Transfer Belt Position Error 2
87
471-05: Image Transfer Belt Position Error 3
87
Belt Centering Sensor Error
88
Drum Cleaning Motor Error
88
Sc471-06
88
Sc480-00
88
Sc485-00
89
Waste Toner Collection Motor Error
89
Sc486-00
90
Sc488-00
90
Waste Toner Bottle Motor Error
90
Waste Toner Transport Error
90
PCDU Temperature/Humidity Sensor Error (PCU)
92
Sc497-00
92
Sc501-01
94
Tray 1 Bottom Plate Lift Error
94
Sc501-02
95
Sc501-03
95
Tray 1 Bottom Plate Lowering Error
95
Tray 1 Lower Limit Detection Error
95
Sc501-04
96
Tray 1 Lift Motor Overload Error
96
Sc501-05
97
Tray 1 HP Sensor Error
97
Sc501-06
98
Sc502-01
98
Tray 1 Left Tray Paper End Sensor Error
98
Tray 2 Bottom Plate Lift Error
98
Sc502-02
99
Tray 2 Bottom Plate Lowering Error
99
Sc503-01
100
Tray 3 Bottom Plate Lift Error
100
Sc503-02
101
Tray 3 Bottom Plate Lowering Error
101
A4 LCT Tray 1 Upper Limit Detection Error
102
Sc504-01
102
A4 LCT Tray 1 Tray Lift Timeout Error
103
Sc504-02
103
A3 LCT Tray 1 Tray Lift Timeout Error
104
A3 LCT Tray 1 Upper Limit Detection Error
104
Sc504-11
104
Sc504-12
104
A3 LCT Tray 1 Front Blower Fan Error
105
Sc504-16
105
A3 LCT Tray 1 Rear Blower Fan Error
106
Sc504-17
106
Sc504-22
107
Vacuum Feed LCIT 1 Tray 1 Tray Lift Timeout
107
Sc504-23
108
Vacuum Feed LCIT 1 Tray 1 Lowering Timeout Error
108
Sc504-24
109
Vacuum Feed LCIT 1 Tray 1 Paper Overload Error
109
Error Condition
110
Major Cause
110
When Vacuum Feed Banner Sheet Tray Is Installed
110
When Vacuum Feed Banner Sheet Tray Is Not Installed
110
Sc504-25
111
Vacuum Feed LCIT 1 Tray 1 Bottom Plate Lift Error
111
SC504-26 to 31
112
Sc504-32
113
Sc504-34
113
Vacuum Feed LCIT 1 Tray 1 Belt Unit Set Error
113
Sc504-35
114
Vacuum Feed LCIT 1 Tray 1 Return Fan Error
114
A4 LCT Tray 2 Upper Limit Detection Error
115
Sc505-01
115
A4 LCT Tray 2 Timeout Error
116
Sc505-02
116
A3 LCT Tray 2 Timeout Error
117
A3 LCT Tray 2 Upper Limit Detection Error
117
Sc505-11
117
Sc505-12
117
A3 LCT Tray 2 Front Blower Fan Error
118
Sc505-16
118
A3 LCT Tray 2 Rear Blower Fan Error
119
Sc505-17
119
Sc505-22
120
Vacuum Feed LCIT 1 Tray 2 Tray Lift Timeout
120
Sc505-23
121
Vacuum Feed LCIT 1 Tray 2 Lowering Timeout
121
Sc505-24
122
Vacuum Feed LCIT 1 Tray 2 Paper Overload Error
122
Sc505-25
124
Vacuum Feed LCIT 1: Tray 2 Bottom Plate Lift Error
124
SC505-26 to 31
125
Sc505-32
126
Sc505-34
126
Vacuum Feed LCIT 1 Tray 2 Belt Unit Set Error
126
Sc505-35
127
Vacuum Feed LCIT 1 Tray 2 Return Fan Error
127
A4 LCT Tray 3 Upper Limit Detection Error
128
Sc506-01
128
A4 LCT Tray 3 Timeout Error
129
Sc506-02
129
A3 LCT Tray 3 Timeout Error
130
A3 LCT Tray 3 Upper Limit Detection Error
130
Sc506-11
130
Sc506-12
130
A3 LCT Tray 3 Front Blower Fan Error
131
Sc506-16
131
A3 LCT Tray 3 Rear Blower Fan Error
132
Sc506-17
132
Sc506-22
133
Vacuum Feed LCIT 2 Tray 1 Lifting Timeout
133
Sc506-23
135
Vacuum Feed LCIT 2 Tray 1 Lowering Timeout
135
Sc506-24
136
Vacuum Feed LCIT 2 Tray 1 Paper Overload Error
136
Sc506-25
137
Vacuum Feed LCIT 2 Tray 1 Bottom Plate Lift Error
137
SC506-26 to 31
138
Sc506-32
139
Sc506-34
140
Vacuum Feed LCIT 2 Tray 1 Belt Unit Set Error
140
Sc506-35
141
Vacuum Feed LCIT 2 Tray 1 Return Fan Error
141
Sc507-22
142
Vacuum Feed LCIT 2 Tray 2 Tray Lift Timeout
142
Sc507-23
143
Vacuum Feed LCIT 2 Tray 2 Paper Overload Error
143
Sc507-24
144
Vacuum Feed LCIT 2: 2Nd Tray Error (Paper Overload Error)
144
Sc507-25
145
Vacuum Feed LCIT 2 Tray 2 Bottom Plate Lift Error
145
Sc507-32
147
Sc507-34
148
Vacuum Feed LCIT 2 Tray 2 Belt Unit Set Error
148
Sc507-35
149
Vacuum Feed LCIT 2 Tray 2 Return Fan Error
149
Multi Bypass Tray Upper Limit Detection Error
150
Sc509-01
150
Multi Bypass Tray Lift Timeout Error
151
Sc509-02
151
510-01: Double-Feed Sensor Error 1
152
Multi Bypass Tray Lowering Timeout Error
152
Sc509-03
152
Sc510-01, 02
152
Registration Gate Roller HP Error
153
Sc512-00
153
Leading Edge Shift Unit HP Error 1: Initialization
154
Sc513-01
154
Leading Edge Shift Unit Error 2: During Operation
155
Sc513-02
155
Sc513-11
155
Trailing Edge Shift Unit HP Sensor Error 1: Initialization
155
Sc513-12
156
Trailing Edge Shift HP Sensor Error 2: During Operation
156
Exit Junction Gate HP Sensor Error
157
Sc514-00
157
Sc515-01
157
Separation Motor HP Error 1: Main Relay Motor
157
Sc515-02
158
Separation Motor HP Error 2: LCT Relay Separation Motor
158
Sc515-03
159
Separation Motor HP Error 3: Exit/Invert Separation Motor
159
LCT Exit Separation Motor Error
160
Sc515-04
160
SC515-05 to 14
160
A3 LCT Contact Motor Error (Unit 1)
162
A3 LCT Contact Motor Error (Unit 2)
162
Sc515-15
162
Sc515-16
162
Fusing Motor Error
163
Sc520-00
163
Exit Motor Error
164
Heat Pipe Motor Error
164
Sc521-00
164
Sc522-00
164
526-01: Grip Motor 1 Rotation Error
165
526-02: Grip Motor 2 Rotation Error
165
SC527-01 to 08
166
Sc530, Sc531, Sc532
167
Fusing Thermopile (Center) Error (Sensor 1)
169
Sc541-00
169
Sc542-01, 02
169
Hardware High Temperature Detection (Sensor 9)
171
Sc543-00
171
Sc544-01
171
Software High Temperature Detection (Sensor 1): Thermopile
171
Fusing Lamp on Error (Heater 1): Fusing Lamps 1, 2, 3
172
Hardware High Temperature Detection (Sensor 1)
172
Sc544-02
172
Sc545-01
172
Sc547-01
173
Zero Cross Error (Relay Point Welded)
173
Sc547-02
174
Sc547-03
174
Zero Cross Error (Low Frequency Error)
174
Zero Cross Error (Relay Point Defective)
174
Fusing Temperature Sensor (Heating Roller Center) Defective (Sensor 9)
175
Sc549-01
175
Sc550-00
175
Temperature Low Error (Sensor 1): Thermopile
175
Abnormal Low Temperature Is Detected Consecutively.
176
Sc551-00
176
Thermopile (Heating Roller Ends) Defective (Sensor 2)
176
Hardware High Temperature Detection (Sensor 10)
177
Sc553-00
177
Sc554-01
177
Software High Temperature Detection (Sensor 2): Thermopile
177
Hardware High Temperature Detection (Sensor 2)
178
Sc554-02
178
Sc557-00
178
Zero Cross Frequency over
178
Fusing Jam: 3 Counts
179
Fusing Temperature Sensor (Heating Roller End) Defective (Sensor 10)
179
Sc559-00
179
Sc560-00
179
Fusing Reload Temperature Error (Sensor 5): Fusing Temperature Sensor
180
Fusing Temperature Sensor (Pressure Roller) Defective (Sensor 5)
180
Sc561-00
180
Sc562-01
180
Fusing Reload Temperature Error (Sensor 5) : Fusing Temperature Sensor
181
Sc562-02
181
Sc563-00
182
Software High Temperature Error (Sensor 5): Fusing Temperature Sensor
182
Fusing Lamp on Error (Heater 5): Pressure Roller Fusing Lamp
183
Sc565-00
183
Sc566-00
184
Sc567-00
184
Software High Temperature Detection (Sensor 4)
184
Thermistor Defective (Sensor 4): Heating Roller Thermistor (Rear)
184
Hardware High Temperature Detection (Sensor 4)
185
Sc568-00
185
569-01: Pressure Roller Lift Error: HP Detection Failure (Three Times)
186
569-02: Pressure Roller Lift Error: Contact Failure
186
569-04: Pressure Roller Lift Error: Contact Failure: Pressure 3/4
186
Pressure Release Error: Overrun
186
Sc571-00
187
Thermopile (Heating Roller Full-Bd Ends) Defective (Sensor 3)
187
Hardware High Temperature Detection (Sensor 3)
188
Sc573-00
188
Sc574-00
188
Software High Temperature Detection (Sensor 3): Thermopile
188
Fusing Temperature NC Sensor (Hot Roller Center) Defective (Sensor 7)
189
Sc576-00
189
Decurl Unit: Decurl Unit Error (HP Sensor Error)
190
Decurl Unit: Decurl Unit Error (Limit Error)
190
Sc581-00
190
Sc582-00
190
Sc587-01
191
Sc590-01
191
Stepper Motor Error (RYB Board)
191
Thermistor Error
191
Sc590-02
192
Stepper Motor Error (DRB Board)
192
Sc590-03
193
Stepper Motor Error (TDRB Board)
193
Sc590-04
194
Stepper Motor Error (EDRB Board)
194
590-05, 590-06: Stepper Motor Error (DDRB Board)
195
590-07, 590-08, 590-09: Stepper Motor Error (IOB Board)
196
Buffer Pass Unit: Ctb_+24V_Power Supply Error
197
IOB FPGA Startup Error
197
Sc605-00
197
Sc618-01
197
Buffer Pass Unit : Ctb_+24Vint_Power Supply Error
198
Downstream Device Communication Error (Buffer Pass Unit)
198
Sc618-02
198
Sc619-00
198
ADF Communication Error 1
199
Sc620-01
199
ADF Communication Error 2
200
ADF Communication Error 3
200
Sc620-02
200
Sc620-03
200
Finisher/Mail Box Communication Error
201
Sc621-00
201
LCT Communication Error
202
Sc622-01
202
Sc622-02
202
IOB Reset Detection Error
203
Sc663-00
203
Sc664
204
IOB Does Not Start
205
Sc665-04
205
Sc669
205
Engine down after Start-Up
207
Engine Start Failure
207
Sc670-01
207
Sc670-02
207
Controller Start up Failure
208
Sc672-00, 10, 11, 12, 13
208
Sc672-99
209
Operation Panel Flair Communication Error
210
Sc673-10
210
Sc682
210
PER Not Received Error
211
Sc687-00
211
Bottom Plate Lift Motor Error (1-Pass ADF)
212
Sc700-01
212
Feed Motor Error (1-Pass ADF)
213
Sc700-04
213
Pullout Motor Error (1-Pass ADF)
214
Sc700-05
214
Middle Motor Error (1-Pass ADF)
215
Sc700-06
215
Exit Motor Error (1-Pass ADF)
216
Sc700-07
216
Sc700-09
216
Scan Motor Error (1-Pass ADF)
216
Overcurrent Protection Device Error 4 (1-Pass ADF)
217
Sc702-04
217
Overcurrent Protection Device Error 5 (1-Pass ADF)
218
Sc702-05
218
Double Feed Detection Error (1-Pass ADF)
219
Sc703-01
219
Downstream Device Communication Error
220
Sc720-01
220
Overcurrent Protection Device Error 1
221
Sc720-03
221
Protective Device Error 2
223
PSU Fan Error
223
Sc720-04
223
Sc720-05
223
Overcurrent Protection Device Error 3
224
Sc720-06
224
Sc720-10
226
Transport Motor 1 Error (Entrance/Upper Transport)
226
SC720-11 to 18
227
SC720-20 to 33
228
Positioning Roller Lift Motor Error
230
Sc720-34
230
SC720-35 to 42
231
Sc720-43
233
Stapler Rotation Motor Error
233
Corner Stapler Motor Error
234
Sc720-44
234
Connector Not Connected Properly
235
Damaged Harness
235
Motor/Sensor Defective
235
Removing the Staple Jam
235
Sc720-45
236
Stack Transport Motor Error
236
720-50: Booklet Stapler Side Fence Motor Error
237
720-51: Booklet Stapler Top Fence Motor Error
237
720-52: Fold Plate Motor Error
238
720-53: Bottom Fence Motor Error
238
720-54: Stack Transport Unit Motor Error
238
720-55: Booklet Pressure Release Motor Error
238
Sc720-56
239
Turn Guide Motor Error
239
Booklet Stack Transport Motor Error
240
Sc720-57
240
Fold Roller Motor Error
241
Sc720-58
241
Booklet Stack Tray Motor Error
242
Sc720-59
242
Booklet Stapler Motor Error
243
Sc720-60
243
Flat Fold Unit Motor Error
245
Sc720-61
245
Flat Fold Unit Pressure Release Motor Error
246
Sc720-62
246
Sc720-70
247
Shift Tray 2 Lift Motor Error
247
720-71: Shift Tray 2 Shift Motor Error
248
720-72: Shift Tray 2 Jogger Motor Error
248
720-74: Shift Tray 2 Jogger Fence Retract Motor Error
248
720-75: Shift Tray 2 Drag Roller Movement Motor Error
248
Sc720-76
249
Shift Tray 2 Drag Roller Motor Error
249
Sc720-77
251
Shift Tray 2 Paper Exit Fan Motor Error
251
Sc720-78
252
Shift Tray 2 Press Lever Motor Error
252
Sc720-79
253
Shift Tray 1 Lift Motor Error
253
SC720-80 to 83, 85
254
Sc720-84
255
Shift Tray 1 Drag Roller Motor Error
255
720-86: Shift Tray 1 Paper Exit Fan Motor Error
257
720-88: Shift Tray 1 Fan Motor Error
257
NV Memory Error 1
258
Sc720-87
258
Sc721-03
259
NVRAM Access Error
260
Sc721-06
260
Sc721-10, 11, 13, 15, 17
260
Punch Drive Motor Error (Finisher Sr5090/Booklet Finisher SR5100)
263
Sc721-25
263
Sc721-27, 28, 30, 33
264
Positioning Roller Motor Error
265
Sc721-34
265
721-35: Paper Stacking Holder Motor Error
266
721-41: Feed-Out Belt Motor Error
266
Sc721-35, 41
266
Corner Stapler Movement Motor Error
267
Sc721-42
267
Corner Stapler Motor Error (Finisher Sr5090/Booklet Finisher SR5100)
269
SC721-50 to 53
270
Booklet Stapler Motor Error (Finisher Sr5090/Booklet Finisher SR5100)
272
Sc721-60
272
Sc721-70
273
Tray Lift Motor Error (Finisher Sr5090/Booklet Finisher SR5100)
273
721-71: Shift Motor Error (Finisher Sr5090/Booklet Finisher SR5100)
274
721-72: Front Fence Motor Error
274
721-73: Rear Fence Motor Error
274
721-74: Fence Lift Motor Error
274
Sc721-75
276
Stacking Sponge Roller Lift Motor Error
276
Sc721-80
277
Sc721-81
278
Shift Roller Drive Motor Error
278
Sc721-82, 83
279
Overcurrent Protection Device Error 1 (Shift Sort Tray)
280
Sc724-03
280
Overcurrent Protection Device Error 1 2 (Shift Sort Tray)
281
Sc724-04
281
Sc724-10
282
Transport Motor Error (Shift Sort Tray)
282
Sc724-70
283
Tray Lift Motor (Shift Sort Tray)
283
Sc724-71
284
Shift Motor Error (Shift Sort Tray)
284
Fan Motor Error (Shift Sort Tray)
285
Sc724-80
285
Connection Error to Downstream Unit (Multi-Folding Unit)
286
Overcurrent Protection Device Error 1 (Multi-Folding Unit)
286
Sc725-01
286
Sc725-03
286
Overcurrent Protection Device Error 2 (Multi-Folding Unit)
287
Sc725-04
287
725-12: Registration Roller Transport Motor Error (Multi-Folding Unit)
288
725-13: Dynamic Roller Transport Motor Error (Multi-Folding Unit)
288
725-14: Top Tray Exit Motor Error (Multi-Folding Unit)
288
SC725-12 to 14
288
SC725-39 to 41, 71 to 73
290
Entrance Junction Gate Motor Error (Multi-Folding Unit)
291
Sc725-74
291
Sc730-01
293
Sc730-03
293
Stacker 1: Downstream Device Communication Error
293
Stacker 1: Top Door Power Supply Error
293
Sc730-04
294
Stacker 1: Front Door Power Supply Error
294
730-10: Stacker 1: Entrance Motor Error
295
730-11: Stacker 1: Proof Tray Exit Motor Error
295
730-12: Stacker 1: Transport Motor Error
295
730-13: Stacker 1: Shift Exit Motor Error
295
Sc730-40
297
Stacker 1: Tray Lift Motor Error
297
Sc730-50
298
Sc730-51
298
Stacker 1: Shift Tray Exit Fan Motor Error
298
Stacker 1: Shutter Motor Error
298
Sc731-01
299
Stacker 2: Downstream Device Communication Error
299
Sc731-03
300
Sc731-04
300
Stacker 2: Front Door Power Supply Error
300
Stacker 2: Top Door Power Supply Error
300
731-10: Stacker 2: Entrance Motor Error
301
731-11: Stacker 2: Proof Tray Exit Motor Error
301
731-12: Stacker 2: Transport Motor Error
301
731-13: Stacker 2: Shift Exit Motor Error
301
SC731-20, 21, 30 to 35
302
Sc731-40
303
Stacker 2: Tray Lift Motor Error
303
Sc731-50
304
Stacker 2: Shutter Motor Error
304
Sc731-51
305
Stacker 2: Shift Tray Exit Fan Motor Error
305
Sc735-10
306
Trimming Blade Motor Error
306
Press Roller Motor Error
307
Sc735-11
307
Cut Position Motor Error
308
Sc735-12
308
Downstream Device Communication Error (Cover Interposer Tray)
309
Press Stopper Motor Error
309
Sc735-13
309
Sc740-01
309
Overcurrent Protection Device Error 1 (Cover Interposer Tray)
310
Sc740-03
310
1St Tray Lift Error (Cover Interposer Tray)
311
Sc740-10
311
1St Tray Lowering Error (Cover Interposer Tray)
312
Sc740-11
312
1St Tray Upper Limit Error (Cover Interposer Tray)
313
Sc740-12
313
1St Blower Fan Error (Cover Interposer Tray)
315
Sc740-13
315
2Nd Tray Lift Error (Cover Interposer Tray)
316
Sc740-20
316
2Nd Tray Lowering Error (Cover Interposer Tray)
317
Sc740-21
317
2Nd Tray Upper Limit Error (Cover Interposer Tray)
318
Sc740-22
318
2Nd Blower Fan Error (Cover Interposer Tray)
320
Sc740-23
320
SC740-60 to 67, 69 to 71
321
Perfect Binder: Downstream Device Communication Error
324
Perfect Binder: Master-To-Slave Communication Error 1
324
Sc750-01
324
Sc750-10
324
Perfect Binder: Master-To-Relay Board Communication Error
325
Perfect Binder: Master-To-Slave Communication Error 2
325
Sc750-11
325
Sc750-12
325
Perfect Binder: Slave-To-Cutter Control Board Communication Error 1
326
Perfect Binder: Slave-To-Cutter Control Board Communication Error 2
326
Sc750-13
326
Sc750-14
326
Perfect Binder: Master EEPROM Read Error
327
Perfect Binder: Master EEPROM Write Error
327
Sc750-15
327
Sc750-16
327
Perfect Binder: Master-To-Inserter Board Communication Error
328
Perfect Binder: Master-To-Inserter Initial Communication Error
328
Sc750-17
328
Sc750-18
328
Perfect Binder: 24V Check Signal Error 1
329
Perfect Binder: Software Matching Error
329
Sc750-19
329
Sc750-20
329
Perfect Binder: 24V Check Signal Error 2
330
Sc750-21
330
Perfect Binder: 24V Check Signal Error 3
331
Perfect Binder: 24V Check Signal Error 4
331
Sc750-22
331
Sc750-23
331
Perfect Binder: Power Supply Fan (Center) Lock Error
332
Perfect Binder: Power Supply Fan (Right) Lock Error
332
Sc750-24
332
Sc750-25
332
Perfect Binder: Power Supply Fan (Left) Lock Error
333
Sc750-26
333
SC750-27 to 36
333
Perfect Binder: Grip HP Sensor Lag Error
334
Sc750-37
334
Perfect Binder: Grip HP Sensor Late Error
335
Sc750-38
335
Perfect Binder: Grip End Sensor Lag Error
336
Perfect Binder: Grip End Sensor Late Error
336
Sc750-39
336
Sc750-40
336
Perfect Binder: Left Trimming Buffer HP Sensor Lag Error
337
Sc750-41
337
Perfect Binder: Right Trimming Buffer HP Sensor Lag Error
338
Perfect Binder: Trimming Buffer HP Sensor Late Error
338
Sc750-42
338
Sc750-43
338
Perfect Binder: Right Trimming Buffer HP Sensor Late Error
339
Sc750-44
339
Perfect Binder: Thrust Plate Operation Error
340
Perfect Binder: Trimmings Buffer Motor Rotation Error
340
Sc750-45
340
Sc750-46
340
Perfect Binder: Thrust Plate Retraction Error
341
Sc750-47
341
Perfect Binder: Book Collection Buffer HP Sensor Error
342
Perfect Binder: Book Collection Buffer Tray HP Sensor Late Error
342
Sc750-48
342
Sc750-49
342
Perfect Binder: Press HP Sensor Lag Error
343
Sc750-50
343
Perfect Binder: Edge Press Plate Late Error
344
Perfect Binder: Press End Sensor Lag Jam
344
Sc750-51
344
Sc750-52
344
Perfect Binder: Press End Sensor Late Jam
345
Sc750-53
345
Perfect Binder: Press Limit Sensor Error
346
Perfect Binder: Slide HP Sensor Lag Error
346
Sc750-54
346
Sc750-55
346
Perfect Binder: Book Rotation HP Sensor (Right) Lag Error
347
Perfect Binder: Slide HP Sensor Late Error
347
Sc750-56
347
Sc750-57
347
Perfect Binder: Book Rotation HP Sensor (Right) Late Error
348
Sc750-58
348
Perfect Binder: Book Rotation HP Sensor (Left) Lag Error
349
Sc750-59
349
Perfect Binder: Book Rotation HP Sensor (Left) Late Error
350
Perfect Binder: Cutter Front HP Sensor Lag Error
350
Sc750-60
350
Sc750-61
350
Perfect Binder: Cutter Rear HP Sensor Late Error
351
Sc750-62
351
Perfect Binder: Cutter Rear HP Sensor Lag Error
352
Sc750-63
352
Sc750-64
352
Perfect Binder: Cut End Late Error
353
Sc750-65
353
Perfect Binder: Cut End Lag Error
354
Perfect Binder: Trimmer Limit Sensor Error
354
Sc750-66
354
Sc750-67
354
Perfect Binder: Book Lift Tray HP Sensor Lag Error
355
Sc750-68
355
Perfect Binder: Book Lift Tray HP Sensor Late Error
356
Perfect Binder: Book Lift Tray Motor Rotation Error
356
Sc750-69
356
Sc750-70
356
Perfect Binder: Book Output Tray HP Sensor Lag Error
357
Perfect Binder: Book Output Tray HP Sensor Late Error
357
Sc750-71
357
Sc750-72
357
Perfect Binder: Blade Cradle HP Sensor Lag Error
358
Sc750-73
358
Perfect Binder: Blade Cradle HP Sensor Late Error
359
Perfect Binder: Book Door Lock Error
359
Sc750-74
359
Sc750-75
359
Perfect Binder: Electrical Short in Gluing Unit
360
Perfect Binder: Glue Heater Error
360
Sc750-76
360
Sc750-77
360
Perfect Binder: Glue Heater Startup Error 1
361
Sc750-78
361
Perfect Binder: High Temperature Error
362
Perfect Binder: Low Temperature Detection Error
362
Sc750-79
362
Sc750-80
362
Perfect Binder: Glue Level Thermistor Error 1
363
Perfect Binder: Thermostat Error
363
Sc750-81
363
Sc750-82
363
Perfect Binder: Glue Level Thermistor Error 2
364
Perfect Binder: Thermistor Disconnect Error
364
Sc750-83
364
Sc750-84
364
Perfect Binder: Glue Level Thermistor Disconnect Error
365
Perfect Binder: Internal Temperature Thermostat Error
365
Sc750-85
365
Sc750-86
365
Perfect Binder: Internal Temperature Thermostat Disconnect Error
366
Sc750-87
366
Sc750-88
366
Perfect Binder: Glue Heater Startup Error 2
367
Sc750-89
367
Glue Heater Startup Error 3
368
Perfect Binder: Glue Heater Startup Error 4
368
Sc751-10
368
Sc751-11
368
Perfect Binder: Ambient Temperature Error
369
Perfect Binder: Glue Low Limit Late Error
369
Sc751-12
369
Sc751-13
369
Perfect Binder: Glue High Limit Late Error
370
Perfect Binder: Glue Lowering Level Error
370
Sc751-14
370
Sc751-15
370
Perfect Binder: Glue Level Thermistor Adjustment Value Error
371
Sc751-16
371
Perfect Binder: Cover Registration Sensor Adjustment High Value Error
372
Perfect Binder: Timing Sensor Adjustment High Value Error
372
Sc751-17
372
Sc751-18
372
Sc751-19
373
Sc751-20
373
Perfect Binder: Signature Exit Sensor Adjustment High Value Error
374
Sc751-21
374
Perfect Binder: Entrance Path Sensor Adjustment High Value Error
375
Perfect Binder: LE Detect Sensor Adjustment High Value Error
375
Sc751-22
375
Sc751-23
375
Perfect Binder: Book Registration Sensor Adjustment High Value Error
376
Perfect Binder: Timing Sensor Adjustment Low Value Error
376
Sc751-24
376
Sc751-25
376
Perfect Binder: Cover Registration Sensor Adjustment Low Value Error
377
Sc751-26
377
Sc751-27
377
Sc751-28
378
Perfect Binder: LE Detect Sensor Adjustment Low Value Error
379
Perfect Binder: Signature Exit Sensor Adjustment Low Value Error
379
Sc751-29
379
Sc751-30
379
Perfect Binder: Book Registration Sensor Adjustment Low Value Error
380
Perfect Binder: Entrance Path Sensor Adjustment Low Value Error
380
Sc751-31
380
Sc751-32
380
Perfect Binder: LE Detect Sensor Late Error
381
Perfect Binder: Trim Unit Entrance Sensor Late Error
381
Sc751-33
381
Sc751-34
381
Perfect Binder: Book Registration Sensor Late Error
382
Sc751-35
382
Perfect Binder: Entrance Path Sensor Late Error
383
Perfect Binder: Signature Exit Sensor Lag Error
383
Sc751-36
383
Sc751-37
383
Perfect Binder: Main Grip Late Error
384
Perfect Binder: Trim Unit Entrance Sensor Lag Error
384
Sc751-38
384
Sc751-39
384
Perfect Binder: Book Registration Sensor Lag Error
385
Sc751-40
385
Perfect Binder: Book Arrival Sensor Lag Error
386
Perfect Binder: Trimming Jam Error
386
Sc751-41
386
Sc751-42
386
Perfect Binder: Main Grip Unit Lag Error
387
Perfect Binder: Sub Grip Unit Lag Error
387
Sc751-43
387
Sc751-44
387
Perfect Binder: Signature Thickness Sensor Minimum Value Error
388
Sc751-45
388
Perfect Binder: Signature Thickness Sensor Maximum Value Error
389
Sc751-46
389
Sc751-47
389
Signature Signature Thickness Sensor Value Unstable Error
389
Perfect Binder: Glue Vat HP Sensor Lag Error
390
Perfect Binder: Glue Vat HP Sensor Late Error
390
Sc751-48
390
Sc751-49
390
Perfect Binder: Glue Vat Roller Motor Error
391
Sc751-50
391
Perfect Binder: Glue Roller HP Sensor Lag Error
392
Perfect Binder: Glue Roller HP Sensor Late Error
392
Sc751-51
392
Sc751-52
392
Perfect Binder: Spine Fold HP Sensor (L) Late Error
393
Sc751-53
393
Perfect Binder: Left Spine Fold Plate Close Error
394
Perfect Binder: Spine Fold HP Sensor (L) Lag Error
394
Sc751-54
394
Sc751-55
394
Perfect Binder: Left Spine Fold Plate Open Error
395
Sc751-56
395
Perfect Binder: Spine Fold HP Sensor (L) Error
396
Perfect Binder: Spine Fold HP Sensor (R) Error
396
Sc751-57
396
Sc751-58
396
Perfect Binder: Spine Fold HP Sensor (R) Lag Error
397
Sc751-59
397
Perfect Binder: Right Spine Fold Plate Close Error
398
Perfect Binder: Right Spine Fold Plate Open Error
398
Sc751-60
398
Sc751-61
398
Sc751-62
399
Perfect Binder: Spine Fold Plate Open Position Lag Error
400
Perfect Binder: Spine Fold Plate Open Position Late Error
400
Sc751-63
400
Sc751-64
400
Perfect Binder: Spine Fold Plate Close Position Lag Error
401
Perfect Binder: Spine Fold Plate Close Position Late Error
401
Sc751-65
401
Sc751-66
401
Perfect Binder: Front Door Lock Error
402
Sc751-67
402
Perfect Binder: Front Door Force Open Error
403
Perfect Binder: Front Door Lock Release Error
403
Sc751-68
403
Sc751-69
403
Perfect Binder: Switchback Flapper HP Sensor Lag Error
404
Perfect Binder: Switchback Flapper HP Sensor Late Error
404
Sc751-70
404
Sc751-71
404
Perfect Binder: te Press Lever HP Sensor Late Error
405
Sc751-72
405
Perfect Binder: Jog Fence Front HP Sensor Late Error
406
Perfect Binder: te Press Lever HP Sensor Lag Error
406
Sc751-73
406
Sc751-74
406
Perfect Binder: Jog Fence Front HP Sensor Lag Error
407
Perfect Binder: Jog Fence Large HP Sensor Late Error
407
Sc751-75
407
Sc751-76
407
Perfect Binder: Jog Fence Large HP Sensor Lag Error
408
Sc751-77
408
Perfect Binder: Jog Fence Right HP Sensor Lag Error
409
Perfect Binder: Jog Fence Right HP Sensor Late Error
409
Sc751-78
409
Sc751-79
409
Perfect Binder: Jog Fence Right Large HP Sensor Lag Error
410
Perfect Binder: Jog Fence Right Large HP Sensor Late Error
410
Sc751-80
410
Sc751-81
410
Perfect Binder: Switchback Roller HP Sensor Late Error
411
Sc751-82
411
Perfect Binder: Stacking Tray Lower Limit Late Error
412
Perfect Binder: Switchback Roller HP Sensor Lag Error
412
Sc751-83
412
Sc751-84
412
Perfect Binder: Paper Detect Sensor (Front) Detection Error
413
Perfect Binder: Stacking Tray Lower Limit Lag Error
413
Sc751-85
413
Sc751-86
413
Perfect Binder: Paper Detect Sensor (Front) no Paper Detection Error
414
Sc751-87
414
Perfect Binder: Paper Detect Sensor (Rear) no Paper Detection Error
415
Perfect Binder: Paper Detect Sensor (Rear) Paper Detection Error
415
Sc751-88
415
Sc751-89
415
Perfect Binder: Stack Overflow Sensor Detection Late Error
417
Perfect Binder: Stacking Tray Low Limit Sensor Error 1
417
Sc752-10
417
Sc752-11
417
Perfect Binder: Stack Overflow Sensor Detection Position Late Error
418
Perfect Binder: Stacking Tray Low Limit Sensor Error 2
418
Sc752-12
418
Sc752-13
418
Perfect Binder: Stack Tray HP Sensor Late Error
419
Sc752-14
419
Perfect Binder: Stack Tray HP Sensor Lag Error
420
Perfect Binder: Stack Weight Move HP Sensor Late Error
420
Sc752-15
420
Perfect Binder: Cover Guide HP Sensor (Left) Late Error
421
Perfect Binder: Sstack Weight HP Sensor Lag Error
421
Sc752-17
421
Sc752-18
421
Perfect Binder: Cover Guide HP Sensor (Left) Error
422
Sc752-19
422
Perfect Binder: Cover Guide (Right) HP Sensor Late Error
423
Perfect Binder: Left Cover Guide Release Position Late Error
423
Sc752-20
423
Sc752-21
423
Perfect Binder: Cover Guide (Right) Sensor Error
424
Perfect Binder: Right Cover Guide Release Position Late Error
424
Sc752-22
424
Sc752-23
424
Perfect Binder: Registration HP Sensor Lag Error
425
Perfect Binder: Registration Unit HP Late Error
425
Sc752-24
425
Sc752-25
425
Perfect Binder: Sub Grip HP Sensor Late Error
426
Sc752-26
426
Perfect Binder: Sub Grip HP Sensor Lag Error
427
Perfect Binder: Sub Grip Size HP Sensor Late Error
427
Sc752-27
427
Sc752-28
427
Perfect Binder: Sub Grip Size HP Sensor Lag Error
428
Sc752-29
428
Perfect Binder: Sub Grip Open Position Lag Error
429
Perfect Binder: Sub Grip Open Position Late Error
429
Sc752-30
429
Sc752-31
429
Perfect Binder: Sub Grip Close Position Lag Error
430
Perfect Binder: Sub Grip Close Position Late Error
430
Sc752-32
430
Sc752-33
430
Perfect Binder: Sub Grip Sensor Error
431
Sc752-34
431
Perfect Binder: Sub Grip HP Late Error
432
Perfect Binder: Sub Grip HP Position Lag Error
432
Sc752-35
432
Sc752-36
432
Perfect Binder: Signature Move Main Grip Position Lag Error
433
Perfect Binder: Signature Move Main Grip Position Late Error
433
Sc752-37
433
Sc752-38
433
Perfect Binder: Main Grip Rotate Enable Position Sensor Late Error
434
Sc752-39
434
Perfect Binder: Main Grip Rotate Enable Position Sensor Lag Error
435
Perfect Binder: Signature Move HP Sensor Error
435
Sc752-40
435
Sc752-41
435
Perfect Binder: Main Grip HP Sensor Lag Error
436
Perfect Binder: Main Grip HP Sensor Late Error
436
Sc752-42
436
Sc752-43
436
Perfect Binder: Main Grip Press Sensor (S) Position Late Error
437
Sc752-44
437
Perfect Binder: Main Grip Press Sensor (L) Position Late Error
438
Perfect Binder: Main Grip Press Sensor (S) Position Lag Error
438
Sc752-45
438
Sc752-46
438
Perfect Binder: Main Grip Press Sensor (L) Position Lag Error
439
Perfect Binder: Signature Exit Sensor Late Error
439
Sc752-47
439
Sc752-48
439
Perfect Binder: Main Grip HP Sensor (L) Late Error
440
Sc752-49
440
Perfect Binder: Main Grip HP Sensor (L) Lag Error
441
Perfect Binder: Main Grip Rotate HP Sensor Late Error
441
Sc752-50
441
Sc752-51
441
Main Grip Rotate-To-Binding Position Late Error
442
Perfect Binder: Main Grip Rotate HP Sensor Lag Error
442
Sc752-52
442
Sc752-53
442
Main Grip Rotate-To-Binding Position Lag Error
443
Sc752-54
443
Perfect Binder: Main Grip Open Sensor (R) Late Error
444
Perfect Binder: Main Grip Rotate Sensor Error
444
Sc752-55
444
Sc752-56
444
Perfect Binder: Main Grip Close Sensor (R) Late Error
445
Perfect Binder: Main Grip Open Sensor (R) Lag Error
445
Sc752-57
445
Sc752-58
445
Perfect Binder: Main Grip Close Sensor (R) Lag Error
446
Perfect Binder: Main Grip Motor (R) Rotation Error
446
Sc752-59
446
Sc752-60
446
Perfect Binder: Main Grip (R) Sensor Error
447
Sc752-61
447
Perfect Binder: Main Grip Open Sensor (F) Lag Error
448
Perfect Binder: Main Grip Open Sensor (F) Late Error
448
Sc752-62
448
Sc752-63
448
Perfect Binder: Main Grip Close Sensor (F) Lag Error
449
Perfect Binder: Main Grip Close Sensor (F) Late Error
449
Sc752-64
449
Sc752-65
449
Perfect Binder: Main Grip Motor (F) Rotation Error
450
Sc752-66
450
Perfect Binder: Main Grip (F) Sensor Error
451
Perfect Binder: Signature Exit Path HP Sensor Late Error
451
Sc752-67
451
Sc752-68
451
Perfect Binder: Signature Exit Path HP Sensor Lag Error
452
Perfect Binder: Signature Path Exit Press Sensor Late Error
452
Sc752-69
452
Sc752-70
452
Perfect Binder: Leading Edge Sensor Late Error
453
Perfect Binder: Signature Path Exit Press Sensor Lag Error
453
Sc752-71
453
Sc752-72
453
Perfect Binder: Cover Interposer Tray Read Error
454
Sc752-73
454
Perfect Binder: Cover Interposer Tray EEPROM Write Error
455
Perfect Binder: Drive Switch Motor Error (down to Up)
455
Sc752-74
455
Sc752-75
455
Perfect Binder: Drive Switch Motor Error (up to Down)
456
Perfect Binder: Upper Tray Low Position Late Error
456
Sc752-76
456
Sc752-77
456
Perfect Binder: Lower Tray Low Position Lag Error
457
Perfect Binder: Upper Tray Feed Position Late Error
457
Sc752-78
457
Sc752-79
457
Perfect Binder: Lower Tray Paper Feed Position Late Error
458
Sc752-80
458
Perfect Binder: Low Performance Error (or Service Mode)
459
Sc752-81
459
Sc752-82
459
Sc752-83
460
Sc752-84
460
Sc752-85
461
Sc752-86
462
Sc752-87
462
Perfect Binder: Right Trimming Buffer HP Sensor
463
Sc752-88
463
Sc752-89
464
Sc753-10
465
Sc753-11
465
Sc753-12
466
Sc753-13
467
Sc753-14
467
Sc753-15
468
Sc753-16
469
Sc753-17
469
Sc753-18
470
Sc753-19
471
Sc753-20
471
Sc753-21
472
Sc753-22
473
Sc753-23
473
Sc753-24
474
Sc753-25
475
Sc753-26
475
Sc753-27
476
Sc753-28
477
Sc753-29
477
Sc753-30
478
Sc753-31
479
Sc753-32
479
Sc753-33
480
Sc753-34
481
Sc753-35
481
Sc753-36
482
Sc753-37
483
Sc753-38
483
Sc753-39
484
Electrical Short in the Gluing Unit
485
Sc753-40
485
Sc753-41
485
Sc753-42
486
Sc753-43
486
Sc753-44
487
Sc753-45
487
Sc753-46
488
Sc753-47
488
Sc753-48
489
Sc753-49
490
Sc753-50
490
Sc753-51
491
Sc753-52
491
Sc753-53
492
Sc753-54
493
Sc753-55
493
Sc753-56
494
Sc753-57
494
Sc753-58
495
Sc753-59
496
Sc753-60
496
Sc753-61
497
Sc753-62
498
Sc753-63
498
Sc753-64
499
Sc753-65
499
Sc753-66
500
Sc753-67
501
Sc753-68
501
Sc753-69
502
Sc753-70
502
Sc753-71
503
Sc753-72
503
Sc753-73
504
Sc753-74
505
Sc753-75
505
Sc753-76
506
Sc753-77
506
Sc753-78
507
Sc753-79
508
Sc753-80
508
Sc753-81
509
Sc753-82
510
Sc753-83
511
Sc753-84
511
Sc753-85
512
Sc753-86
512
Sc753-87
513
Sc753-88
514
Sc753-89
515
Sc754-10
516
Sc754-11
516
Sc754-12
517
Sc754-13
518
Sc754-14
518
Sc754-15
519
Sc754-16
520
Sc754-17
520
Sc754-18
521
Sc754-19
521
Sc754-20
522
Sc754-21
523
Sc754-22
523
Sc754-23
524
Sc754-24
525
Sc754-25
525
Sc754-26
526
Sc754-27
527
Sc754-28
527
Sc754-29
528
Sc754-30
529
Sc754-31
529
Sc754-32
530
Sc754-33
531
Sc754-34
531
Sc754-35
532
Sc754-36
533
Sc754-37
533
Sc754-38
534
Sc754-39
535
Sc754-40
535
Sc754-41
536
Sc754-42
537
Sc754-43
537
Sc754-44
538
Sc754-45
539
Sc754-46
539
Sc754-47
540
Sc754-48
541
Sc754-49
542
Sc754-50
542
Sc754-51
543
Sc754-52
544
Sc754-53
544
Sc754-54
545
Sc754-55
546
Sc754-56
546
Sc754-57
547
Sc754-58
548
Sc754-59
548
Sc754-60
549
Sc754-61
550
Sc754-62
550
Sc754-63
551
Sc754-64
552
Sc754-65
552
Sc754-66
553
Sc754-67
554
Sc754-68
554
Sc754-69
555
Sc754-70
556
Sc754-71
556
Sc754-72
557
Sc754-73
558
Sc754-74
558
Sc754-75
559
Sc754-76
560
Sc754-77
560
Sc754-78
561
Sc754-79
562
Sc754-80
562
Sc754-81
563
Sc754-82
563
Sc756-01
565
Sc756-02
565
Sc756-10
566
Sc756-20
567
Sc756-21
568
Sc756-22
569
Ring Binder: Punch Entrance Roller HP Error
570
Sc756-23
570
Ring Binder: Paddle Roller HP Error
571
Sc756-30
571
Ring Binder: Jogger Fence 1 HP Error
572
Sc756-31
572
Jogger Fence 2 HP Error
573
Sc756-32
573
Ring Binder: Stack Tamper HP Error
574
Sc756-33
574
Ring Binder: Pre-Bind Jogger Clamp HP Error
575
Sc756-34
575
Ring Binder: Binder Unit Run-Out Error
576
Sc756-40
576
Ring Binder: Clamp Thickness Error
577
Sc756-41
577
Ring Binder: Alignment Pin Error
578
Sc756-42
578
Ring Binder: 50/100 Clamp Adjustment Error
579
Ring Binder: Pre-Bind Jogger Shutter Error
579
Sc756-43
579
Sc756-44
579
Ring Binder: Timing Sensor Interval Error
580
Sc756-45
580
Ring Binder: Clamp Unit HP Error
581
Sc756-46
581
Ring Binder: Spine Alignment Error
582
Sc756-47
582
Ring Binder: Binder Unit Detection Error
583
Sc756-48
583
Ring Binder: Swing HP Error
584
Sc756-50
584
Ring Binder: Output Belt HP Error
585
Sc756-51
585
Bridge Unit: Downstream Device Communication Error
587
Overcurrent Protection Device Error 2 (Bridge Unit)
587
Sc761-01
587
Sc761-61
587
LCT1: Overcurrent Protection Device Error (Vacuum Feed LCIT)
588
Overcurrent Protection Device Error 8 (Bridge Unit)
588
Sc761-67
588
Sc780-03
588
LCT1: PSU Cooling Fan 1 Error (Vacuum Feed LCIT)
589
Sc780-05
589
LCT1: Bridge Unit Cooling Fan Error (Vacuum Feed LCIT)
590
LCT1: PSU Cooling Fan 2 Error (Vacuum Feed LCIT)
590
Sc780-06
590
Sc780-07
590
LCT1: Vertical Transport Motor Cooling Fan Error (Vacuum Feed LCIT)
591
Sc780-08
591
A3 LCT Cooling Fan Error (Unit 1)
592
LCT1: Transport Motor Cooling Fan Error (Vacuum Feed LCIT)
592
Sc780-09
592
Sc780-11
592
A4 LCT Cooling Fan 1 Error
593
A4 LCT Cooling Fan 2 Error
593
Sc780-12
593
Sc780-13
593
A4 LCT Cooling Fan 3 Error
594
Sc780-14
594
A3 LCT Cooling Fan Error (Unit 2)
595
LCT1: Unit Configuration Error (LCT Not Connected) (Vacuum Feed LCIT)
595
Sc780-15
595
Sc780-50
595
LCT1: Multi Bypass Tray Cooling Fan Error
596
LCT1: Unit Configuration Error (Bridge Unit Connection Error)
596
Sc780-51
596
Sc780-60
596
LCT2: Overcurrent Protection Device Error (Vacuum Feed LCIT)
597
Sc781-03
597
LCT2: PSU Cooling Fan 1 Error (Vacuum Feed LCIT)
598
LCT2: PSU Cooling Fan 2 Error (Vacuum Feed LCIT)
598
Sc781-05
598
Sc781-06
598
LCT2: Vertical Transport Motor Cooling Fan Error (Vacuum Feed LCIT)
599
Sc781-08
599
LCT2: Transport Motor Cooling Fan Error (Vacuum Feed LCIT)
600
LCT2: Unit Configuration Error (Bridge Unit Connection Error)
600
Sc781-09
600
Sc781-51
600
EEPROM Error
601
LCT2: Unit Configuration Error (Multi Bypass Tray Connection Error)
601
Sc781-52
601
Sc789-10
601
789-11: RPIP Interface Box Unit Configuration Error 1
602
789-12: RPIP Interface Box Unit Configuration Error 2
602
789-13: RPIP Interface Box Unit Configuration Error 3
602
789-14: RPIP Interface Box Unit Configuration Error 4
602
EEPROM Download Error
603
Sc790-10
603
Sc816
604
EEPROM Access Error
607
Kernel Halt Error
607
Sc819-00
607
Sc840-00
607
EEPROM Read Data Error
608
Nand-Flash Updating Verification Error
608
Sc841-00
608
Sc842-00
608
Emmc Rewrite Frequency Exceeded Threshold
609
Number of Nand-Flash Block Deletions Exceeded
609
Sc842-02
609
Sc843-02
609
Hardware Error Detected at Automatic Firmware Update
610
Hardware Error Detected at Automatic Firmware Update: DIMM/HDD Error
610
SC845-01 to 05
610
Sc845-50
610
Sc845-51
611
Sc855-01
611
Wireless LAN Board Error
611
HDD Startup Error at Main Power on (HDD Error)
612
Sc860-00
612
HDD File System Error at Main Power on (HDD Error)
613
HDD Label Error at Main Power on (HDD Error)
613
Sc860-01
613
Sc860-02
613
HDD Data Read Failure
614
HDD Encryption Key Error at Main Power on (HDD Error)
614
Sc860-03
614
SC863-01 to 23
614
HDD Data CRC Error
615
Sc864
615
HD Access Error
616
Sc865-00
616
HDD Access Error
617
SC865-01 to 23
617
HDD Time-Out Error
618
SC865-50 to 73
618
Sc866-00
619
SC867-00 to 02
619
SD Card Authentication Error
619
SD Card Removed
619
Application SD Card
620
SC868-00 to 02
620
SD Card Error 3: SD Card Access
620
User SD Card
620
Proximity Sensor Error (Continuous Detection)
621
Proximity Sensor Error (Continuous Non-Detection)
621
Sc869-01
621
Sc869-02
621
Sc874
622
875-01: Delete All Error (HDD Clear) (Hddchack-I Error)
623
875-02: Delete All Error (HDD Clear) (Data Deletion Failure)
623
Sc875-01, 02
623
Sc877-00
623
Sc878-00
624
Sc878-01
624
TPM Authentication Error
624
USB Flash Error
624
DESS Self-Test Error
625
Sc878-03
625
Sc878-20
625
TCSD Error
625
MLB Error
626
Sc880-00
626
Sc899-00
626
Software Performance Error (Signal Reception End)
626
Electrical Total Counter Error
627
External Controller Error 1
627
Sc900-00
627
Sc910-00
627
External Controller Error 2
628
External Controller Error 3
628
Sc910-02
628
Sc910-03
628
External Controller down
629
External Controller Error 10
629
Sc910-10
629
Sc919-00
629
920-02: Printer Error 1 (WORK Memory Cannot be Acquired)
630
920-04: Printer Application Error (Filter Process Aborted)
630
Sc921-00
630
Sc990-00
630
Recoverable Software Operation Error
631
Sc991-00
631
Sc992-00
631
Undefined SC Issued
631
CPM Setting Error
632
Operation Panel Management Record Limit Reached
632
Sc994-00
632
Sc995-01
632
Sc995-02
633
Sc995-03
633
Application Function Selection Error
634
Sc995-04
634
Sc997-00
634
Application Start Error
635
Sc998-00
635
Image Quality Problems
636
Paper Spotted with Toner
636
Toner Spotting/Staining
636
Black Spots
637
Streaks
638
Two 14-MM Wide Streaks
643
Ghosting
646
Scratched Images and Stained Paper Edges
646
Back Sides of Sheets Dirty after a Non Carbon Paper Print Job
647
Toner Scatter
649
Toner Scatter 1 (Around Edge of Solid Fill)
649
Toner Scatter 2 (Trailing Scatter)
650
Toner Scatter 16 MM (0.6 Inches) or more from the Leading Edge
651
Toner Scatter 3 (Blemished Line or Character)
651
Toner Scatter 4
652
Image Loss
655
White Spots 1
655
White Spots 2
656
Problem with Paper Transfer Roller
657
White Granular Spots
657
White Spot Blisters
657
Mottling
661
Firefly, Comet Patterns
669
White Parallel Stripes
670
Toner Splatter on Edge
671
White Spots 15 MM from Edge
671
Paper Types Likely to Cause Problems
672
Density Problems
674
Uneven Image Density
674
Density Change at Low Temperatures
676
Lookup Table for Calculating Absolute Humidity
677
Uneven Density from Top to Bottom
678
Fainter Leading Edge
679
Lowering the Transfer Current
680
Fainter Trailing Edge
681
Raising the Transfer Current
681
Specifying the Setting Range
681
Uneven Density Within 90 MM (3.5 In.) of the Trailing Edge
682
Periodic Density Fluctuation
683
Color Is too Dense
684
Entire Image Faint
684
Broken Thin Lines
685
Blurred Images (Convex Lens Shaped)
686
Broken Characters (Dropout)
687
Afterimages
688
White Streaks
689
Vertical White Lines
690
Shock Jitter at the Fusing Unit
691
Glossy Problems
693
Insufficient Gloss
693
Vertical Glossy Lines
693
Blurred Images in Bands
694
Blurred Text
694
Low Density in Shaded Area
694
Changing the Process Speed
696
Fusing Problems
696
Insufficient Toner Fusing
696
Conditions Where Image Quality Can be Improved
697
Control Image
697
Improving Print Quality with Mixed Paper
697
Fusing Quality Monitoring Mode: Fusing Priority
698
Worn Paper Edge on the Fusing Belt (Fusing Unit Swapping)
698
Fusing Unit Swapping
700
Frequent Paper Misfeeds
701
Paper Absorbed Moisture and Became Limp
701
Paper Delivery Problem
701
Sheets Are Curled or Wavy
701
Fusing Unit Separation Plate Accordion Jams
703
J032 (Thin Paper)
705
Messages Reporting Paper Misfeeds
705
Colored Paper Is Loaded in the Paper Tray
706
J049 (Skew)
706
Leading Edge Correction:1204-03
706
The Paper Size, Orientation, and Type Are Not Specified Correctly
706
Correction Level Setting Tray
707
Envelopes Are Loaded.
707
J050 (Paper Registration)
707
The Skew Detection Level Is too High
707
Shift Tray Full Is Disabled
708
The Side Fences in the Paper Tray Are too Far Apart
708
J080 (Paper Slippage)
709
J082 (Thick Paper)
709
Double Feeding Has Occurred
710
Is the Paper Registered as a Custom Paper?
710
J099 (Double Feed)
710
The Edges of the Sheets Are Rough
711
Jams with Coated Paper Larger than A4
712
Paper Jams in the Main Machine
712
If Using Paper of Paper Weights 1 to 4
714
If Using Paper of Paper Weights 5 to 7
714
Paper Skew
714
The Paper Buckle Amount Is Not Specified Correctly
714
Increase the Skew Detection Level
715
Skew Detection Level Is too Low
715
False Paper Skew Detection
716
Paper Skew with Vacuum Feed LCIT
716
Skew (Paper with Low Stiffness)
716
Double Feeding
718
Paper Is Not Fanned Sufficiently
718
Pickup Assist Function May Cause Double Feeding (A3 LCT Only)
718
There Is Paper Dust on the Paper Feed Roller
718
False Double Feed Detection
719
The Double Feed Sensor Is Dirty
719
When Not Using as a Custom Paper
719
When Using as a Custom Paper
719
Have You Fanned the Paper to Remove Static Cling?
720
Paper Fails to Feed: Common Problems
720
Special or Coated Paper Is Used
720
The Side Fences in the Paper Tray Are too Close Together
720
Retry Paper Feed Function
721
Loss of Friction on Roller Surfaces
722
Paper Fails to Feed: Worn Rollers
722
Main Machine
723
A4 Lct/ A3 Lct
724
After Roller Replacement
725
Image out of Position
727
Paper Feed Problems Affecting Image Quality
727
Adjust the Image Scaling
728
Image Scaling Error on Side 1 of the Paper
728
Image Scaling Error on Side 2 of the Paper
729
Paper Edges Dirty 1 (Exit Rollers)
730
Paper Edges Dirty 2 (Brushes)
730
Images Scratched, Streaked, Creased
732
Paper Edges Dirty 3 (Drum Speed)
732
Decurling Causes Scratches, Streaks, or Creases
733
If Scratches or Streaks Appear on Side 1 of the Paper
733
If Scratches or Streaks Appear on Side 2 of the Paper
733
If Scratches, Streaks, or Creases Appear on Side 1 of the Paper
734
Leading or Trailing Edge Margin too Wide
734
Adjust the Leading/Trailing Edge Margins
735
Excessive Paper Curl
735
Output Sheets Are Curled Greatly
736
Flowchart for a Folded Corner Correction
740
Available Paper Types
741
Jam 49, Jam 50
741
CIS LED Light Intensity
742
Other Solutions
742
Cleaning the Paper Feed Path
743
Cleaning Paper Trays 1-3
744
Cleaning the Paper Feed Path for Paper Trays 1-3
745
Cleaning the Paper Feed Path in the Drawer
747
Cleaning the LCT A3 Paper Feed Path
758
Cleaning the LCT A4 Paper Feed Path
759
Cleaning the Multi Bypass Tray Paper Feed Path
760
Cleaning the Cover Interposer Tray
761
Cleaning the Paper Feed Rollers
761
Cleaning the Guide Plate
763
Cleaning the Side Fence/Front Guide
763
Cleaning the Paper Feed Unit of the Vacuum Feed LCIT (RT5120)
764
Paper Feed Belt Unit
764
Cleaning the Bridge Unit
767
Cleaning Finisher SR5110/ Booklet Finisher SR5120
769
Places Where Rollers Tend to be Dirty
769
Cleaning Rollers and Guide Plates
770
Cleaning the Rollers
770
Cleaning the Guide Plates
771
Cleaning the Fold Roller of the Saddle Stitch Unit
777
Cleaning Finisher SR5090/ Booklet Finisher SR5100
778
Finisher SR5110/ Booklet Finisher SR5120
786
Trailing Edge of Stapled Sheets Close to Paper Exit
786
Troubleshooting for Peripheral Units
786
Leading Edge Is Curled, or J107/109 Occurs Due to Curling
787
Paper of Thickness 0 Is Curled When Delivered
788
Center Part of the Flap Is Remains Inside
789
Pointed Flap Envelopes Not Stacked in Correct Order
789
Attaching the Z-Fold Support Tray
790
Non-Carbon Paper (Thickness 0/1) Are Not Stacked Properly
791
Saddled Stitched Sheets Are Dirty
793
Torn Punch Holes
793
Delivered Sheets Are Not Stacked Properly
794
Finisher SR5090/ Booklet Finisher SR5100
794
If There Are too Many Stacked Sheets
794
Large Paper Not Stacked Properly
795
One Sheet Pushing out Another
795
Sheet Bending
795
Paper Deflection
796
Sheets Are Curled Upward
796
There Is Airflow in the Room
796
One Sheet Pushing out Another or Sheets Becoming Crimped
797
Trailing Edge of Stapled Sheets Close to the Paper Exit
797
Side-To-Side Registration Error (Finisher Registration Adjustment)
798
If the Paper Shifted Towards the Front
799
If the Paper Shifted Towards the Rear
799
Paper Width Cannot be Aligned Properly
800
Stapling Misalignment of some Sheets or Last Sheet
800
Cancel Pre-Stack Operation in Staple Mode
802
First and Second Sheets Cannot be Aligned
802
Is It Possible to Disable Back-Curl Correction?
803
Remove the Anti-Static Brush. Is the Problem Resolved?
803
Streaks Appear 4 MM Apart on the Leading Edge of the Stacked Paper
803
Folding Deviation
805
Folding Deviation Example of L2 for Z-Fold
805
Multi-Folding Unit
805
Poor Folding
805
How to Adjust the Folding Deviation
809
Folds Dirty by Multi-Sheet Folding
810
Edges of Letter Fold Bent
811
When Letter Folding Is Applied to Multiple Sheets
812
Z-Folding Is Not Performed Correctly
812
Folded Sheets Are Not Stacked Properly
813
Matte Paper Scratched During Folding
814
Frequent Double Feeds, Failure to Feed
816
Measuring the Amount of Curl
816
Paper Curl
816
Vacuum Feed LCIT
816
Acceptable Curl Range
817
Correcting Curl
817
Double-Feeding (J099, J424, J425, J439, J440)
819
Cleaning the Paper Feed Belt
820
Failure to Feed (J394, J395, J409, J410)
820
Excessive Shift or Skew, Image Skew on Paper
823
No Feeding
823
Attaching the Small Tab Sheet Holder (Thick Paper with Narrow Width)
824
Stack Remains up
824
Application Range
825
Attaching the Tab Holder
826
Shift Over, over Skew, Image Skew
826
Adjusting Tray Side-To-Side Registration
827
Correcting Skew
830
If One Vacuum Feed LCIT Is Installed
830
If Two Vacuum Feed Lcits Are Installed
830
Skew Correction Method
830
Image Skewed to the Front
831
Image Skewed to the Rear
832
Delivered Sheets Are Severely Curled
833
High Capacity Stacker
833
Using Coated Paper?
835
Using the Decurl Option
835
Convex Curl with Plain Paper?
836
Convex Curl Within Specification?
836
Print the Image. Problem Solved?
836
Delivered Sheets Are Not Aligned (Stacker Tray)
837
If the Decurl Unit Is Not Used
838
If the Decurl Unit Is Used
839
Using Thick Paper?
839
Delivered Sheets Are Not Aligned (Paper Thickness 1 or Less)
840
How the Problem Occurs
840
Registration Adjustment
842
Registration, Skew Adjustment
842
Manual Skew Correction
844
Premature Shift Tray Full Detection
845
Marks Left by the Paper Holder
847
Screws on Cart's Handle Become Loose
848
Cover Interposer Tray
850
Frequent Double Feeds/ Failure to Feed
850
How to Separate Sheets of Paper before Feeding
851
Improving Throughput
854
Improving Throughput with Coated Paper
854
Other Information
854
Reducing Wait Time before Printing
854
Reducing Wait Time with Mixed Paper Sizes 1
855
Reducing Wait Time for Mixed Paper Sizes 2
856
Reducing Low Power Mode Recovery Time
857
Printing Operation after Jammed Paper Is Retracted
859
The Message about Left Paper Is Shown
859
To Change the Printing Operation after Jammed Paper Is Retracted
859
ITB Centering: SC471-03, -04, -05, -06 (ITB Position Errors)
860
Make Sure the Machine Is Level
860
Other Problems
860
Preparation for Lubricant Application Mode
860
Steering Plate Adjustments
863
Right Steering Plate Adjustment
864
Left Steering Plate Adjustment
866
Countermeasures for Other SC Codes
867
Left Steering Plate Scale Adjustment Example
867
Belt Centering Roller HP Error
868
ITB Position Error 1
868
ITB Position Error 2
868
Ground Plates that Require Checks
870
SC325, SC395 Grounding Faults
870
No. 2 Ground Plate Covers
871
No. 3 PCU Slide Rail Stopper
872
No. 4 Ground Plate Stays
872
How to Check Ground Resistance with a Multi-Meter
873
PCDU Preventive Maintenance: Important Notes
875
Does the Pattern Appear Blurred?
876
SC401 Development Gamma Low Error
876
Calculate the Average Coverage and Average P/J
877
Has the Blurred Image Problem Been Resolved?
877
Tray 1 Does Not Close Completely.
878
False Drum Lubricant Near-End Alert
879
Clear PM Counters
880
How to Use These Maps
881
Paper Transport Roller/Rib Maps
881
Overall Layout
882
Paper Transport Units
882
General Layout
884
Registration Unit
884
PTR Unit
887
ITB Cleaning Unit (Bottom)
888
Fusing Unit
891
Fusing Exit Guide Plate (Lower)
892
Fusing Exit Guide Plate (Upper)
893
Exit Entrance Guide Plate (Upper)
894
Invert/Exit Unit
894
Decurl Unit
899
Multi Bypass Tray
899
Paper Feed Unit: Roller Position
899
Lower Guide Plate
900
Transport Unit: Rib and Hole Positions
900
Upper Guide Plate
900
Lct A4
902
Roller Position (Paper Feed Unit)
902
Roller Position (Vertical Transport Unit)
903
Rib Position (Vertical Transport Unit)
904
Lct A3
906
Paper Feed Unit Roller: Right View
906
Transport Path: General Layout
906
Paper Transport: Movable Guide Ribs and Rollers: Left View
908
Paper Transport: Tray 5 Transport Fixed Guide Ribs: Left View
909
Paper Transport: Fixed Guide Plate Ribs: Right View
910
Vertical Transport Unit: Rib and Roller Positions
910
Paper Feed Tray
914
Vertical Transport: Left
914
Vertical Transport: Right
915
Upper Side
916
Vacuum Feed LCIT (Bridge Unit)
916
Shift Transport Path Layout (Upper Tray)
917
Upper Tray: Upper Tray Exit
917
Rib Position
918
Upper Tray: Upper Tray Transport
918
Upper Tray: Upper Tray Transport to Horizontal Transport
919
Upper Tray: Registration to Entrance
920
Shift Transport Path Layout (Lower Tray)
921
Lower Tray: Shift Transport to Horizontal Transport
922
Lower Tray: Shift Tray Exit to Shift Transport
922
Lower Tray: Registration to Entrance
923
Shift Transport Path Layout (Turn Transport to Stapler)
924
Turn Transport to Stapler: Turn Exit to Pre-Stack Roller
924
Pre-Stack Separation Gate
928
Turn Transport to Stapler: Turn Transport to Horizontal Transport
928
Shift Transport Path Layout (End Stitching)
929
End Stitching: Stapler Entrance to Stack Junction Gate
930
End Stitching: Turn Transport to Horizontal Transport
930
End Stitching: Pre-Stack to Stapler Entrance
932
Junction Gate Rib (Stack Junction Gate)
932
Booklet: Booklet Entrance
933
Shift Transport Path Layout (Booklet)
933
Transport Path Layout (Roller Position)
935
Horizontal Transport Roller/[C] Proof Transport Roller
936
Proof Tray Exit Roller
936
Transport Roller
936
Upper Tray Roller
936
Booklet Shift Roller
937
Fold Exit Roller
937
Fold Roller
937
Paper Exit Guide Plate
938
Proof Tray Guide Plate
938
Transport Path Layout (Rib Position)
938
Booklet Lower Guide Plate
939
Booklet Upper Guide Plate
939
Transport Guide Plate Rib Position
941
Transport Guide Plate Rib Position (Direct Transport)
948
Transport Path: Roller Position
956
Horizontal Transport Path
957
Drive Roller
958
Horizontal Transport Path: Roller Position
961
Ring Binder
961
Transport Path
961
Horizontal Transport Path: Bead Position
962
Other manuals for Ricoh Pro 8310
Operating Instructions
188 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Ricoh Pro 8310 and is the answer not in the manual?
Ask a question
Ricoh Pro 8310 Specifications
General
Brand
Ricoh
Model
Pro 8310
Category
All in One Printer
Language
English
Related product manuals
Ricoh Pro 8310S
188 pages
Ricoh Pro 8320
188 pages
Ricoh Pro 8300S
188 pages
Ricoh Pro 8320S
188 pages
Ricoh 8025e
290 pages
Ricoh Pro 8120
238 pages
Ricoh Pro 8110
238 pages
Ricoh PRO 8100
61 pages
Ricoh 80 Series
84 pages
Ricoh Pro 8100S
238 pages
Ricoh Aficio MP 8001
1351 pages
Printer/Scanner Unit Type 8000
907 pages
Need help?
General
To Next Page
