Ricoh SP 5200S User Manual

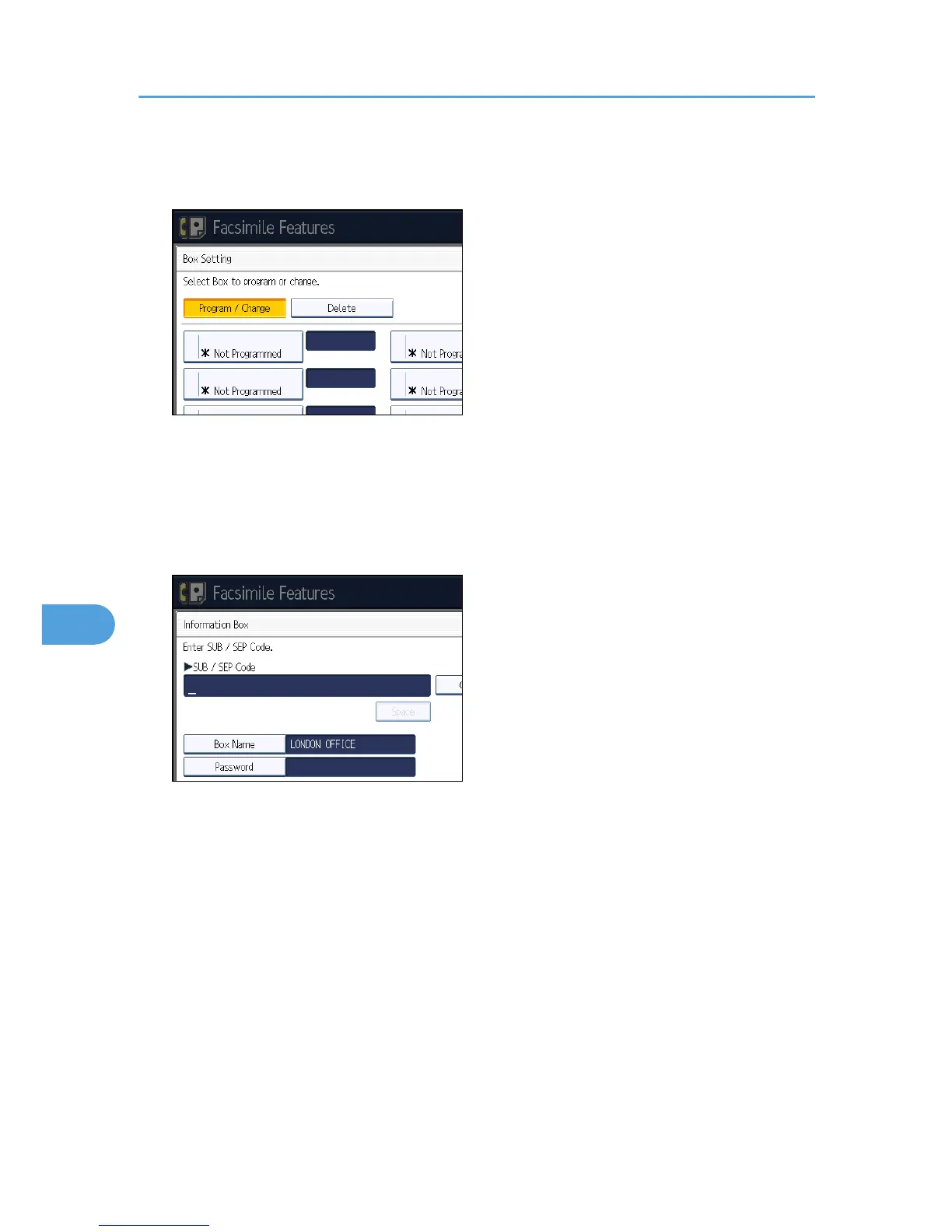

5. Select the box to program.
When programming a new box, press [Not Programmed].
To change a box already programmed, press it, and then proceed to step 8. If a password is
programmed, enter the password, press [OK], and then proceed to step 8.
6. Press [Information Box].
7. Enter a box name, and then press [OK].
8. Enter the SEP Code.
To change the SEP Code, press [Clear], and then try again. To change the box name, press [Box
Name], and then repeat the procedure from step 7.
9. Press [Password].
If you do not want to program a password, proceed to step 12.
7. Facsimile Features
404
7

Ricoh SP 5200S Specifications

General

Print Technology	Laser
Print Resolution	1200 x 600 dpi
Duplex Printing	Yes
ADF Capacity	50 sheets
Functions	Print, Copy, Scan, Fax
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Scanner Type	Flatbed, ADF
Connectivity	USB 2.0, Ethernet
Network Connectivity	Ethernet
Print Speed	Up to 47 ppm
