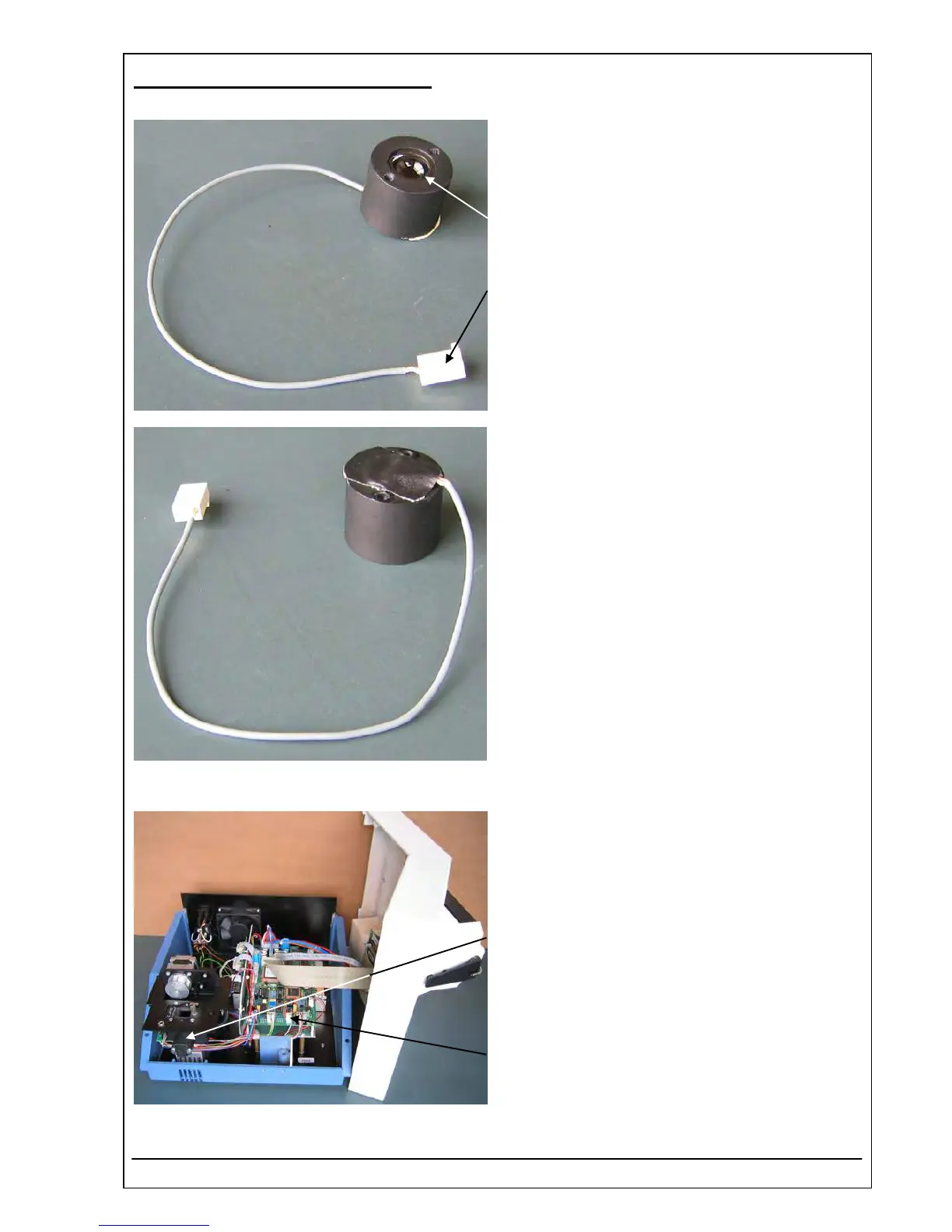

4.13 UNIT PHOTODIODE REF 5010-056
Function Description
The unit photodiode contains a silicon photodiode, a
lense, a lense holder and a cable with plug.
Lense
Plug P7
The photodiode is covered by a black label.
Location
The photodiode is situated at the optical unit. The
plug P7 is connected with the socket ST7 on the
mother board RR-120.
Unit photodiode
Plug P7
RIELE BERLIN Photometer 5010 v5+ 4.13.1 10.05.2006
