Robopac Ecoplat Base - Technical Data (Ecoplat TP FRD - TP RS - TP PPS)

Chapter 2
TECHNICAL INFORMATIONS
- 12 -
English
C224153200.fmIDM

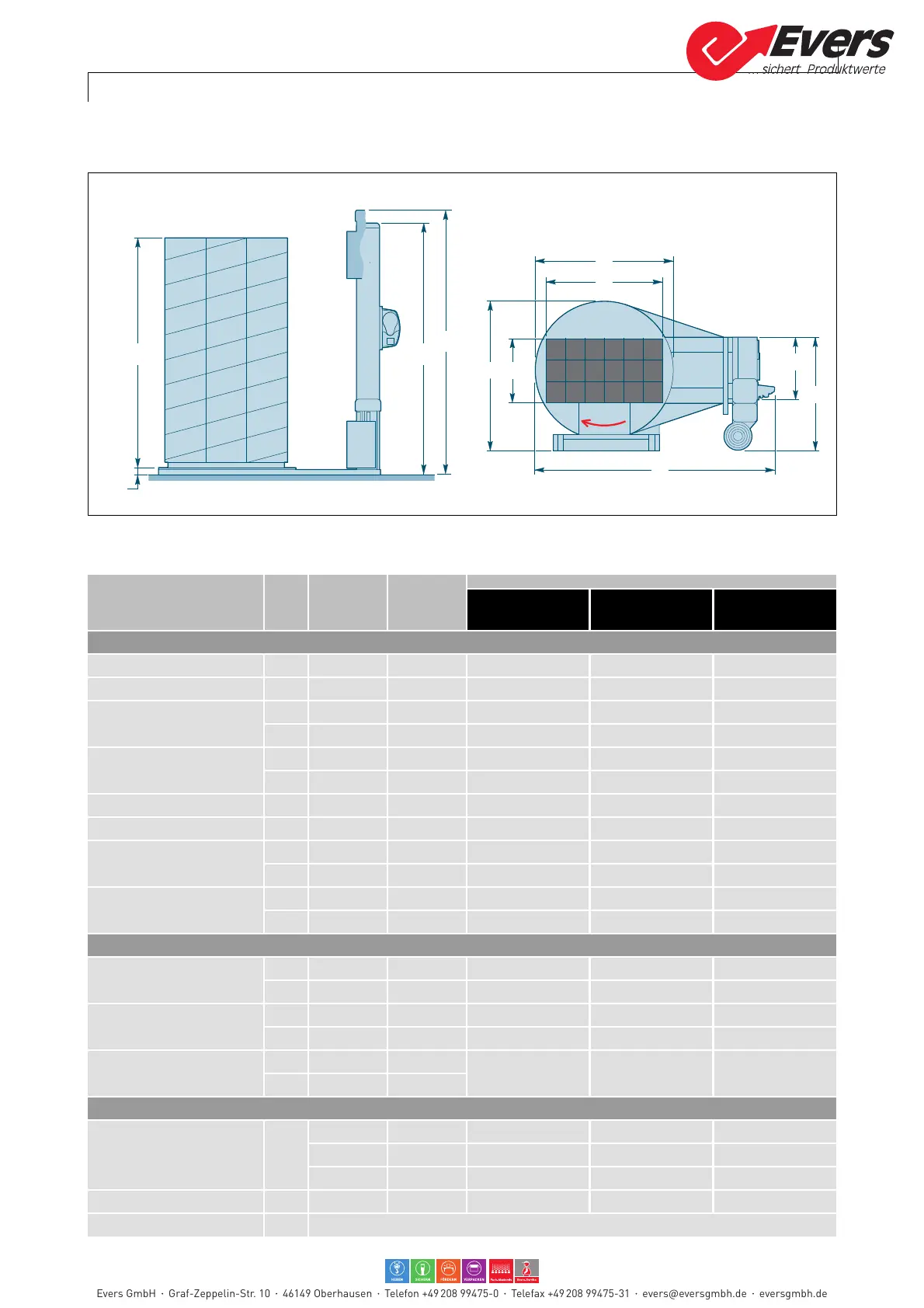

2.8. TECHNICAL DATA (ECOPLAT TP FRD - TP RS - TP PPS)
L
H
F
E
B
A
D
N
C
M
G
IDM-24153205000.pdf
Table 2.4: Technical machine specifications (Ecoplat TP FRD - TP RS - TP PPS)
Description
Unit of
meas-
ure
Ø C (L)
Model
Ecoplat TP FRD
Ecoplat TP FRD (for
net)
Ecoplat TP RS Ecoplat TP PPS
Overalll dimensions
(A) mm 1500 / 1650 2200 / 2400 1185 1280 1280
(B) mm 1500 / 1650 2200 / 2400 720 720 720
(D)
mm 1500 2200 / 2400 2530 2530 2530
mm 1650 2200 / 2400 2680 2680 2680
(E)
mm 1500 2200 / 2400 1585 1585 1585
mm 1650 2200 / 2400 1660 1660 1660
(F) (Standard version) mm 1500 2200 / 2400 73.5 73.5 73.5
(F) (Optional version) mm 1650 2200 / 2400 77.5 77.5 77.5
(G)
mm 1500 / 1650 2200 2580 2580 2580
mm 1500 / 1650 2400 2780 2780 2780
(H)
mm 1500 / 1650 2200 2550/2670 2760 2845
mm 1500 / 1650 2400 2750/2870 2960 3045
Dimensions of load
(L)
mm 1500 / 1650 2200 2200 2200 2200
mm 1500 / 1650 2400 2400 2400 2400
(M)
mm 1500 2200 / 2400 800 800 800
mm 1650 2200 / 2400 1000 1000 1000
(N)
mm 1500 2200 / 2400
1200 1200 1200
mm 1650 2200 / 2400
Technical specifications
Voltage Volt
220/240 1Ph 220/240 1Ph 220/240 1Ph
220/240 3Ph 220/240 3Ph 220/240 3Ph
380/415 3Ph+N 380/415 3Ph+N 380/415 3Ph+N
Electrical frequency Hz 50/60 50/60 50/60
Installed power Kw See "Table 2.2: Installed power (Ecoplat Base - FRD - RS - PPS)"
