Chapter 4
INFORMATION ON HANDLING AND INSTALLATION
- 22 -
English
C424153200.fmIDM

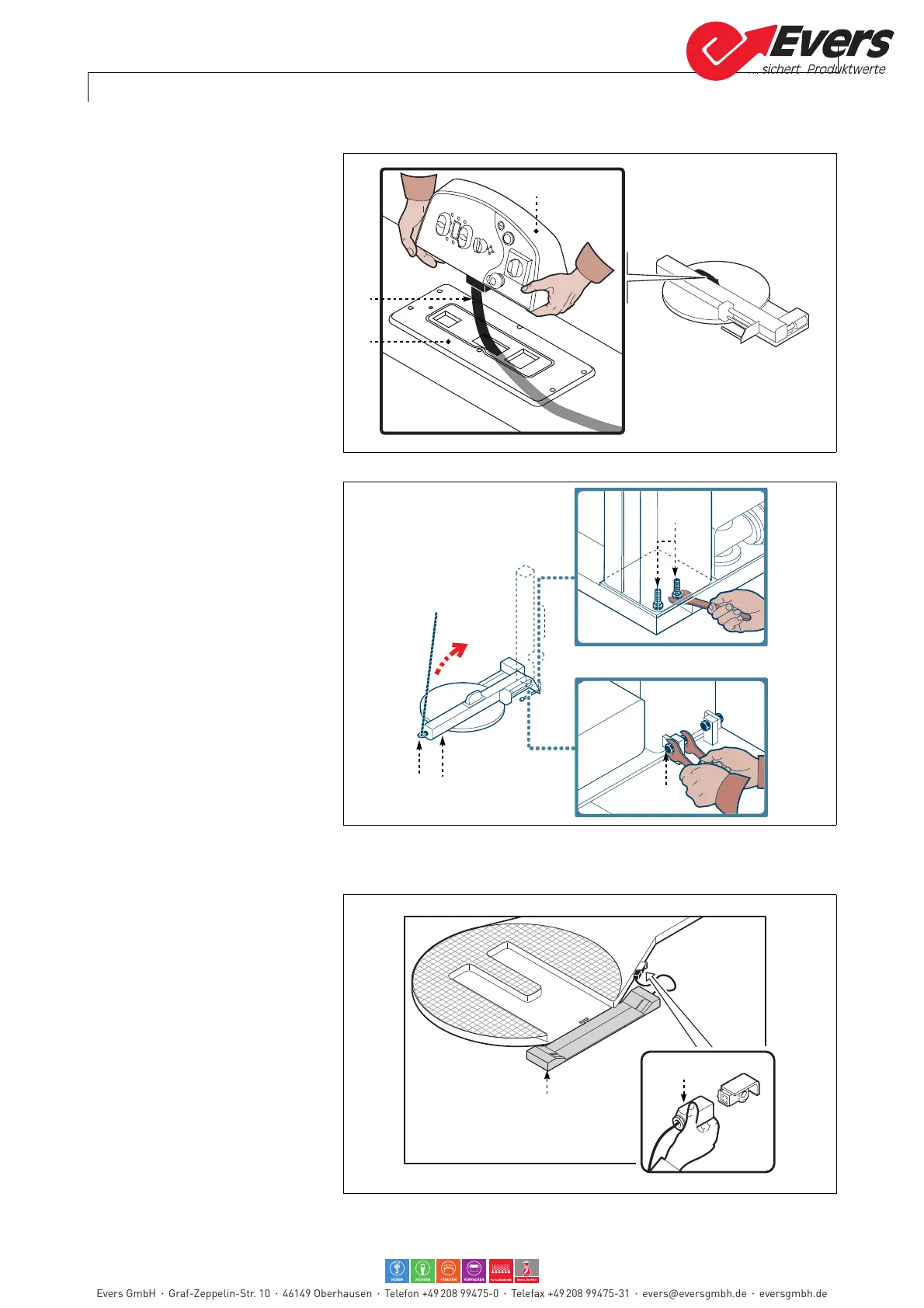

4.5. INSTALLATION OF DISMOUNTED PARTS
For this operation, proceed in the
following way.
1 -Put electric cables (A) inside
the opening of plate (L) fas-
tened to the sliding shaft.
2- Install control panel (C) on
plate (L).
3- Connect lifting device to eye-
bolt (D) and lift column (B).
4- Secure the sliding mast to the
machine body with the screws
(E).
5- Tighten the hinge screws (F).
6- Remove lifting device once op-
eration is terminated.
Loading/unloading ramp assembly
7- Assemble the platform loading/
unloading ramp (G) and con-
nect the supply connector (H).
(Only for machines model
"Ecoplat TP FRD - Ecoplat TP
RS - Ecoplat TP PPS")
