Chapter 9
REPLACEMENT INFORMATION 2
9.1. INSTRUCTIONS FOR PART REPLACEMENTS AND/OR
FORBIDDEN OPERATIONS
The chapter refers only the operations that can be performed directly by the op-
erator.
If actions or operations not described in the chapter are necessary, contact a
Service Centre authorised by the Manufacturer.
Before performing any replacement operation, activate all of the security devic-
es provided and evaluate the necessity to adequately inform personnel operat-
ing in the near vicinity. In particular, confine the neighbouring areas to impede
access to the devices that could, if activated, produce unexpected danger con-
ditions provoking hazards to personal safety and health. In the event deteriorat-
ed parts need replacement, only use original spare parts. The manufacturer is
not liable for damages to persons or parts caused by the use of non-original
parts and extraordinary operations that can modify safety requirements without
express authorisation. To request parts follow the indications found in the
spare parts catalogue.
9.2. REPLACING ROTATING TABLE WHEELS
For this operation, proceed in the following way.

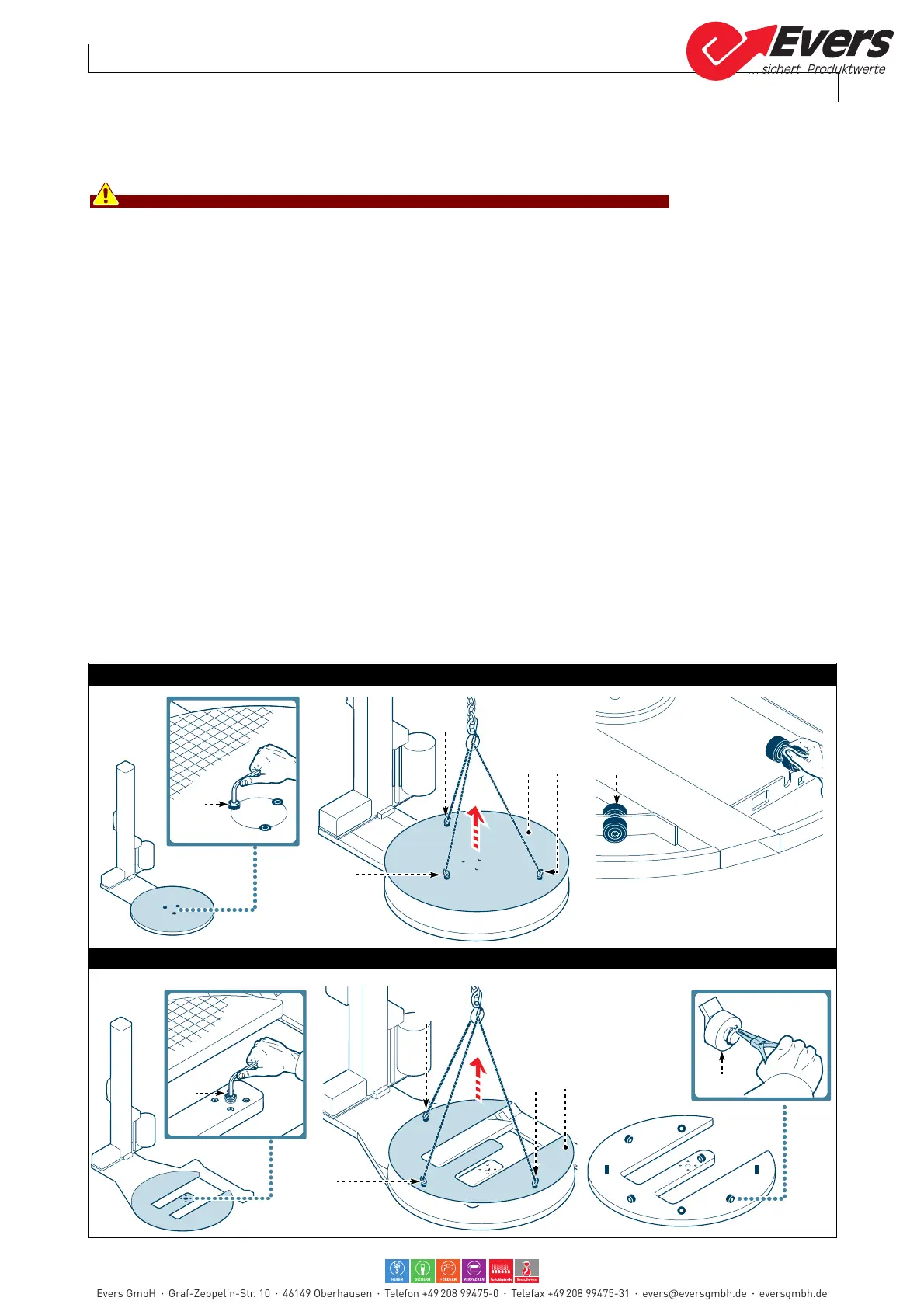

1 -Loosen the screws (A).
2- Assemble the eyebolts (B) on the rotating table (C).
3- Lift the table and place it on the floor.
B
C D
B
B
A
Ecoplat Base - Ecoplat FRD - Ecoplast RS - Ecoplat PPS
IDM-24153204200.pdf
B
C
B
A
IDM-24153204300.pdf
Ecoplat TP FRD - Ecoplast TP RS - Ecoplat TP PPS
B
D
