Robopac Ecoplat Base - Table Rotation Chain Adjustment; Reel Carriage Lifting Chain Adjustment

Chapter 5
ADJUSTMENT INFORMATION
- 27 -
English
C524153200.fmIDM

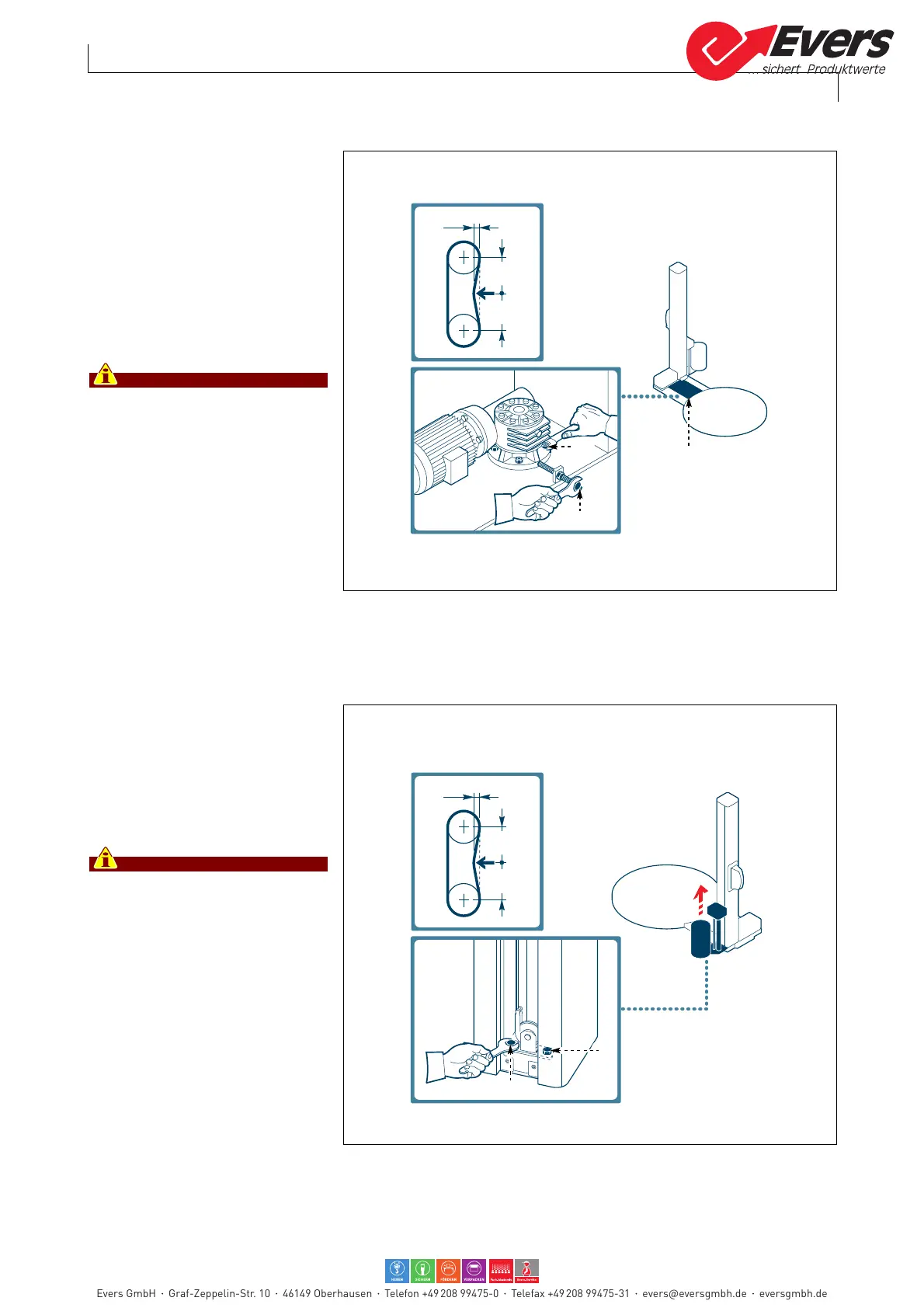

5.3. TABLE ROTATION CHAIN ADJUSTMENT
For this operation, proceed in the
following way.
1 -Remove the cover guard (A).
2- Loosen gear motor lock screws
(B).
3 - Use the register screw (C) to
adjust the chain.
4-Tighten the reducer fastening
screws (B) when finished.
Information
Refer to the figure to adjust the
tensioning. The resulting shift
(R) shall be 5÷7,5 mm.
5 - Re-assemble the guard (A).
5.4. REEL CARRIAGE LIFTING CHAIN ADJUSTMENT
For this operation, proceed in the
following way.
1 -Remove body cover.
2- Lift the carriage.
3- Use the register nuts (B) to ad-
just the chain.
Information
For correct adjustments, use the
nuts to the same degree.
Refer to the figure to adjust the
tensioning. The resulting shift
(R) shall be 10÷15 mm.
4- Reassemble body cover.
=
=
R
A
C
B
IDM-24153203700.pdf
=
=
R
B
B
IDM-24153203800.pdf
