Robopac Ecoplat Base - Rotating Table Wheel Adjustment

Chapter 5
ADJUSTMENT INFORMATION
- 28 -
English
C524153200.fmIDM

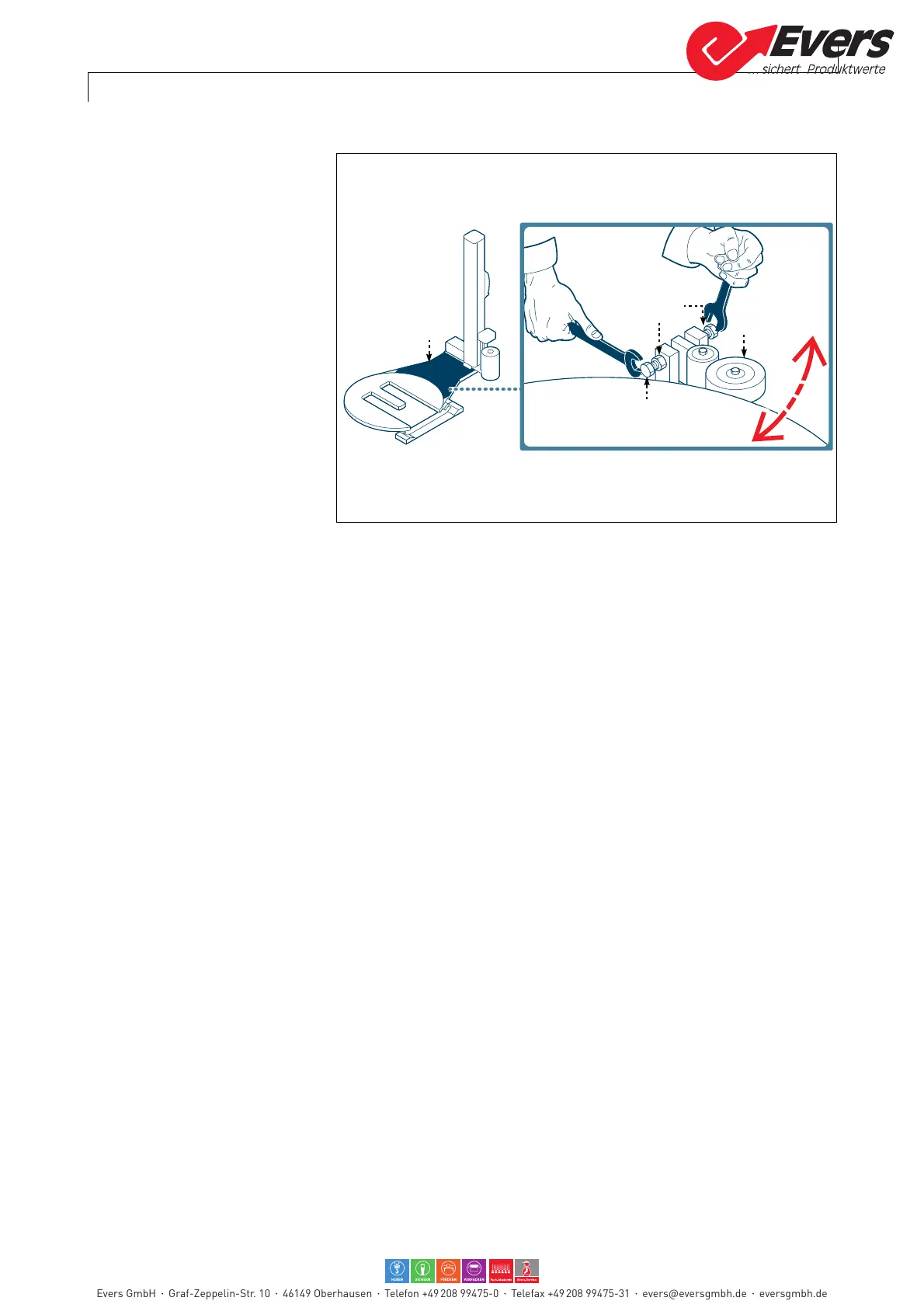

5.5. ROTATING TABLE WHEEL ADJUSTMENT
Only for machines model "Eco-
plat TP FRD - Ecoplat TP RS -
Ecoplat TP PPS"
1 -Remove the cover guard (A).
2- Loosen the fastening nuts (B).
3- Loosen the screw (E).
4- Adjust screw (D) so that wheel
(C) is pressed on rotary plate
by about 4 mm.
5- Tighten the screw (E).
6- Tighten the nuts (B).
7 - Re-assemble the guard (A).
A
D
C
IDM-24153203900.pdf
B
E
