Robopac Ecoplat Base - Fastening the Machine; Machine Foundation

Chapter 4
INFORMATION ON HANDLING AND INSTALLATION
- 23 -
English
C424153200.fmIDM

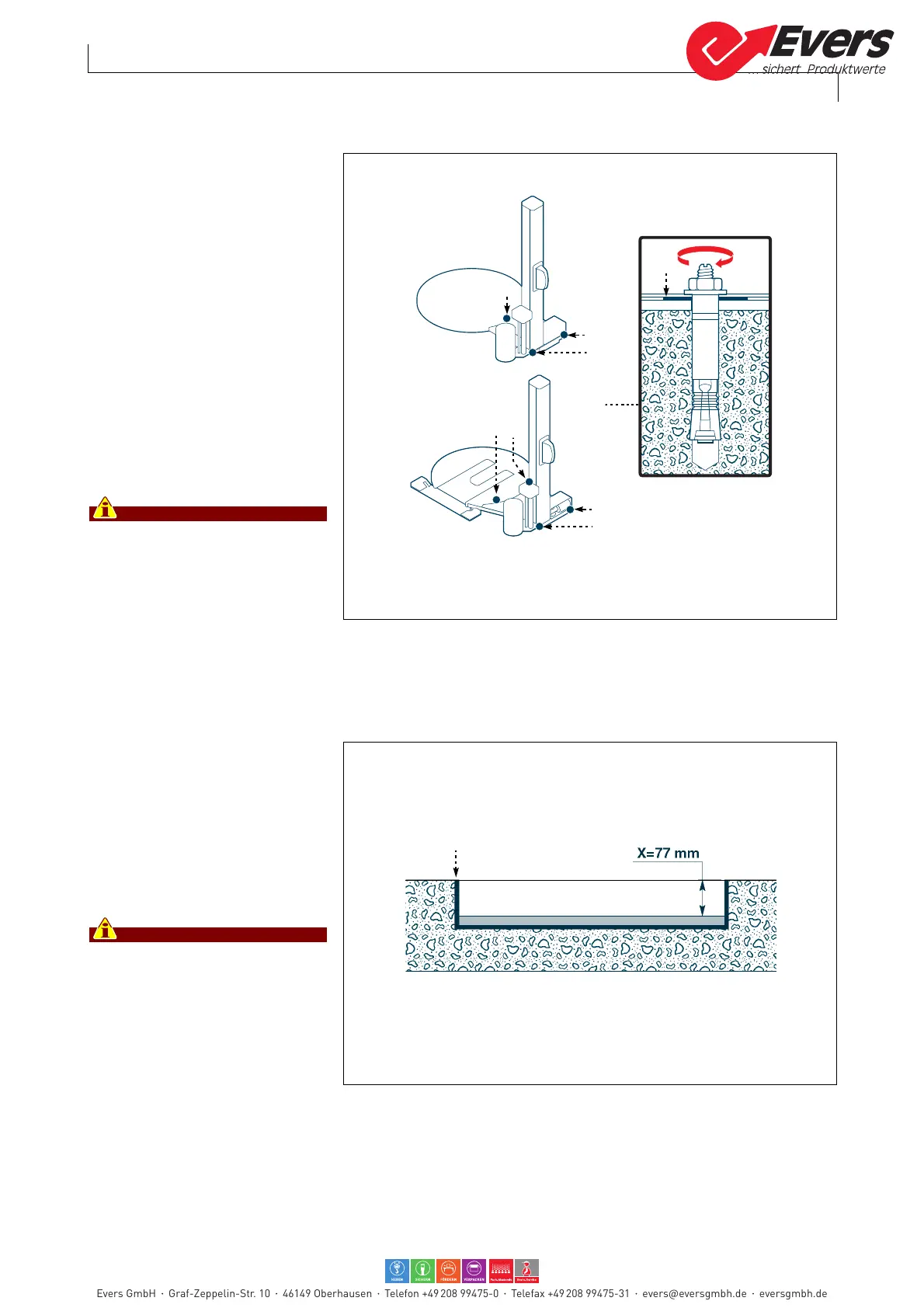

4.6. FASTENING THE MACHINE
–Upon completion of the assembly
of the units, and having checked
that the various parts are level,
square, parallel and at right an-
gles, as required, fasten the body
of the machine to the floor.
–Depending on the characteristics
of the flooring, it may be neces-
sary, before positioning the ma-
chine, to create foundations at the
points of the various support legs.
The creation of the foundations
and the fastening of the machine
are fundamental operations for
ensuring the stability and correct
functioning of the machine.
Information
If necessary, insert metal plates
(A) between the screws and the
floor.
4.7. MACHINE FOUNDATION
Create a trench in the floor for the
foundation template (C) and secure
with a layer of cement. (Only for
machines model "Ecoplat Base -
Ecoplat FRD - Ecoplat RS - Ecoplat
PPS")
Template (C) is supplied on de-
mand (OPTIONAL).
Information
The depth (X) must be equal to
the height of the machine base.
A
IDM-24153201500.pdf
*
*
*
*
*
* *
*
IDM-24128604000.tif
C
