Rockwell Automation Publication 1769-UM021I-EN-P - May 2018 129
Communicate over Networks Chapter 6

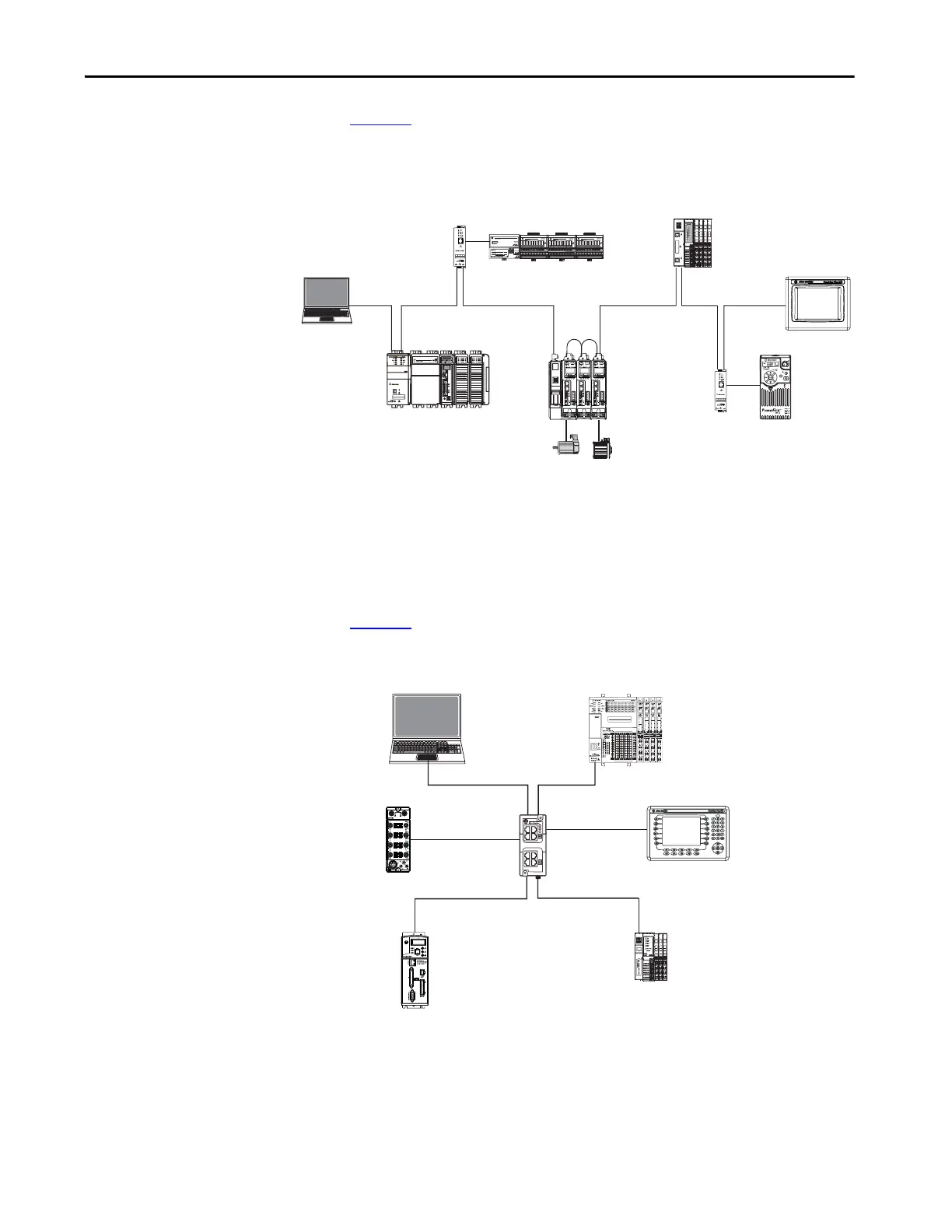

Figure 13 shows an example 1769-L33ERM control system using a linear
network topology.
Figure 13 - Example 1769-L33ERM Control System Using a Linear Network Topology
Star Network Topology
A star network topology is a traditional EtherNet/IP network that includes
multiple devices that are connected to each other via an Ethernet switch.
Figure 14
shows a 1769-L18ERM-BB1B control system using a star topology.
Figure 14 - Example1769-L18ERM-BB1B Control System Using a Star Network Topology
1 (Front)1 (Front)1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
02
0
1734-AENTR
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
Link 1
Activity/
Status
Link 2
Activity/
Status
IP ADDRESS
1734-AENTR POINT I/O
1769-L33ERM
Kinetix 5500
PanelView Plus
• PowerFlex 525
• 1783-ETAP
• 1794-AENT FLEX
• 1783-ETAP
LINK 1 LINK 2
1
2
34
56
78
ENET Address: 00:00:BC:66:0F:C7
IP Address:
1732E-IB16M12R
Kinetix 350
1734-AENTR POINT I/O
1769-L18ERM-BB1B
PanelView Plus
Stratix 6000™
1769-L18ERM-BB1B
