Rockwell Automation Allen-Bradley 1769-L24ER-QBFC1B User Manual

Rockwell Automation Publication 1769-UM021I-EN-P - May 2018 147
Use I/O Modules with CompactLogix 5370 L1 Controllers Chapter 7

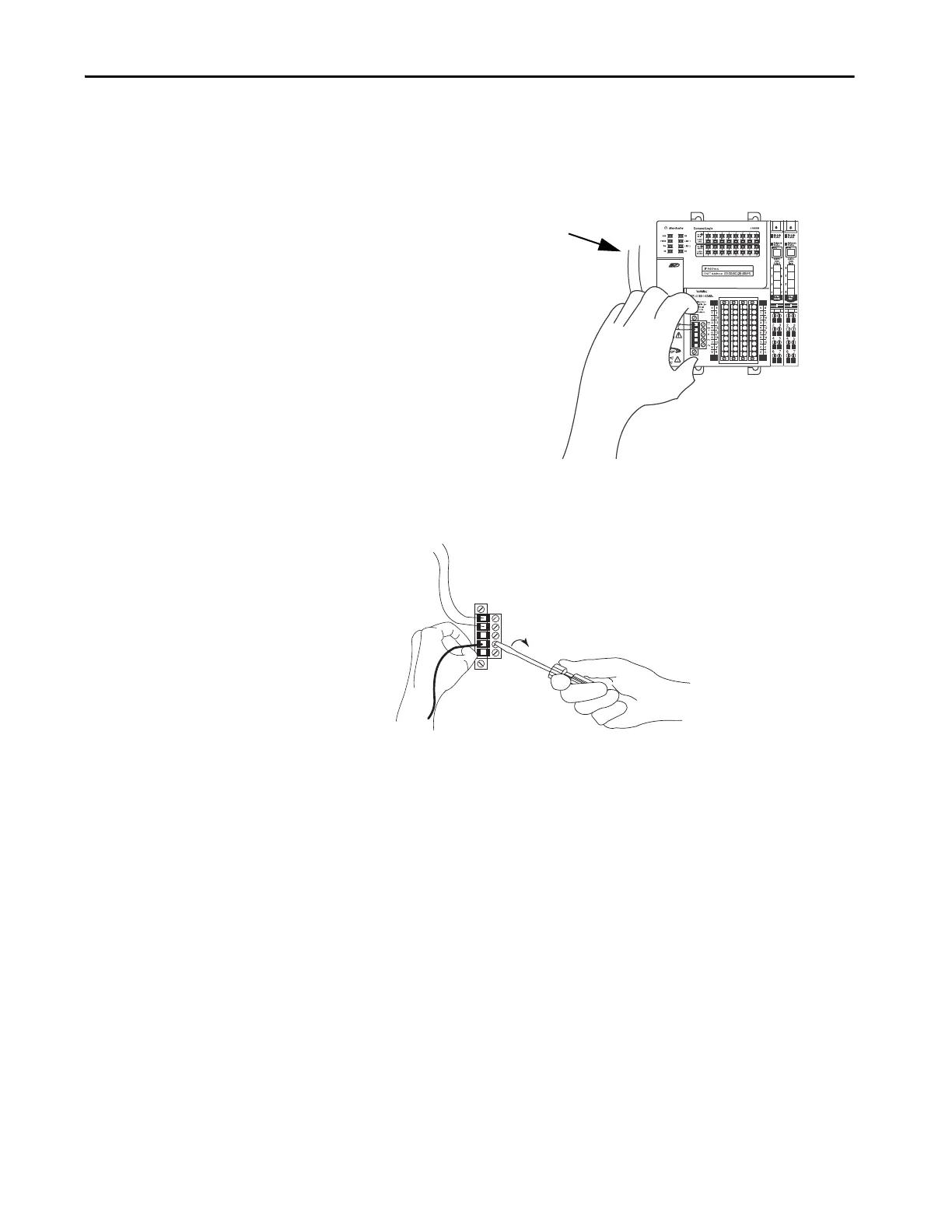

3. Loosen the screws that secure the removable connector to the
CompactLogix 5370 L1 controller and pull the connector off the
controller.
4. Connect the wire that is connected to the + terminal on the external
24V DC power source to the FP+ terminal. The FP+ terminal is the
fourth terminal from the top on the removable connector.
Wires that are connected between external
24V DC power source and VDC+ and VDC-
terminals on the removable connector.
