290 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018

Chapter 11 Develop Integrated Motion over an EtherNet/IP Network Application

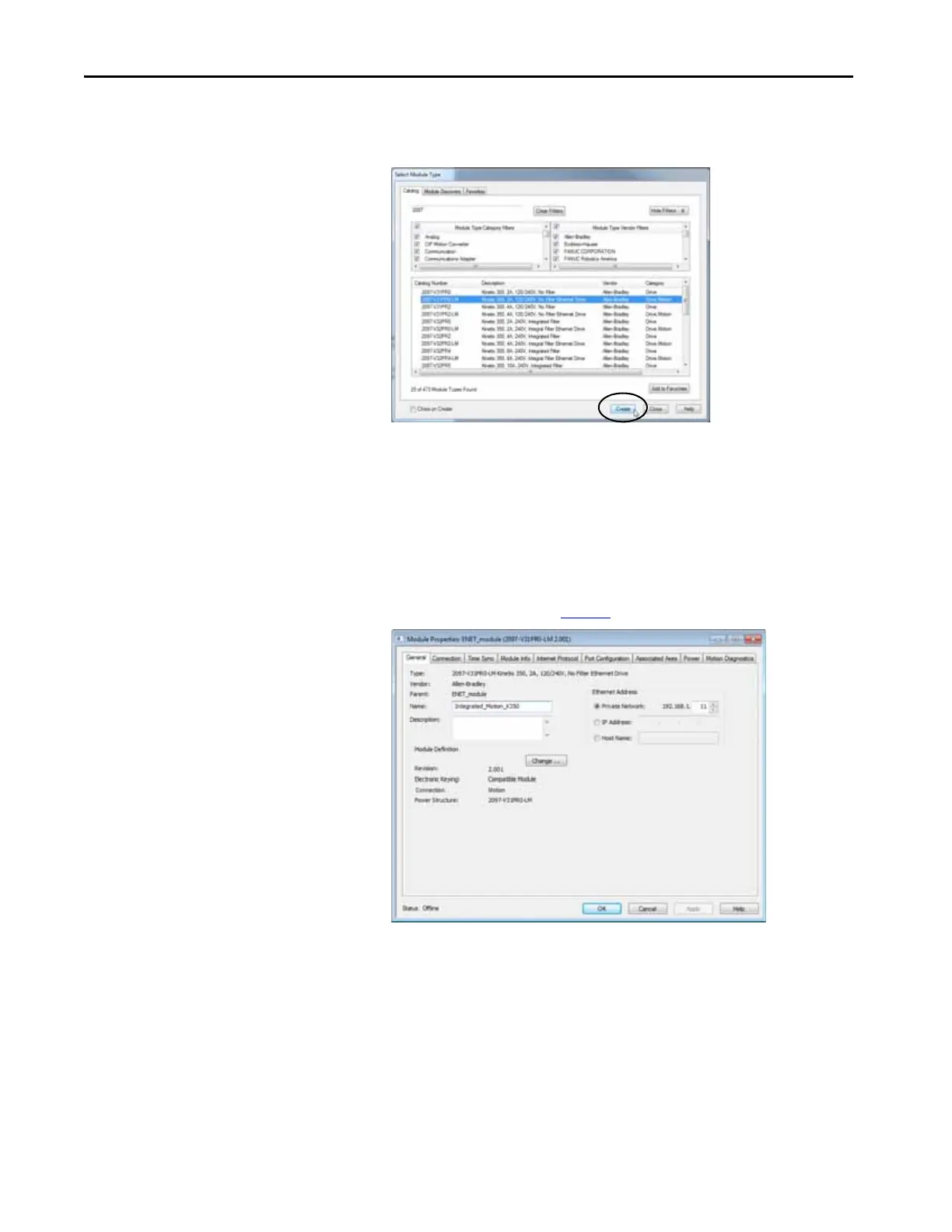

The Select Module Type dialog box appears.

2. Select the desired drive and click Create.

The New Module dialog box appears.

3. Type a name for the module.

4. Type a description, if desired.

5. Assign an EtherNet/IP address.

For information on setting the IP addresses, see the publications for each

drive type that is listed on page 11
