Rockwell Automation Publication 1769-UM021I-EN-P - May 2018 321

Connect Power to the Series A CompactLogix 5370 L1 Controllers Appendix C

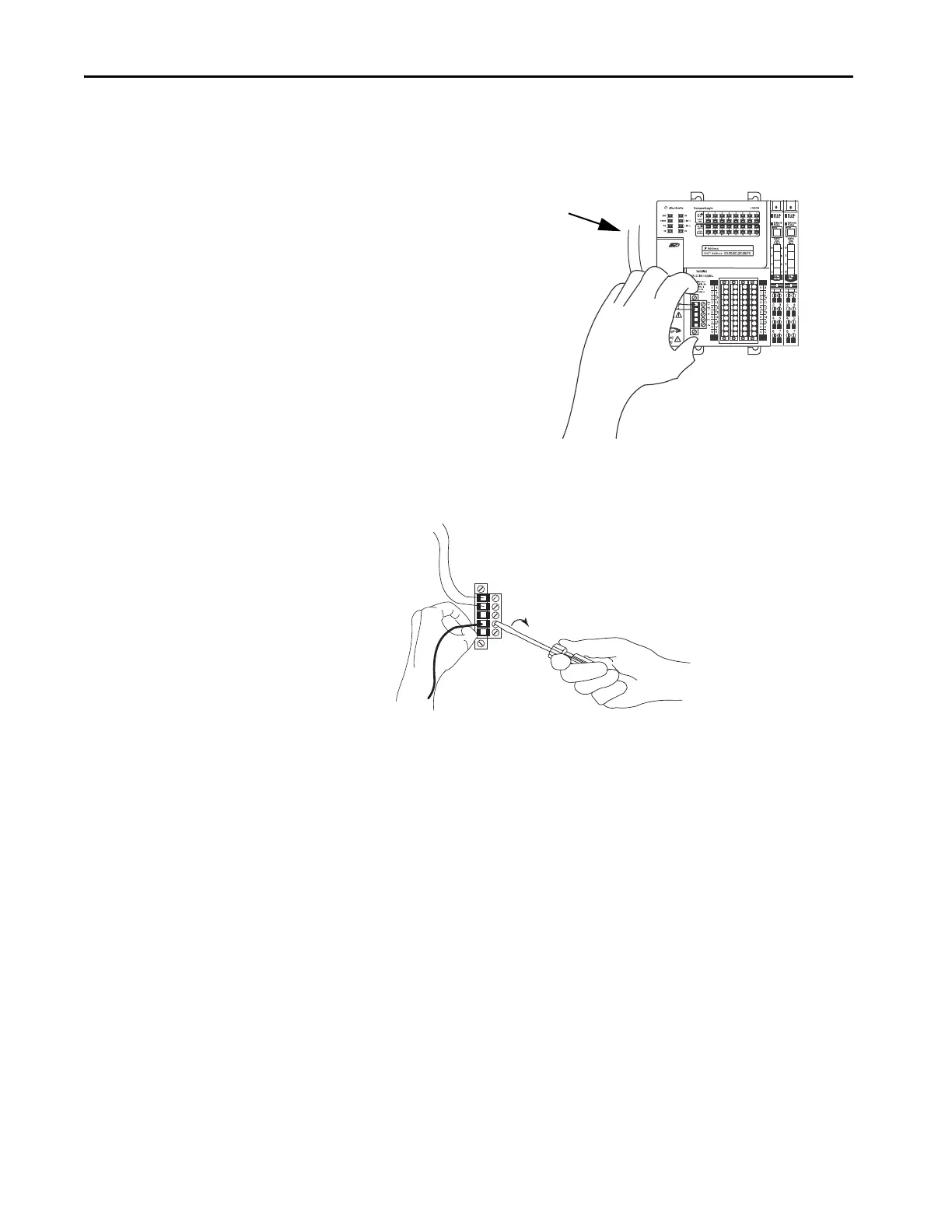

5. Pull the removable connector off of the CompactLogix 5370 L1

controller.

6. Connect the wire that is connected to the + terminal on the external

24V DC power source to the FP+ terminal. The FP+ terminal is the

fourth terminal from the top on the removable connector.

Wires connected between external 24V DC

power source and VDC+ and VDC-

terminals on the removable connector.
