322 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Appendix C Connect Power to the Series A CompactLogix 5370 L1 Controllers

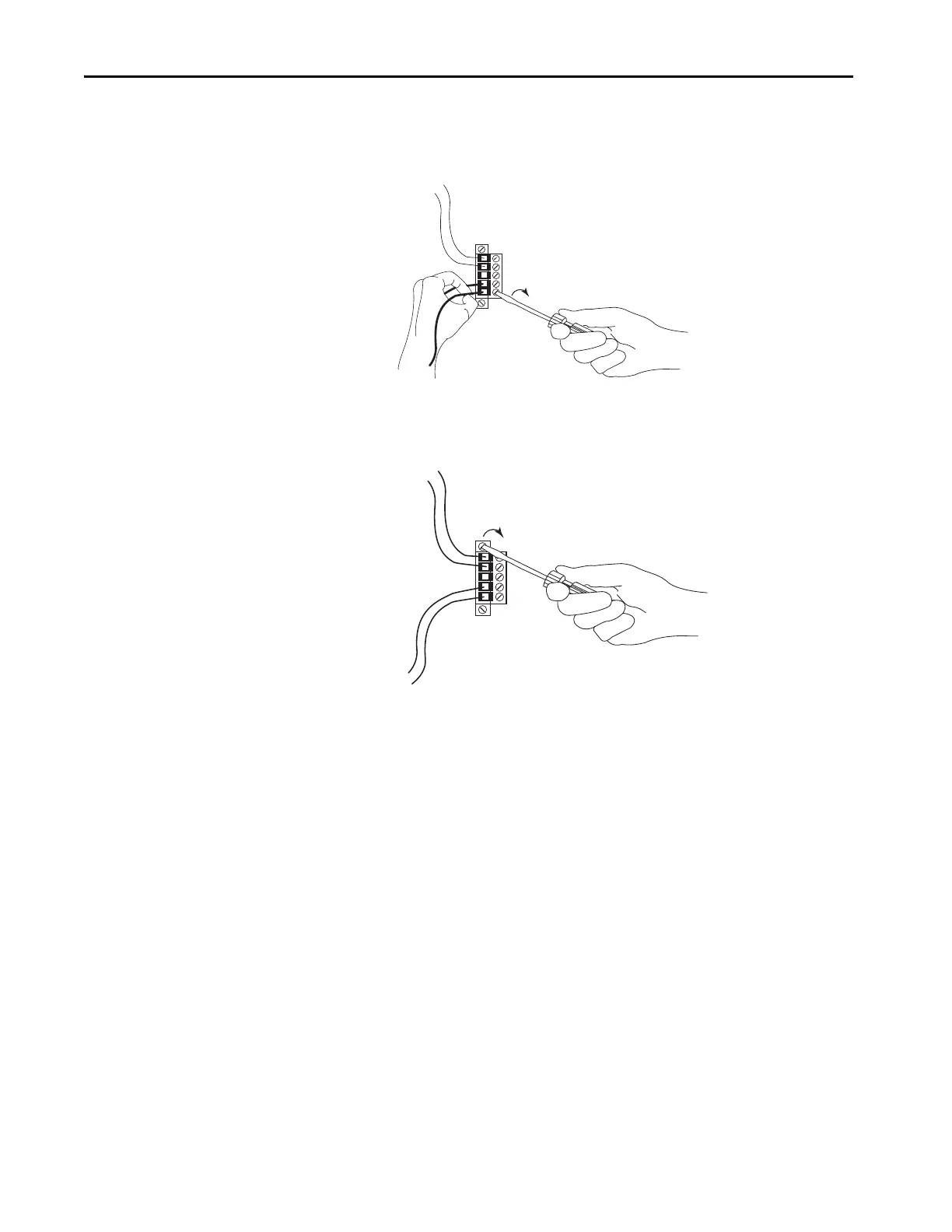

7. Connect the wire that is connected to the - terminal on the external 24V
DC power source to the FP- terminal. The FP- terminal is the fifth
terminal from the top on the removable connector.
8. Plug the removable connector into the controller.
9. Secure the removable connector in place.
10. Turn on power to the separate external 24V DC power source
connected to the VDC+ and VDC- terminals of the removable
connector.
11. Turn on power to the external 24V DC power source connected to the
FP+ and FP- terminals of the removable connector.
