Rockwell Automation Allen-Bradley 1769-L24ER-QBFC1B User Manual

Rockwell Automation Publication 1769-UM021I-EN-P - May 2018 323
Connect Power to the Series A CompactLogix 5370 L1 Controllers Appendix C

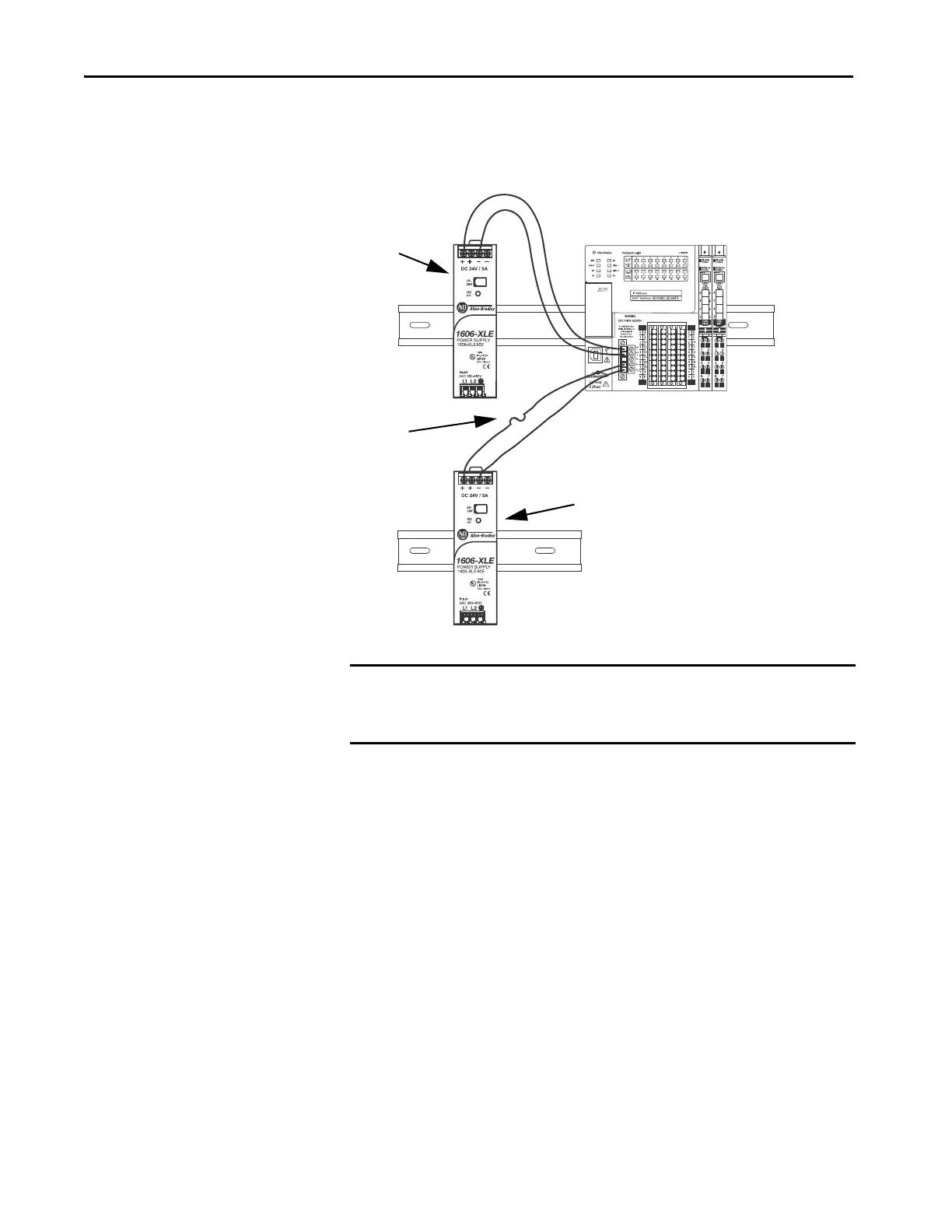

The following graphic shows separate external 24V DC power supplies
connected to the VDC+/VDC- and FP+/FP- terminals on the removable
connector, respectively.
IMPORTANT Install a user-replaceable fuse with overcurrent protection of
4…6 A @ 52.5…68.25 I
2
t in line between the incoming power and the
FP+ terminal.
IMPORTANT: No wires are
connected to the NC terminal.Fuse
FP Power Supply
VDC Power Supply
