Chapter 1 Compact 5000 I/O Serial Module Overview
Local I/O or Remote
I/O Modules
You can use Compact 5000 I/O modules as local or remote
I/O modules, with some restrictions that are based on the module and controller
type. Compatibility requirements apply and are described in Controller and
Software Compatibility on page 10.
Local I/O Modules
When Compact 5000 I/O Serial module resides in the same system as the
controller, it is a local I/O module. Local I/O modules are installed to the right of
the controller and exchange data with the controller over the system backplane.

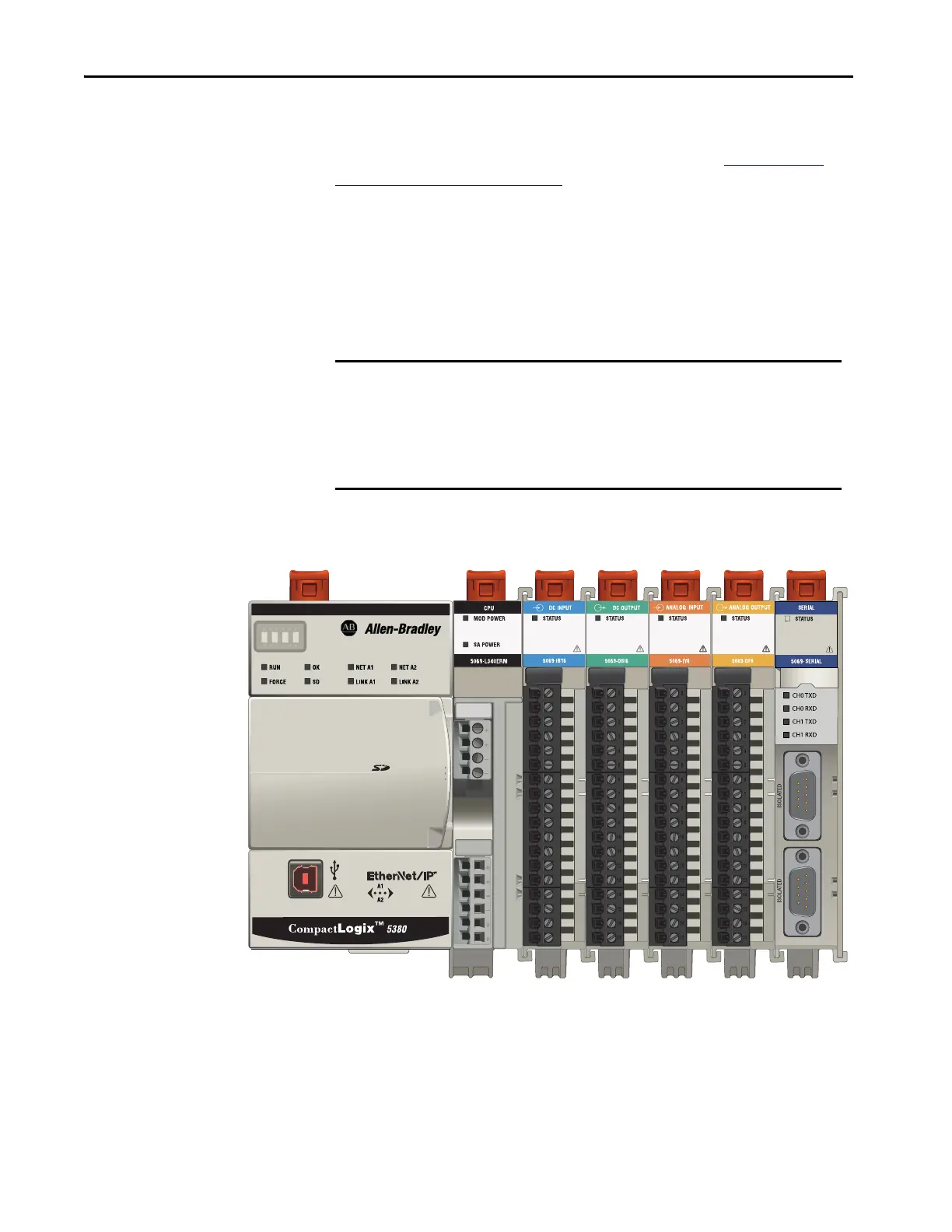

Figure 2 - Compact 5000 I/O Serial Module as Local I/O Module
IMPORTANT Compact 5000 I/O Serial modules can function as local I/O modules in
the following:
• CompactLogix 5380 control systems
• Compact GuardLogix 5380 control systems
• CompactLogix 5480 control systems
CompactLogix 5380 Controller
Local Compact 5000 I/O Standard Modules
To Next Page
