Compact 5000 I/O Serial Module Overview Chapter 1
Remote I/O Module
When a Compact 5000 I/O Serial module resides in a separate location from the
controller, it is a remote I/O module. Remote Compact 5000 I/O modules are
accessible over an EtherNet/IP network via a Compact 5000 EtherNet/IP
adapter.
Remote Compact 5000 I/O modules are installed to the right of the adapter and
exchange data across the remote system backplane. The data is exchanged with
the controller over the EtherNet/IP network.

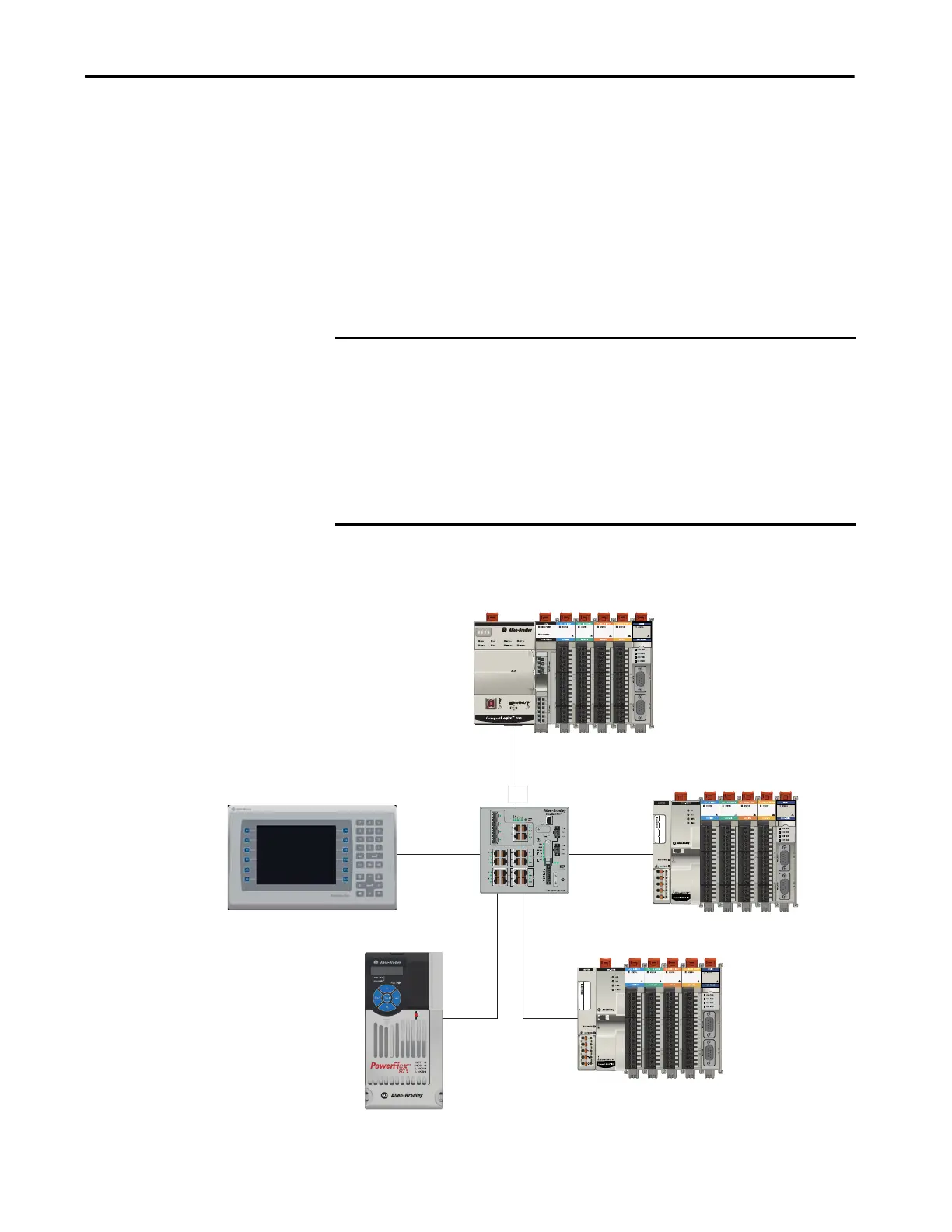

Figure 3 - Compact 5000 I/O Serial Module as Remote I/O Module
IMPORTANT Compact 5000 I/O Serial modules can function as remote I/O modules in
the following:
• CompactLogix 5380 control systems
• Compact GuardLogix 5380 control systems
• CompactLogix 5480 control systems
• ControlLogix 5580 control systems
• GuardLogix 5580 control systems
DF1 and DH-485 modes are not supported remotely.
 
 
 
PanelView™ Plus 7 Terminal
CompactLogix 5380 Controller
Compact 5000 I/O Modules
Compact 5000 EtherNet/IP Adapter
Compact 5000 I/O Modules
PowerFlex
® 527 Drive
Compact 5000 I/O Modules
Stratix 5400 Switch
