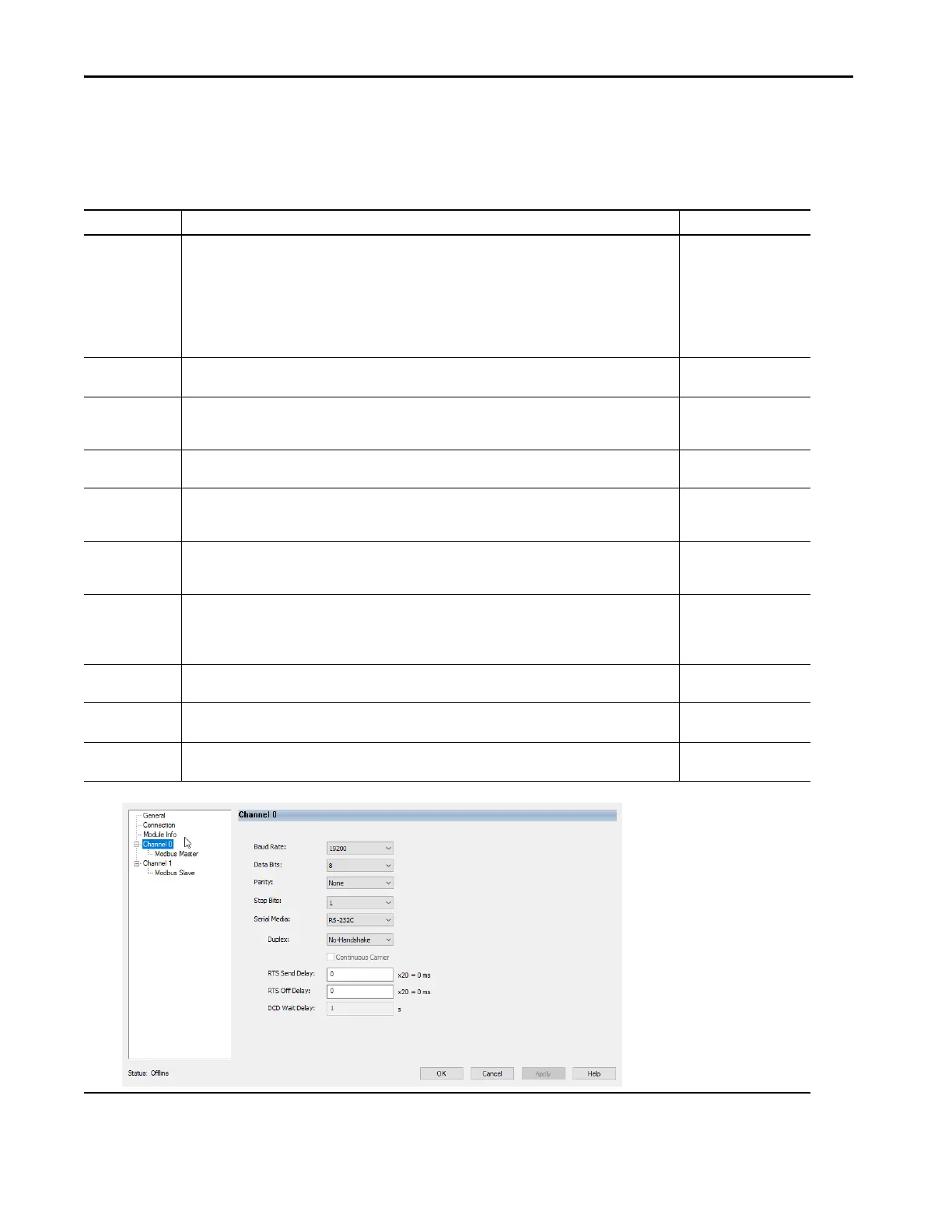

30 Rockwell Automation Publication 5069-UM003B-EN-P - January 2020
Chapter 3 Compact 5000 I/O Serial Module Features
Common Module Functions
The module supports the following terms, definitions, and parameters.
Table 5 - Common Module Function
Function Definition Available Options
Baud Rate The communication speed of each channel. 9600
•1200
•2400
•4800
19200 (default)
38400
57600
115200
Data Bits The number of data bits are used to represent one character of data. 7 bit
•8 bit (default)
Parity Sets the parity of transmitted data for error detection. It is created with data files and used to check data integrity
and help with data recovery.
None (default)
•Even
•Odd
Stop Bits This parameter sets the number of stop bits for each data value sent. 1 (default)
•2
Serial Media Type of media that is connected to the channels communication ports. RS-232C (default)
•RS-422
•RS-485
Duplex The type of communication that is used by each channel. No Handshake (default)
Full-duplex
•Half-duplex
Continuous Carrier A carrier frequency that is transmitted even when data is not being sent.
Continuous carrier is selected if you want to use it with half-duplex communication. The checkbox is unavailable if
you have chosen something other than half-duplex communication, or if you have chosen Master as your protocol.
The default option is cleared when enabled.
•On
•Off
RTS Send Delay Enter the time (x20 ms) to delay transmitting the first character of a message after turning on the RTS line.
The default value is 0.
0…32767
(default = 0)
RTS Off Delay Enter the time (x20 ms) to delay turning off the RTS line after the last character has been transmitted.
The default value is 0.
0…32767
(default = 0)
DCD Wait Delay The number of seconds to wait before lowering the DCD modem line. When DCD is high, the controller is in the
middle of transmitting data. This delay may be needed because of the latency in the sending radio transmissions.
0…255
(default = 1)
Selecting Functions in Logix Designer Application
