72 Rockwell Automation Publication 5069-UM003B-EN-P - January 2020
Chapter 4 Compact 5000 I/O Serial Module Configuration
Add a New Module
There are two methods to add modules to your Logix Designer
Application project.
• Discover Local and Remote I/O Modules
• Create New Local and Remote I/O Modules
Discover Local I/O Modules
1. Go online with your Logix Designer application.

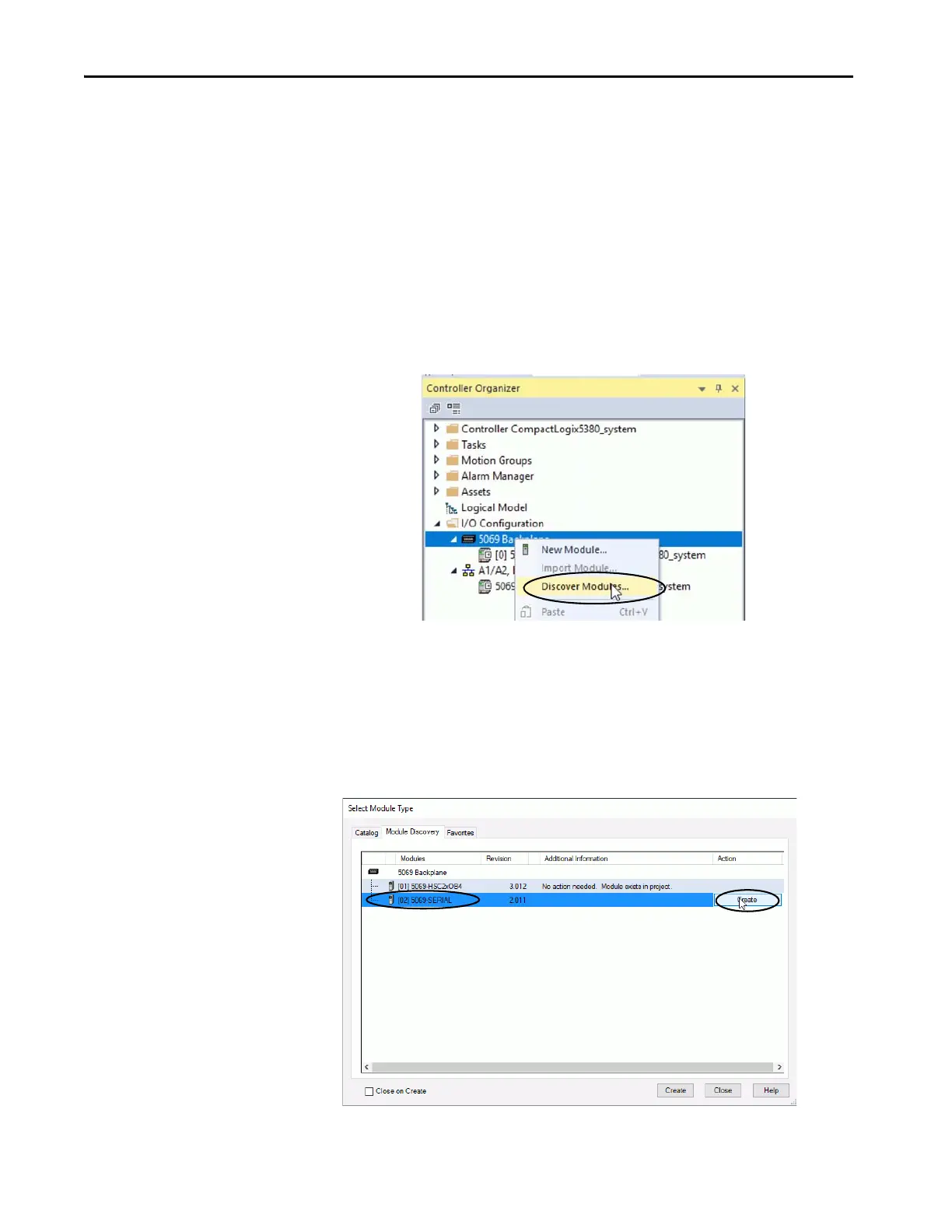

2. Right-click the 5069 Backplane and choose Discover Modules.
The Logix Designer application automatically detects available modules
that are connected to the backplane.
3. Select your module and click Create to add the discovered module to
the project.
TIP Selecting close on create will close windows when module creation
is complete.
