20 Rockwell Automation Publication 5069-UM003B-EN-P - January 2020
Chapter 2 Compact 5000 I/O Serial Module Operation
5069-FPD Field
Potential Distributor
The controller or adapter, based on whether the module is a local or
remote I/O module, is the primary source of field-side power, that is, SA power,
in the system. However, you can use a 5069-FPD field potential distributor to
break field-side power distribution in a system and establish a new SA power bus.
Field-side power passes across the internal circuitry of the Compact 5000 I/O
modules beginning with the controller or the adapter. The field potential
distributor blocks the passage of field-side power from the left and functions as a
new field-side power source for the modules to the right.

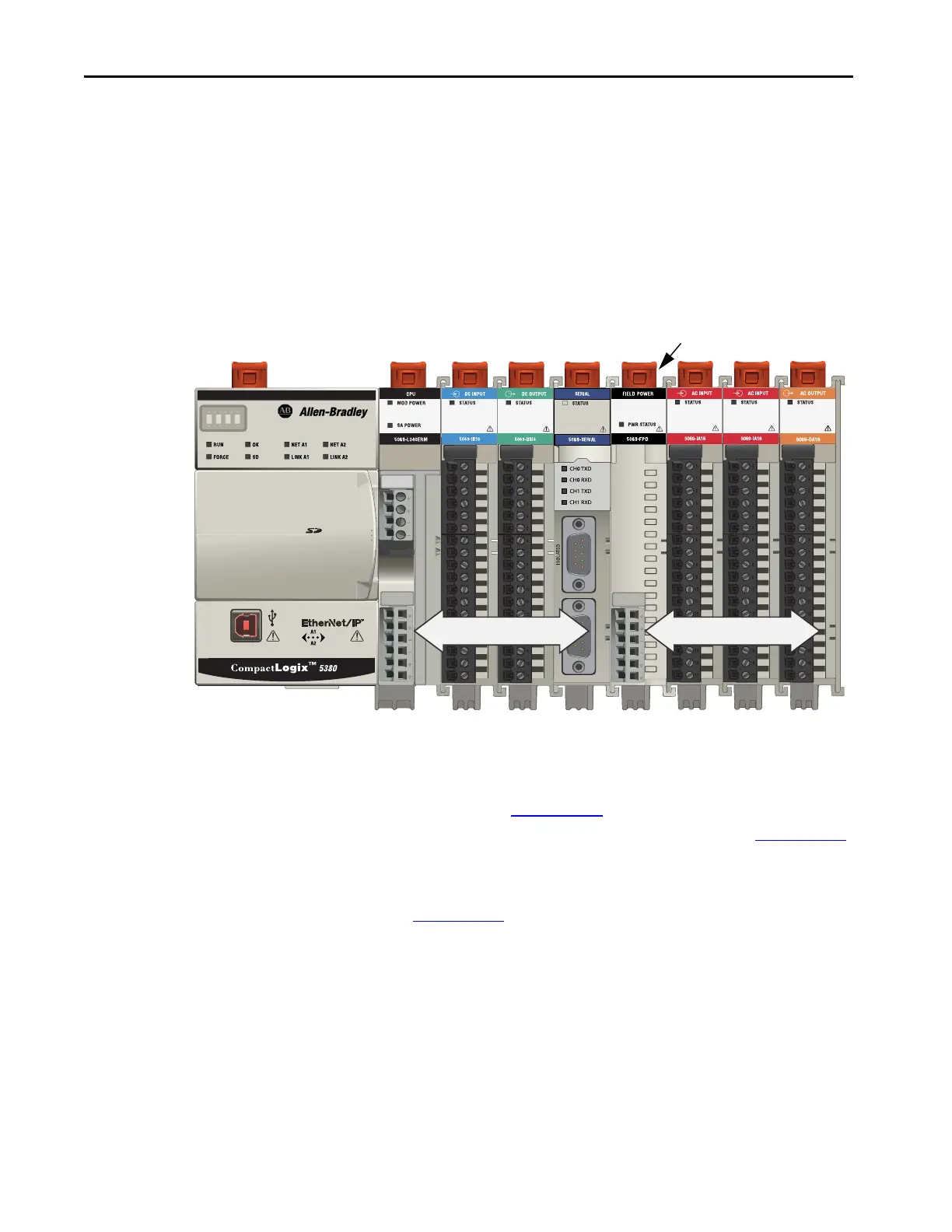

Figure 5 - Compact 5000 I/O System with 5069-FPD Field Potential Distributor
For more information on how to power local Compact 5000 I/O modules, see
the following:
• CompactLogix 5380 and Compact GuardLogix 5380 Controllers User
Manual, publication 5069-UM001
• CompactLogix 5480 Controller User Manual, publication 5069-UM002
For more information on how to power remote Compact 5000 I/O
modules, see the Compact 5000 EtherNet/IP Adapters User Manual,
publication 5069-UM007
.
5069-FPD Field Potential Distributor
First SA Power Bus
Second SA Power Bus
