Rockwell Automation Allen-Bradley Compact 5000 Series User Manual

60 Rockwell Automation Publication 5069-UM003B-EN-P - January 2020
Chapter 3 Compact 5000 I/O Serial Module Features

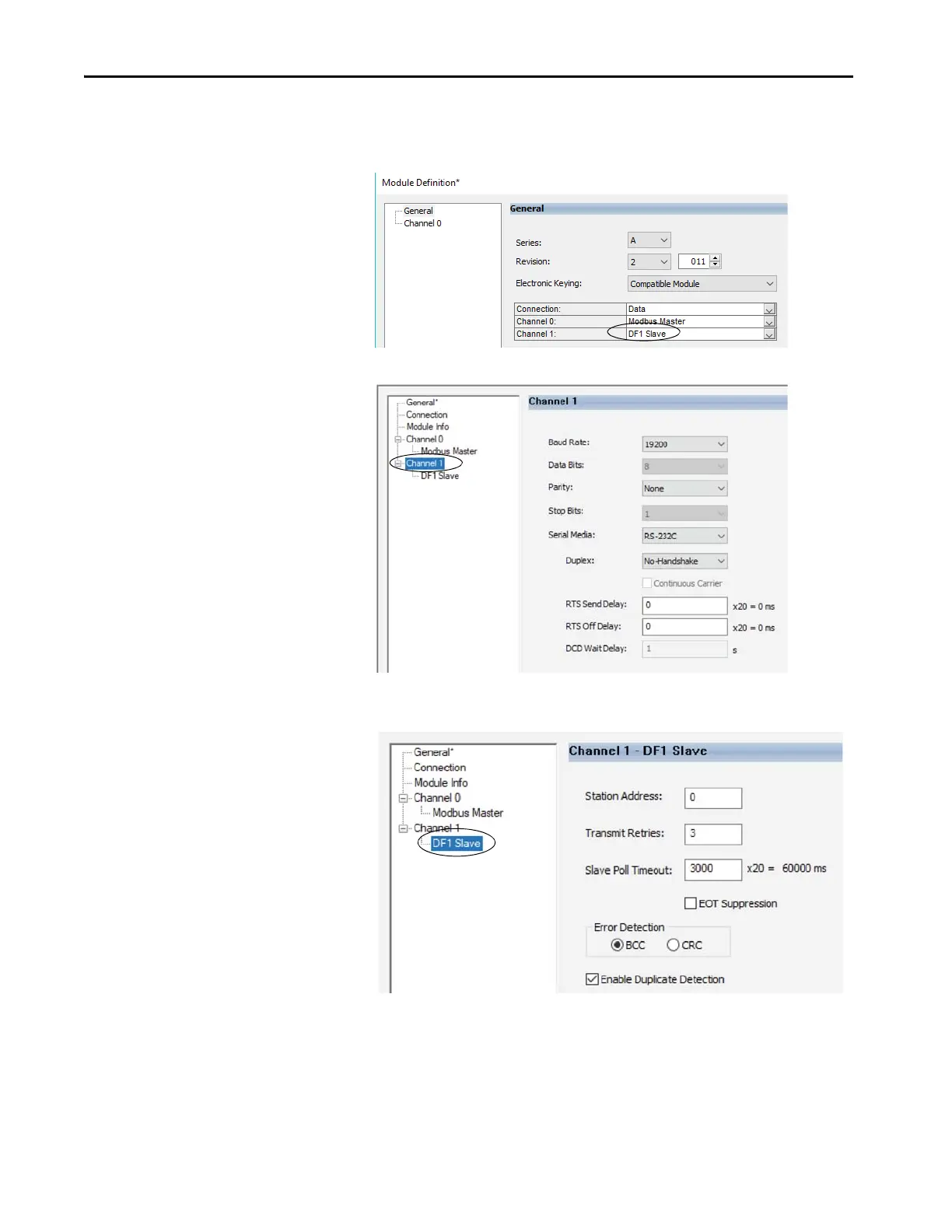

3. On the Module Definition dialog box, verify that Channel 1 is configured
for DF1 Slave. Configure Channel 1 to DF1 Slave if it is not configured to
DF1 Slave.
4. Click Channel 1 and configure the parameters as necessary.
5. Click DF1 Slave under the Channel 1 category on the Module Properties
dialog box to configure DF1 Slave port settings.
6. To close the Module Definition dialog box, click OK.
