Rockwell Automation Publication 1426-UM001J-EN-P - August 2019 239

Communication Chapter 9

2. In the left pane, browse to Online > MeteringResults >

RealTime_VIF_Power and select a tag on the right, then click OK.

3. Open Microsoft Excel software.

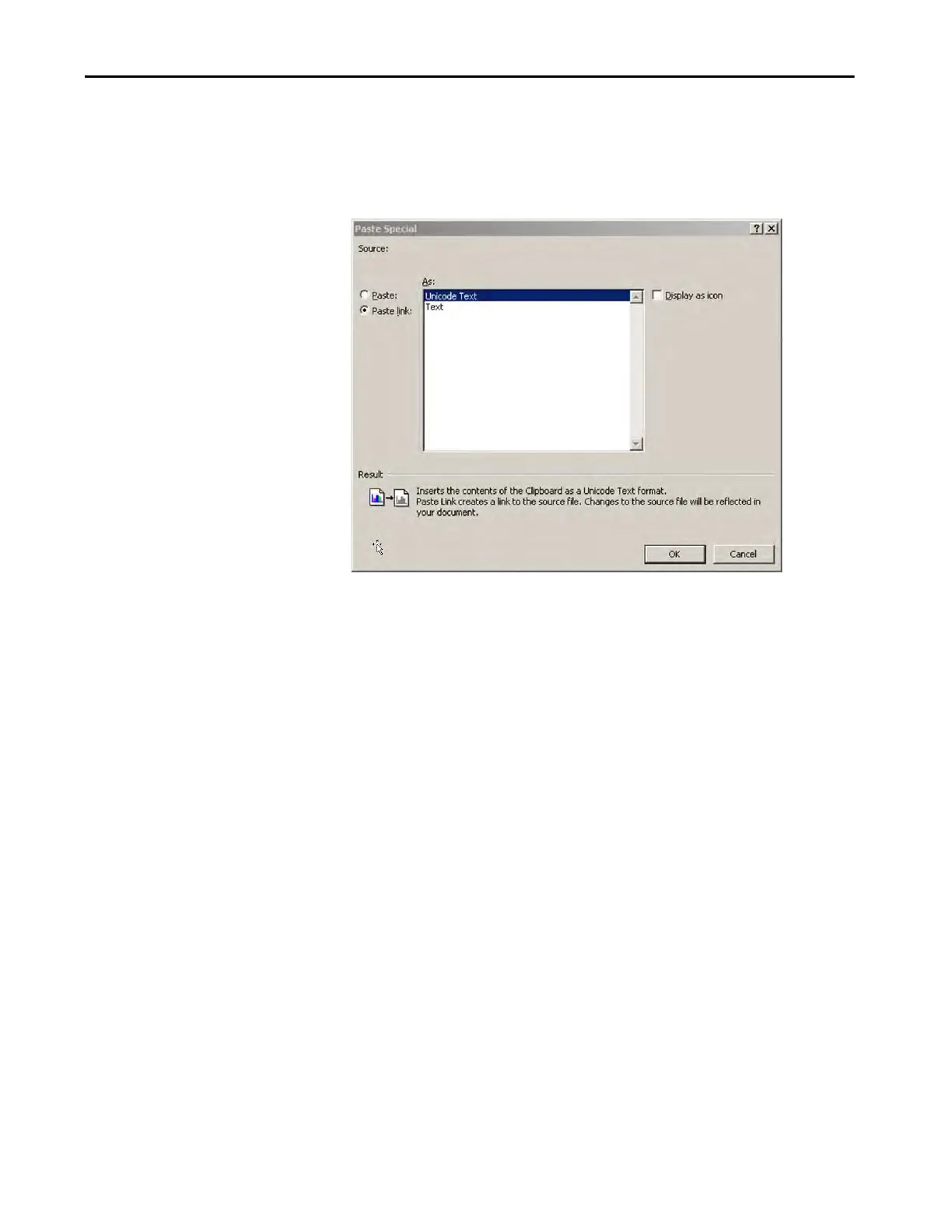

4. Right-click a cell and choose Paste Special.
