26 Rockwell Automation Publication 1426-UM001J-EN-P - August 2019
Chapter 2 Install the PowerMonitor 5000 Unit

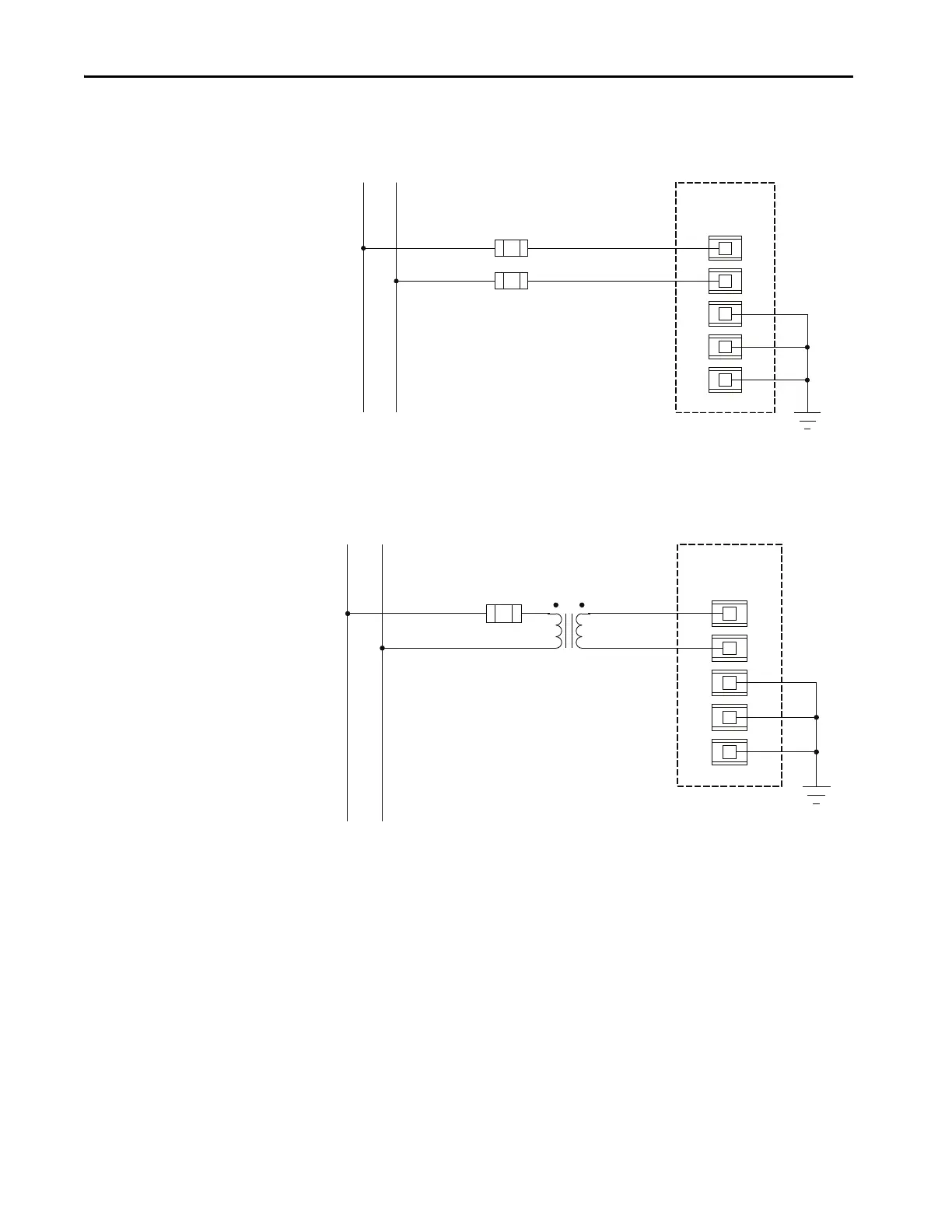

Figure 14 - Diagram V11 - Single-phase (690V AC Line-to-line Maximum)
Figure 15 - Diagram V12 - Single-phase with PTs
Voltage Mode = Single-phase
V1
V2
VG
V3
VN
PowerMonitor 5000
Fuses (by user)
L1 L2
Line
Ground
Load
Voltage Mode = Single-phase
V1
V2
VG
V3
VN
PowerMonitor 5000
Fuses (by user)
PTs (by user)
L1 L2
Line
Ground
Load
