Connect coil drive and electrode cables as shown in Figure E-4.

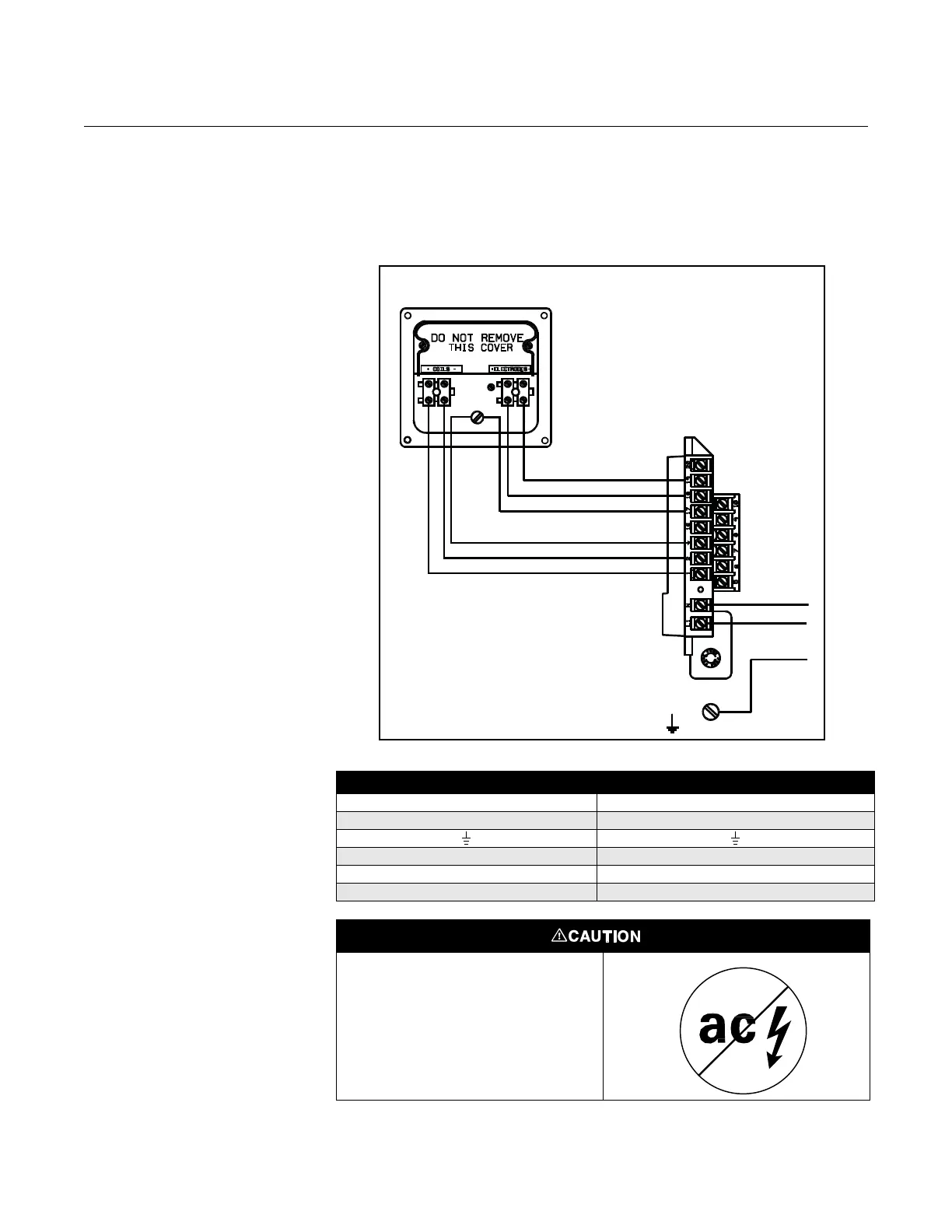

Figure E-4. Wiring Diagram for
Rosemount 8711 Sensor and
Rosemount 8712 Transmitter
Table E-2. Rosemount 8711 Sensor Wiring Connections
Rosemount 8712 Rosemount 8711 Sensors
1 Coils +
2 Coils –
17 Shield
18 Electrode +
19 Electrode –
ROSEMOUNT 8711
SENSOR
ROSEMOUNT 8712
TRANSMITTER
This is a pulsed dc magnetic flowmeter. Do
not connect ac power to the sensor or
to terminals 1 and 2 of the transmitter,
or replacement of the electronics board will
be necessary.
