Reference Manual
00809-0100-4664, Rev BA
January 2010
Rosemount 8712
E-24
Series 2800/8300 Sensor
to 8712 Transmitter
Connect coil drive and electrode cables as shown in Figure E-22.

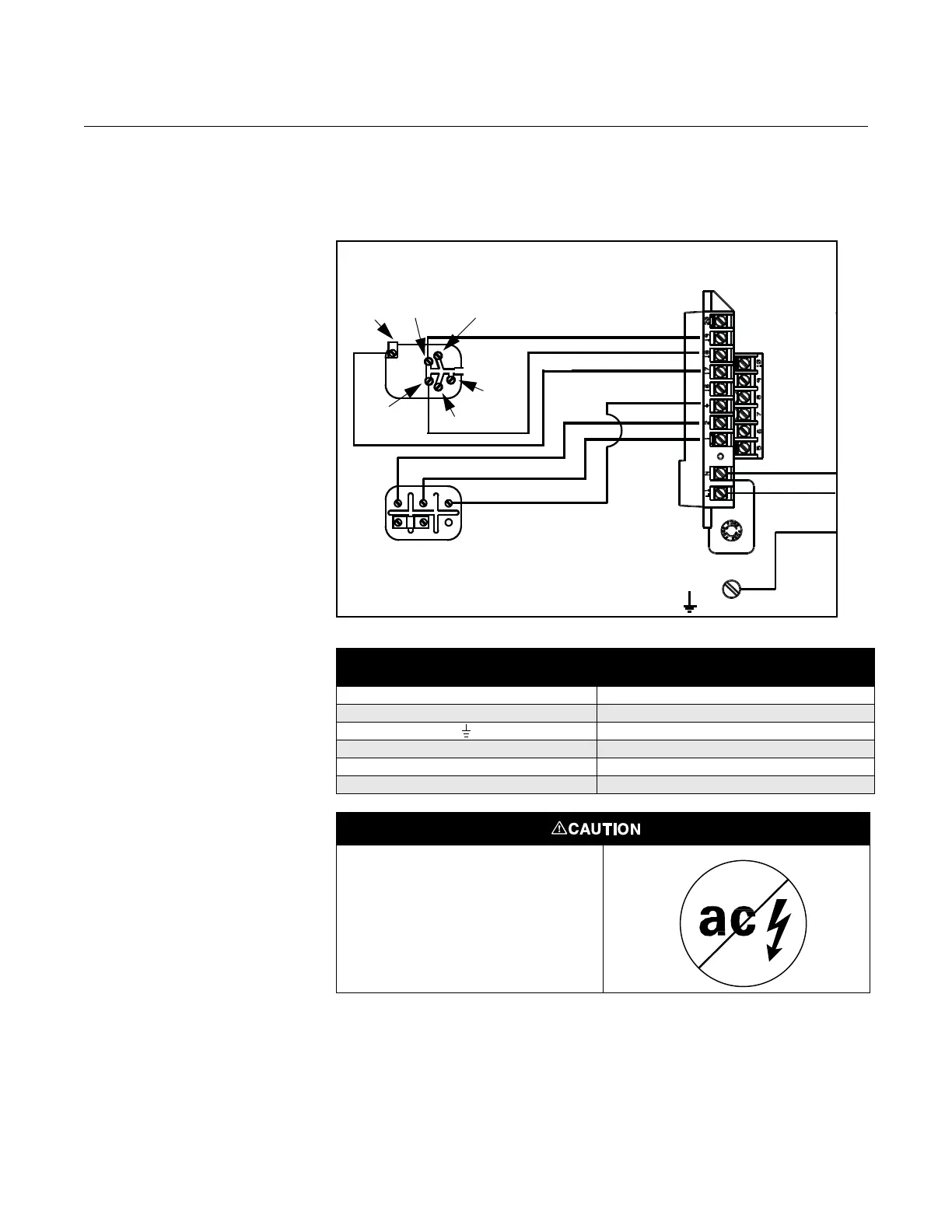

Figure E-22. Wiring Diagram for
Foxboro Series 2800 and
Rosemount 8712
Table E-20. Foxboro Series 2800/8300 Sensor Wiring Connections
Rosemount 8712
Foxboro
Series 2800/8300 Sensors
11
2 2
Chassis Ground
17 Any Shield
18 Black
19 White
ROSEMOUNT 8
TRANSMITTE
FOXBORO SERIES
2800/8300 SENSOR
Outer
Shield
White
White Shield
Black
Black Shield
Inner
Shield
L2
L1
Coil Connections
G
Electrode Connections
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
To Next Page
