Rosemount 8712 - Page 183

Reference Manual
00809-0100-4664, Rev BA
January 2010
E-29
Rosemount 8712
Kent Generic Sensor to
Rosemount 8712
Transmitter
Connect coil drive and electrode cables as shown in Figure E-27.

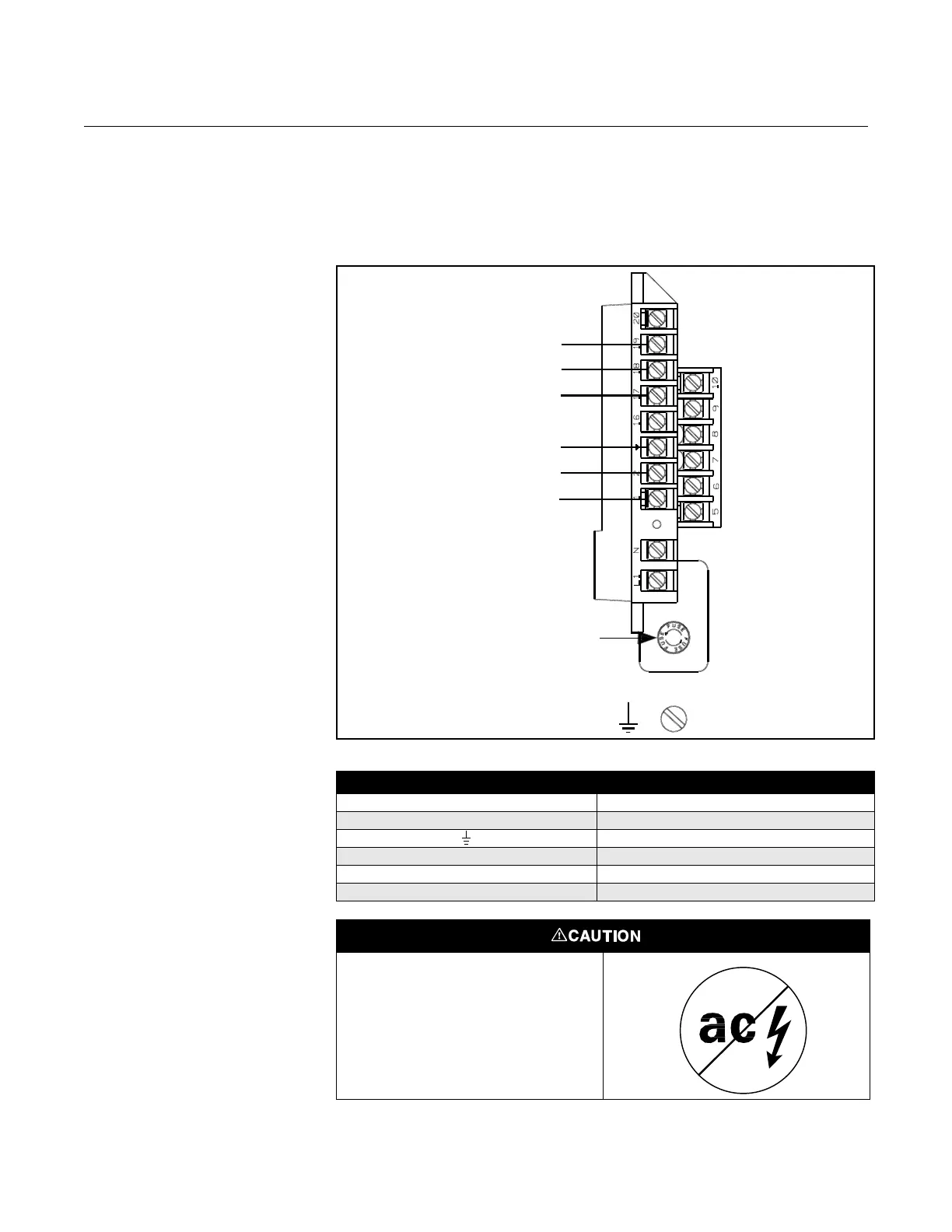

Figure E-27. Generic Wiring
Diagram for Kent Sensors and
Rosemount 8712
Table E-25. Kent Generic Sensor Wiring Connections
Rosemount 8712 Kent Generic Sensors
15
2 2
SCR OUT
17 SCR OUT
18 SIG1
19 SIG2
Coils
Electrodes
SCR OUT
ROSEMOUNT 8712
TRANSMITTER
KENT GENERIC SENSORS
2
1
SIG2
SIG1
SCR OUT
Fuse
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
