Rosemount Model 8732C Integral Mount Magnetic Flowmeter System
A-4
CONNECTIONS
AND HARDWARE
The HART Communicator exchanges information with the transmitter
from the control room, the instrument site, or any wiring termination
point in the loop. The HART Communicator should be connected in
parallel with the transmitter. Use the loop connection ports on the
rear panel of the HART Communicator (see Figure A-2). The
connections are non-polarized.
Do not make connections to the serial port or NiCad recharger jack in
an explosive atmosphere. Before connecting the HART Communicator
in an explosive atmosphere, make sure the instruments in the loop are
installed in accordance with intrinsically safe or nonincendive field
wiring practices.
Loop Connection Ports
Serial Port
Optional NiCad
Recharger Jack
275-008AB

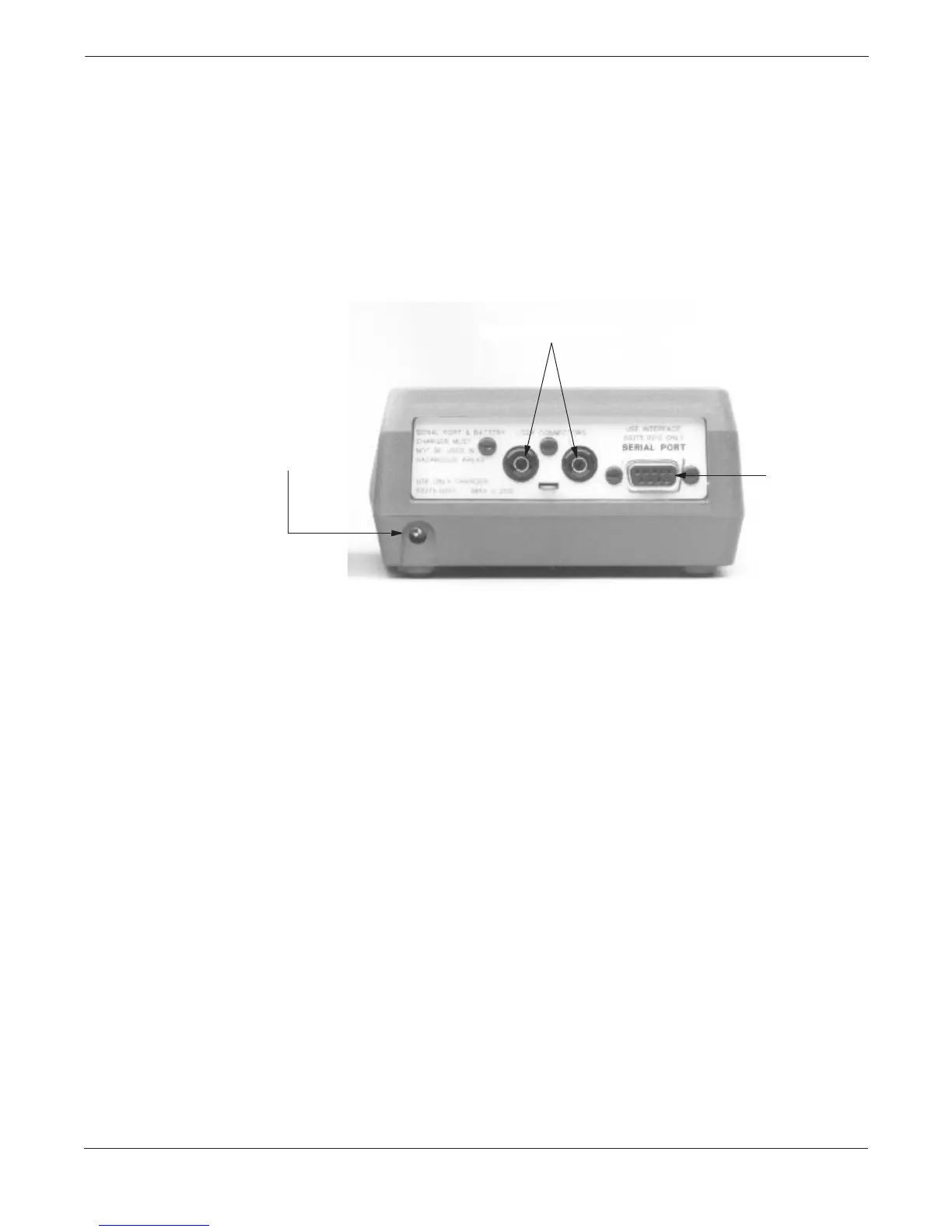

FIGURE A-2. Rear Connection Panel
with Optional NiCad Recharger Jack.
