2-11
Installation
Flow Direction
The flowtube should be mounted so that the FORWARD end of the flow
arrow, shown on the flowtube identification tag, points in the direction
of flow through the tube (see Figure 2-9).
Gaskets
The flowtube requires gaskets at each of its connections to adjacent
equipment or piping. The gasket material selected must be compatible
with the process fluid and operating conditions, and must not damage
the liner.
NOTE
To avoid possible flowtube damage, do not use metallic or spiral
wound gaskets.

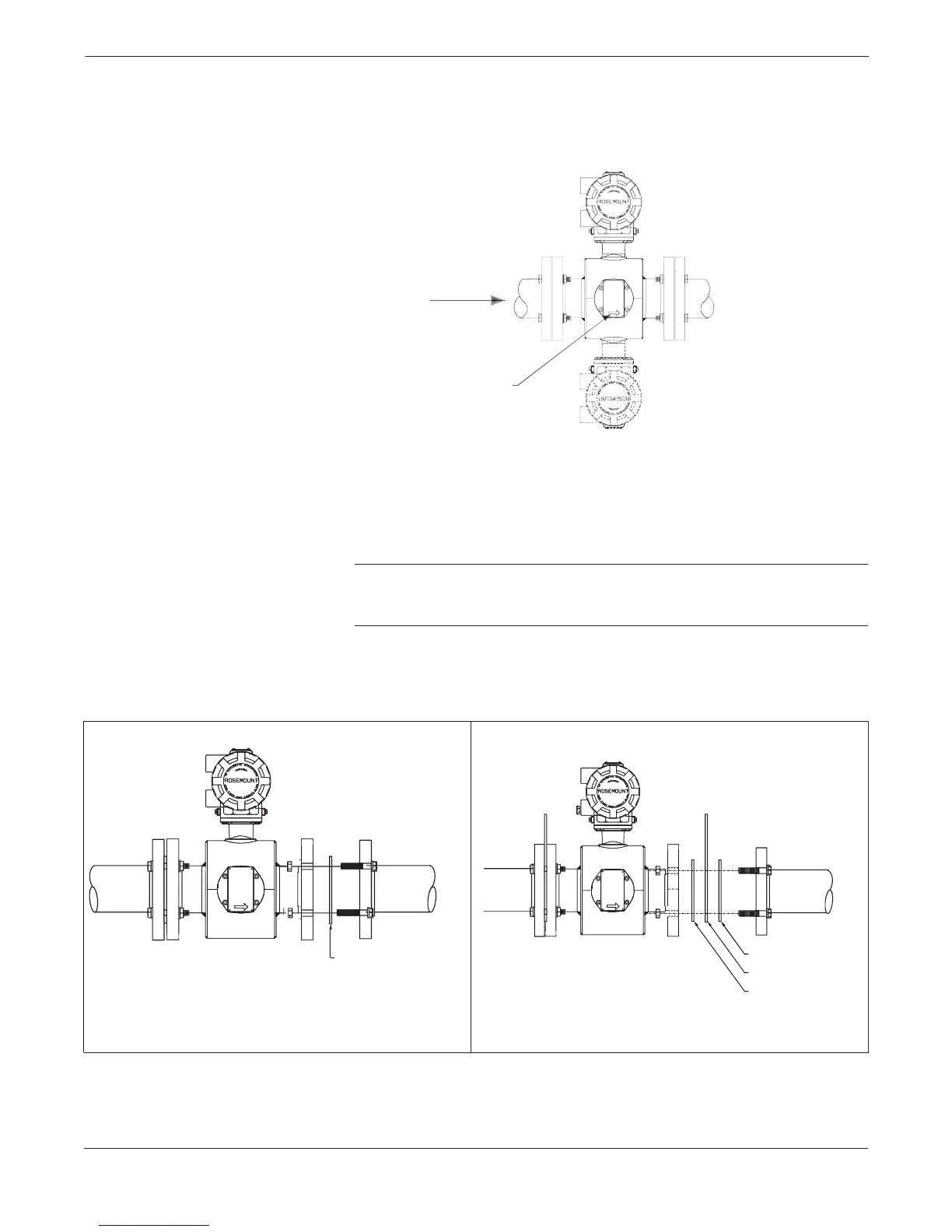

FIGURE 2-9. Flow Direction.
8705-0005G01A
Flow Direction Arrow
Flow
FLANGE GASKETS FOR ALL OTHER
FLOWTUBES
FLANGE GASKETS WITH NON-ATTACHED
GROUNDING RINGS
Grounding Ring
Gasket
Gasket
8732-0040F, 0038F
BA
FIGURE 2-10. Model 8705 Flange Gaskets.
Gasket
