Rosemount 8732C - Model 8732 C Spare Parts

6-5
Model 8732C Specifications and Reference Data
NOTE
When removing or replacing the transmitter housing, refer to
Transmitter Removal Procedure on page 5-5.
MODEL 8732C SPARE PARTS
Part Description
Item
Number
Part Number
Model 8732C Electronics, 90–250 V ac (includes mounting hardware) 1 08732-0001-0001
Model 8732C Electronics with Non-volatile Totalizer, 90–250 V ac (includes mounting hardware) 2 08732-0001-0003
Model 8732C Electronics, 15-30V dc (Includes mounting hardware) 3 08732-0001-0002
Model 8732C Electronics with non-volatile totalizer, 15-30V dc (Includes mounting hardware) 4 08732-0001-0004
Standard Terminal Block Assembly (includes mounting hardware) 5 08732-0002-0001
Transient Protection Terminal Block Assembly (includes mounting hardware) 6 08732-0002-0002
DC Terminal Block Assembly (Includes mounting hardware) 7 08732-0002-0003
DC Transient Protection Terminal Block Assembly (Includes mounting hardware) 8 08732-0002-0004
Integral Mount Housing Assembly (does not include terminal block assembly) 9 08732-0004-0001
Standard Housing Cover (without glass for LOI) 10 08732-0005-0001
Local Operator Interface (LOI) Assembly (does not include LOI cover) 11 08732-0006-0002
LOI Cover 12 08732-0007-0002
Electrical Connection Assembly (Flowtube to transmitter) 13 08732-0133-0001
Model 8732C Non-Volatile Totalizer Chip – C53641-0003
Transmitter and Flowtube Accessories
Multi-Point Reference Calibration Standard (for use with Model 8712C, 8712U, or 8732C Transmitters) — Model 8714D
Spare Model 8714D Cable (for Model 8732C Transmitters) — 08714-0205-0001
UMB Tube to 8732C Transmitter Conversion Bracket — 08732-0160-0001
UMB Tube to 8732C Transmitter Conversion Cable (Three-position cable assembly) — 08732-0161-0003
UMB Tube to 8732C Transmitter Conversion Cable (Four-position cable assembly) — 08732-0161-0004
FIGURE
6
-
1
.
M
o
d
e
l
8732C
Exploded Parts Drawing

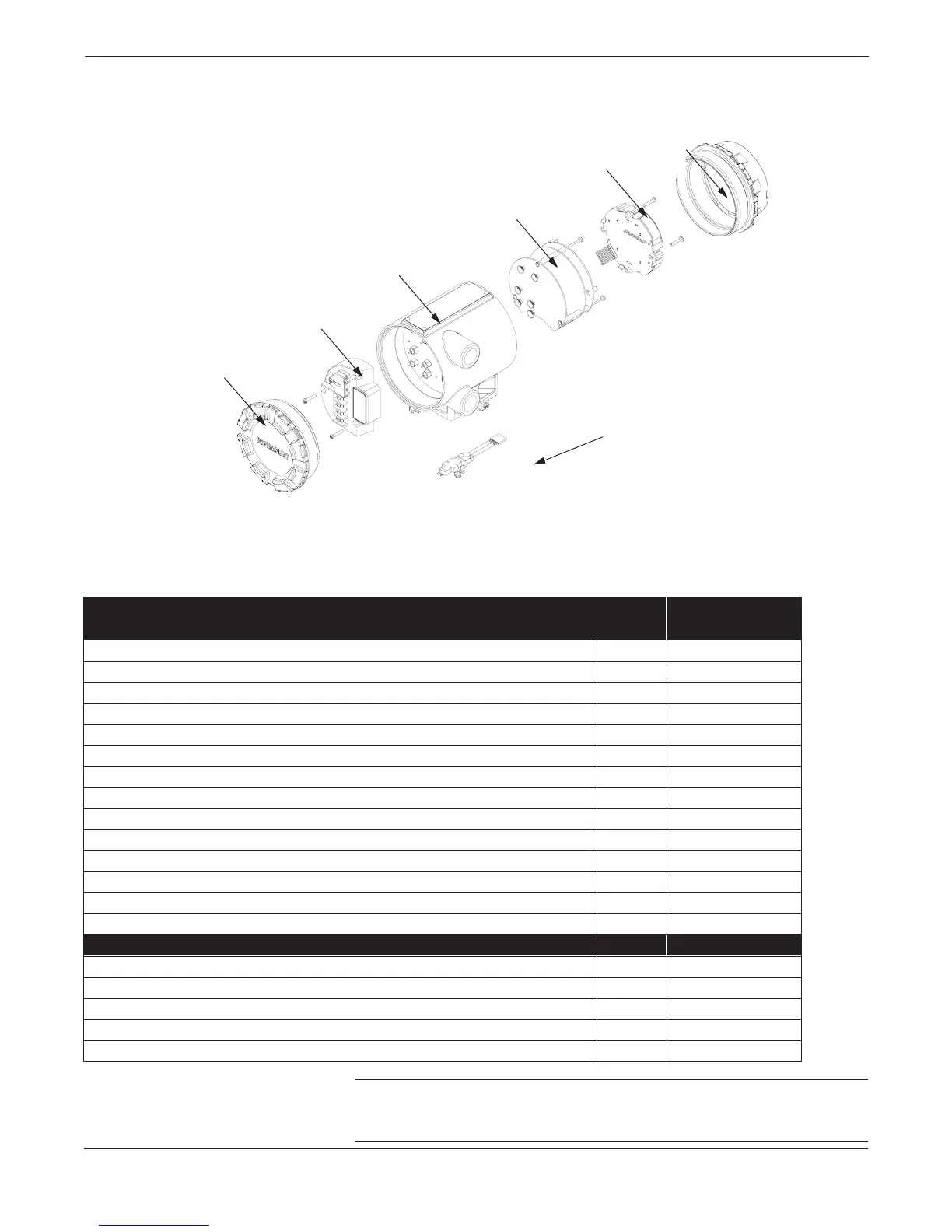

FIGURE 6-1. Model 8732C Exploded Parts Drawing.
Three Board
Electronic Stack
(Items #1, 2, 3, or 4)
Terminal Block Assembly
(Item #5, 6, 7, or 8)
Electrical Connection
Assembly
(Item #13)
Housing Cover
(Item #10)
LOI Assembly
(Item #11)
LOI Cover
(Item #12)
Housing Assembly
(Item #9)
