Rosemount Model 8732C Integral Mount Magnetic Flowmeter System
2-4
Mechanical Considerations
The mounting site for the Model 8732C Integral Mount Transmitter
should provide enough room for secure mounting, easy access to the
conduit ports, full opening of the transmitter covers, and easy readability
of the local operator interface (LOI) screen (see Figure 2-2). The
electronics housing can be rotated on the flowtube in 90° increments.
This can be done by loosening the four mounting bolts on the bottom of
the housing, rotating the housing, and reinstalling the bolts. Be sure the
surface is clean and there is not a gap when returning the housing to its
original position.
The LOI can also be rotated in 90° increments. This should be performed
prior to installing the magnetic flowmeter system. Refer to LOI Rotation
on page 3-3 for additional information.

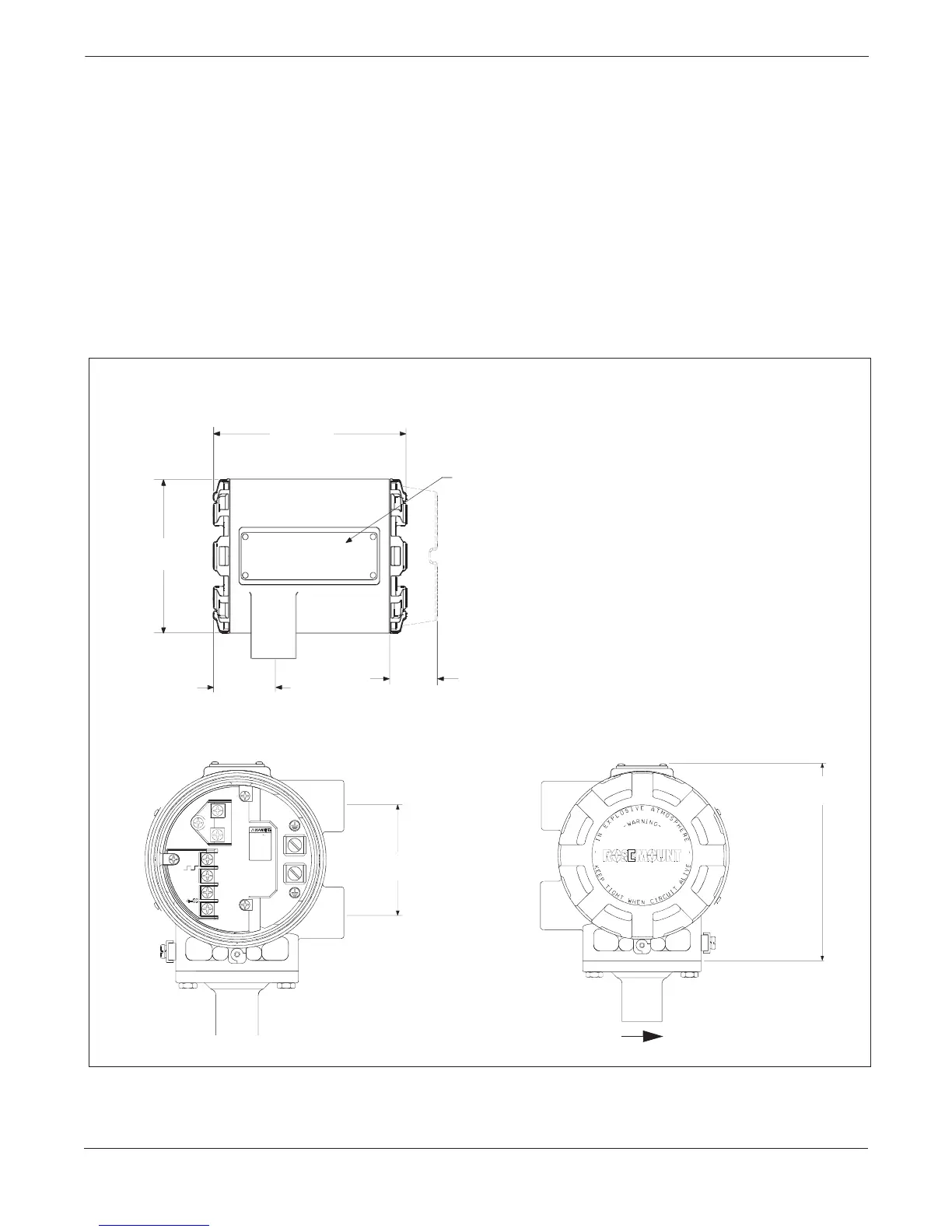

FIGURE 2-2. Model 8732C Dimensional Drawings.
5.82
(148)
NOTE
Dimensions are in inches (millimeters).
8732-1002A01B, 1002E01A, 1002G01A
3.00
(76)
FLOW
6.48 (165)
SST Tag
4.97
(126)
1.88
(47)
1.53
(39)
