Rosemount Model 8732C Integral Mount Magnetic Flowmeter System
7-8
¾–14 NPT Conduit
Connection
2.00
(51)
1.00
(25)
4.75
(121)
“C”
“L”
“A”
“D”
8705-1002A05A, 1002B05A1

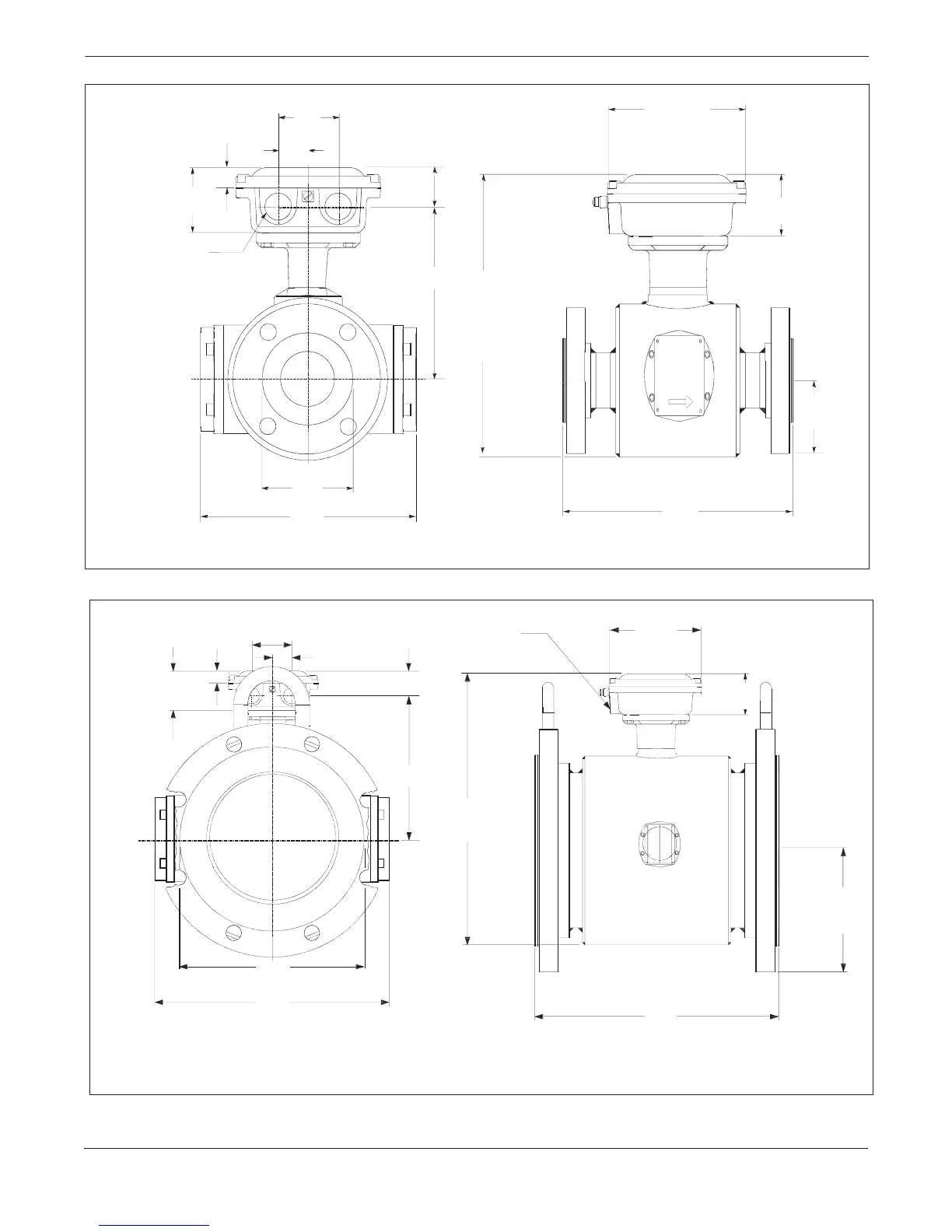

FIGURE 7-1. Dimensional Drawing of Model 8705 Flowtubes, Typical of ½- through 4-inch (15–100 mm) Line Sizes.
“B”
NOTES
Dimensions are in inches (millimeters).
See Table 7-3 and 7-4 for variable dimensions.
2.00
(51)
2.00
(51)
0.66
(17)
1.35
(34)
“E”
8705-1002A06A, 1002B06A
FIGURE 7-2. Dimensional Drawing of Model 8705 Flowtubes, Typical of 6- through 36-inch (150–900 mm) Line Sizes.
“B”
NOTES
Dimensions are in inches (millimeters).
Consult factory for larger line sizes.
See Table 7-3 and 7-4 for variable dimensions.
4.75
(121)
“C”
“L”
“A”
“D”
2.00
(51)
2.00
(51)
1.00
(25)
2.00
(51)
0.66
(17)
1.35
(34)
“E”
¾–14 NPT
Conduit
Connection
