Rosemount 8800D Series User Manual

Reference Manual
00809-0100-4004, Rev BA
August 2010
Rosemount 8800D
A-4
Weld-End Style Meter
W1 Welds to Schedule 10 mating pipe
Max Working Pressure 720 psig (4.96 MPa-g)
W4 Welds to Schedule 40 mating pipe
Max Working Pressure 1440 psig (9.93 MPa-g)
W8 Welds to Schedule 80 mating pipe
Max Working Pressure 2160 psig (14.9 MPa-g)
W9 Welds to Schedule 160 mating pipe
Max Working Pressure 3600 psig (24.8 Mpa-g)
NOTE:
1-in. (25 mm), and 1.5-in. (40 mm) weld to Schedule 80 mating pipe
Power Supply
HART Analog
External power supply required. Flowmeter operates on 10.8 to 42 Vdc terminal voltage (with
250-ohm minimum load required for HART communications, 16.8 Vdc power supply is
required)
F
OUNDATION fieldbus
External power supply required. Flowmeter operates on 9 to 32 Vdc, 18 mA maximum.
Power Consumption
One watt maximum

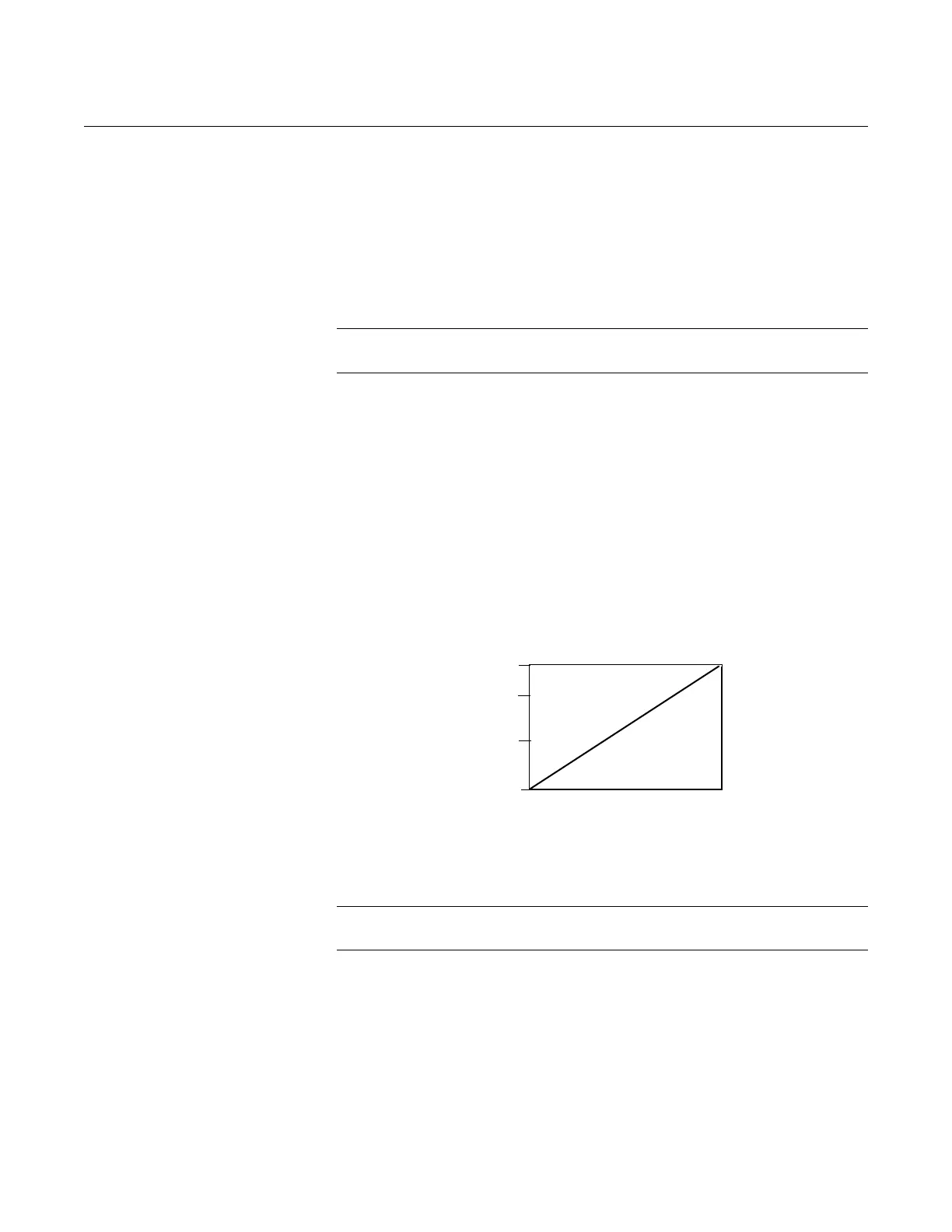

Load Limitations (HART Analog)
Maximum loop resistance is determined by the voltage level of the external power supply, as
described by:
NOTE
HART Communication requires a minimum loop resistance of 250 ohms.
R
max
= 41.7(V
ps
– 10.8)
V
ps
= Power Supply Voltage (Volts)
R
max
= Maximum Loop Resistance (Ohms)
Power Supply (Volts)
Load (Ohms)
Operating
Region
1250
1000
500
0
10.8
42

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
