Rosemount 8800D Series User Manual

Reference Manual
00809-0100-4004, Rev BA
August 2010
A-31
Rosemount 8800D

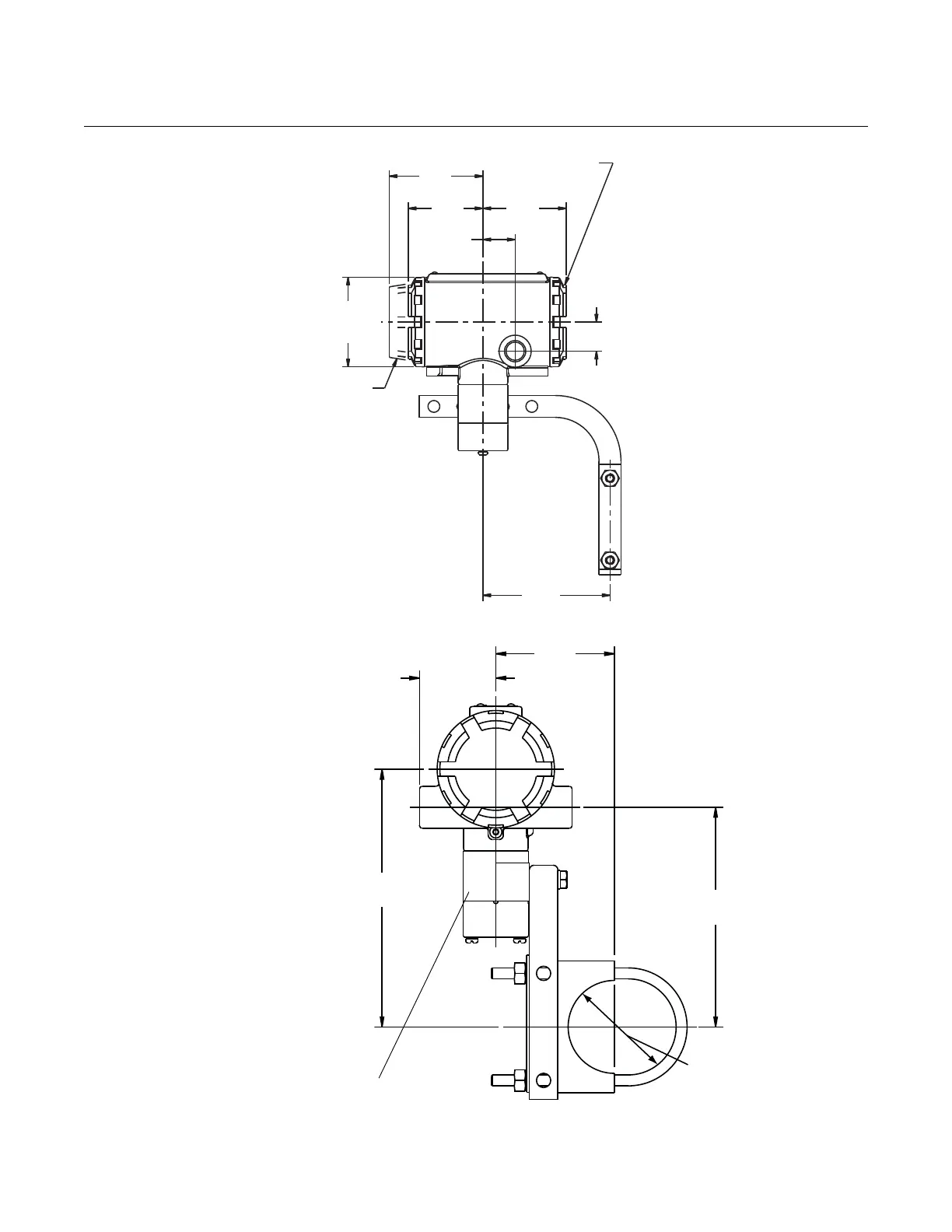

Figure A-7. Dimensional Drawings for Remote Mount Transmitters
3.20
(81)
2.56
(65)
1.10
(28)
2.85
(72)
1.00
(25,4)
4.35
(110)
3.06
(78)
Display
Option
Terminal Cover

NOTE
Consult factory for SST installation
Dimensions are in inches (millimeters)
5.77
(147)
1
/2-14 NPT (For Remote
Cable Conduit)
2.00 (51)
3.12
(80)
6.77
(172)

2.44
(62)

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
