Rosemount 8800D Series User Manual

Reference Manual
00809-0100-4004, Rev BA
August 2010
Rosemount 8800D
A-32

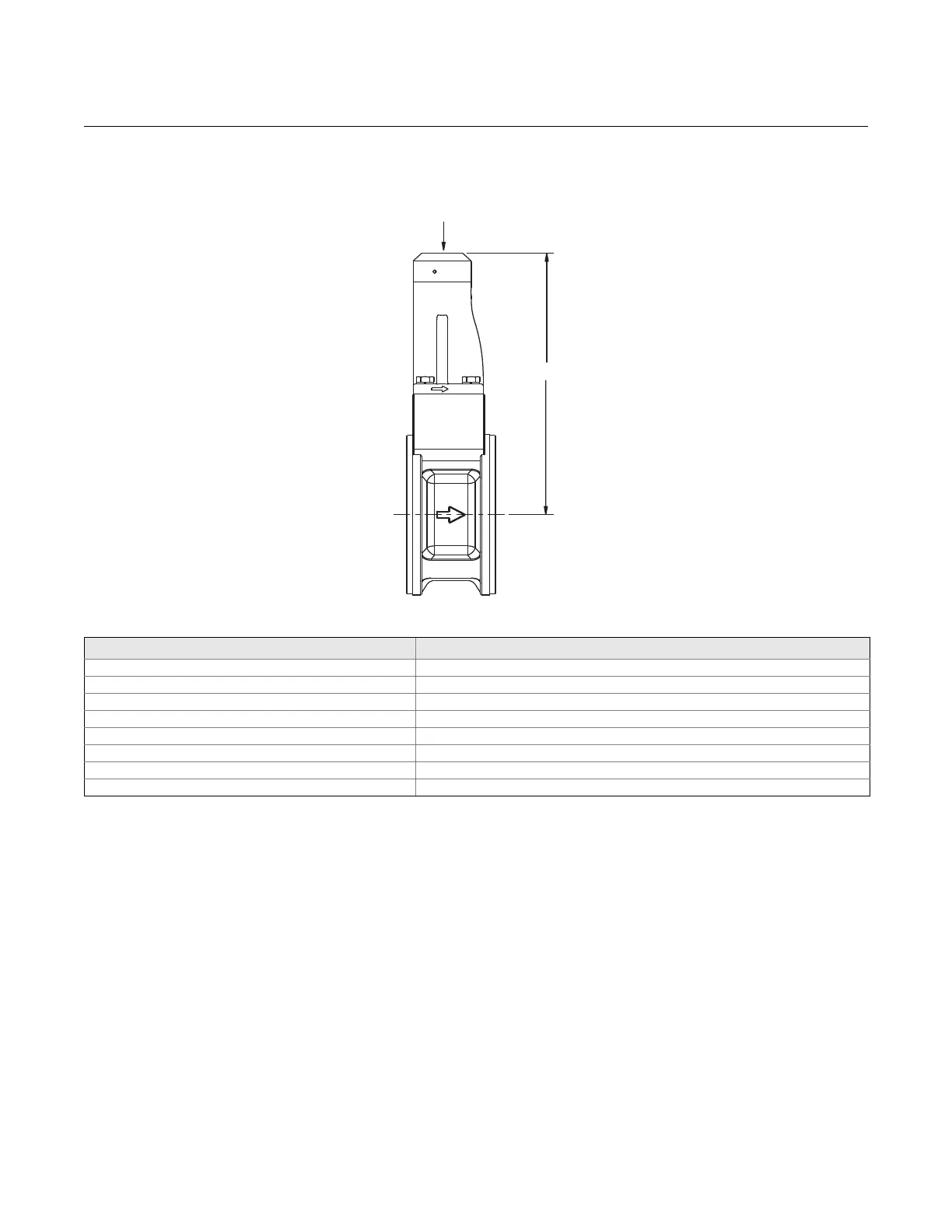

Figure A-8. Dimensional Drawings for Remote Mount Wafer-Style Flowmeters (
1
/2-through 8-inch/15 through 200
mm Line Sizes)
E
NOTE
Dimensions are in inches (millimeters)
1
/2-14 NPT (For Remote
Cable Conduit)
Table A-27. Rosemount 8800D Wafer-Style Meter
Nominal Size Inch (mm) E Wafer Style Inch (mm)
½ (15) 6.4 (163)
1 (25) 6.5 (165)
1½ (40) 6.9 (175)
2 (50) 7.6 (193)
3 (80) 8.3 (211)
4 (100) 9.2 (234)
6 (150) 9.5 (241)
8 (200) 10.4 (264)

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
