Rosemount 8800D Series User Manual

Reference Manual
00809-0100-4004, Rev BA
August 2010
A-33
Rosemount 8800D

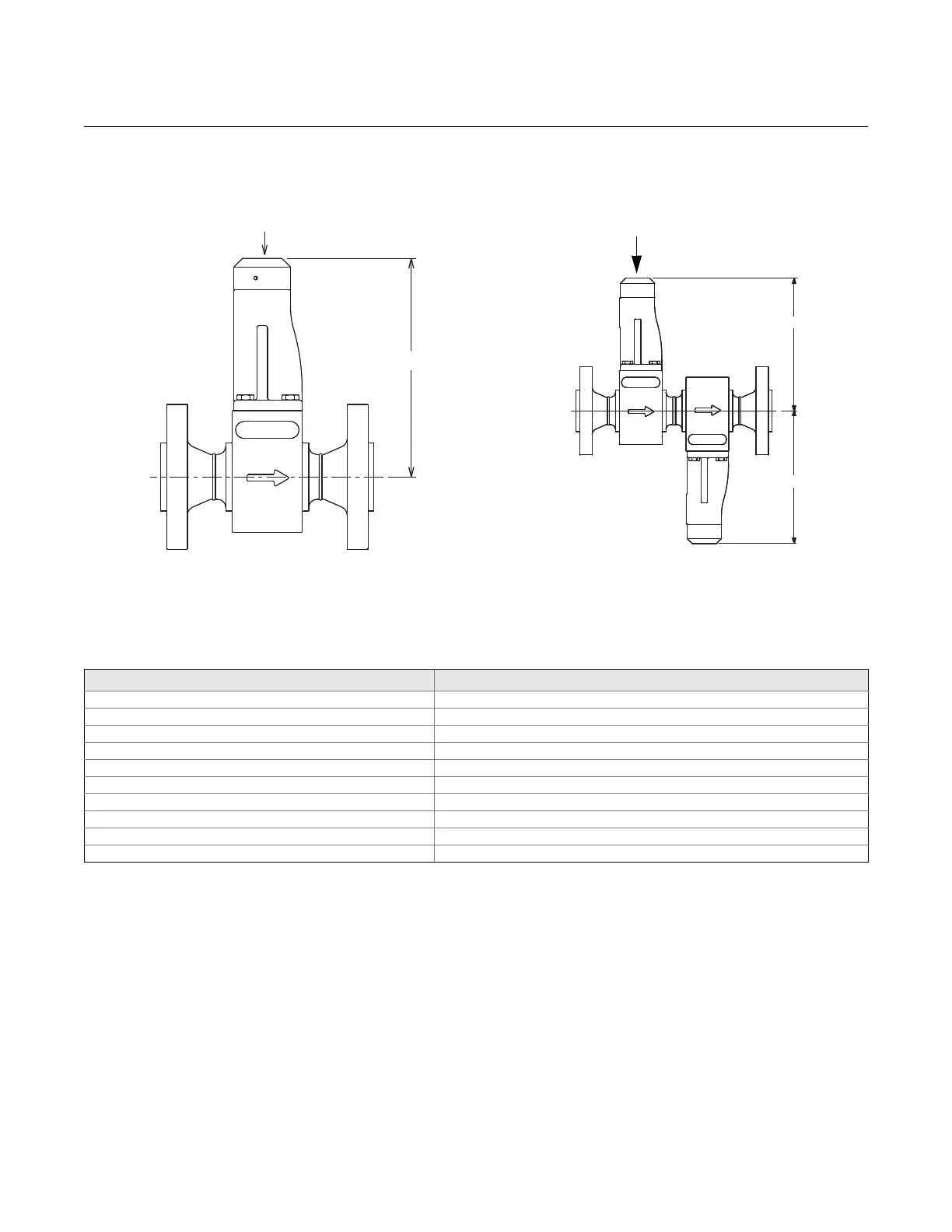

Figure A-9. Dimensional Drawings for Flanged-and Dual Sensor Flanged-Style Remote Mount Flowmeters
(
1
/2-through 12-inch/15 through 300 mm Line Sizes)
1
/2-14 NPT (For Remote Cable
Conduit)
Flanged Flowmeter
NOTE
Dimensions are in inches (millimeters)
E
1
/2-14 NPT (For Remote Cable
Conduit)
Dual-Sensor Style
Flowmeter
E
E
Table A-28. Remote Mount, Flanged-and Dual Sensor Flowmeter Dimensions
Nominal Size Inch (mm) E Flange Style Inch (mm)
½ (15) 6.4 (162)
1 (25) 6.5 (165)
1½ (40) 6.8 (173)
2 (50) 7.2 (183)
3 (80) 7.8 (198)
4 (100) 8.3 (211)
6 (150) 9.5 (241)
8 (200) 10.4 (264)
10 (250) 11.4 (290)
12 (300) 12.3 (313)

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
