Rosemount 8800D Series User Manual

Reference Manual
00809-0100-4004, Rev BA
August 2010
5-17
Rosemount 8800D
3. Sensor should remain as close to vertical as possible when applying
force to seat. See Figure 5-12.

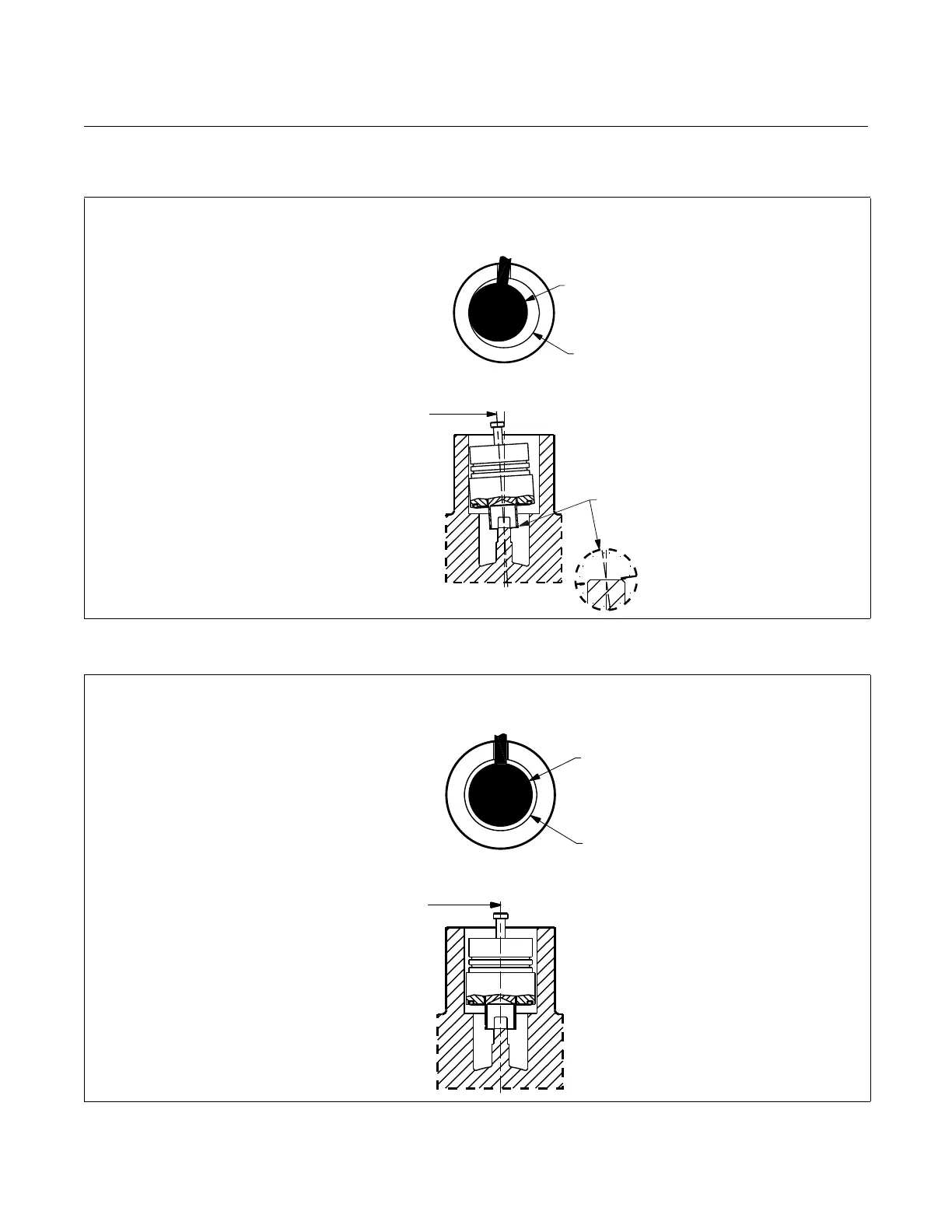

Figure 5-10. Sensor Installation – Improper Alignment
Sensor
Sensor cavity
in flowmeter
Improper Alignment
(before seating)
Sensor not
properly aligned
Sensor centerline
is not aligned
with flowmeter
centerline. Damage
to sensor will occur.
Top View
of Flowmeter
Figure 5-11. Sensor Installation – Proper Alignment
Proper Alignment
(before seating)
Sensor
Sensor cavity
in flowmeter
Sensor centerline
must be aligned
with flowmeter
centerline
Top View
of Flowmeter

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
