Wireless Router RNX-N150RT User Manual
a) Client Router Mode

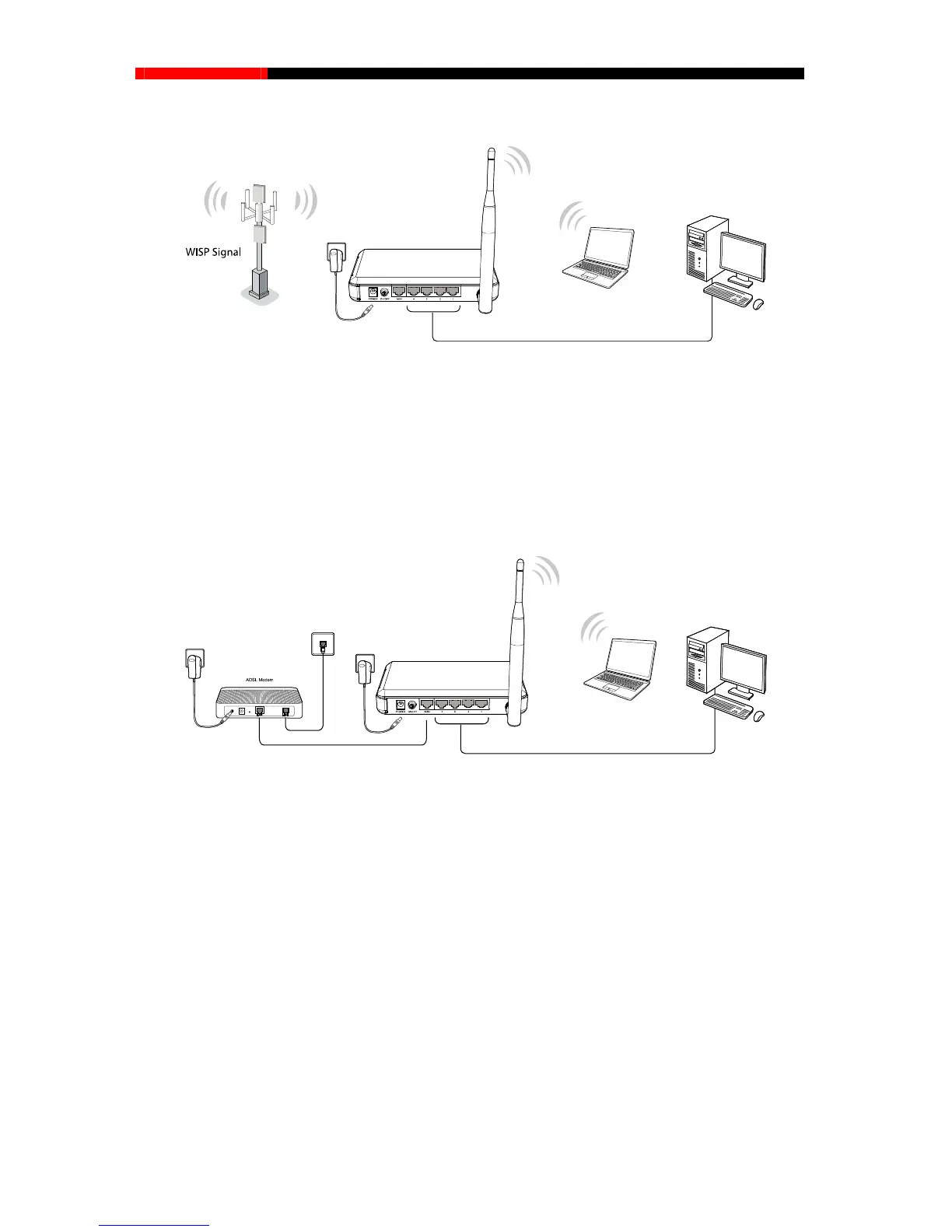

Figure 2-1 Hardware Installation of the RNX-N150RT in Client Router mode
1. Connect the notebook/PC to the LAN port of RNX-N150RT router with an Ethernet cable.
2. Plug one end of the provided power adapter into the POWER jack of the router, and the other
end to a standard electrical wall socket.
3. Press the ON/OFF button of the router.
b) Router Mode
Figure 2-2 Hardware Installation of the RNX-N150RT in Router mode
1. Connect the PC(s)/Switch/Hub in your LAN to the LAN Ports on the router.
2. Connect the DSL/Cable Modem to the INTERNET port on the router.
3. Plug one end of the provided power adapter into the POWER jack of the router, and the other
end to a standard electrical wall socket.
4. Press the ON/OFF button of the router.
- 6 -
