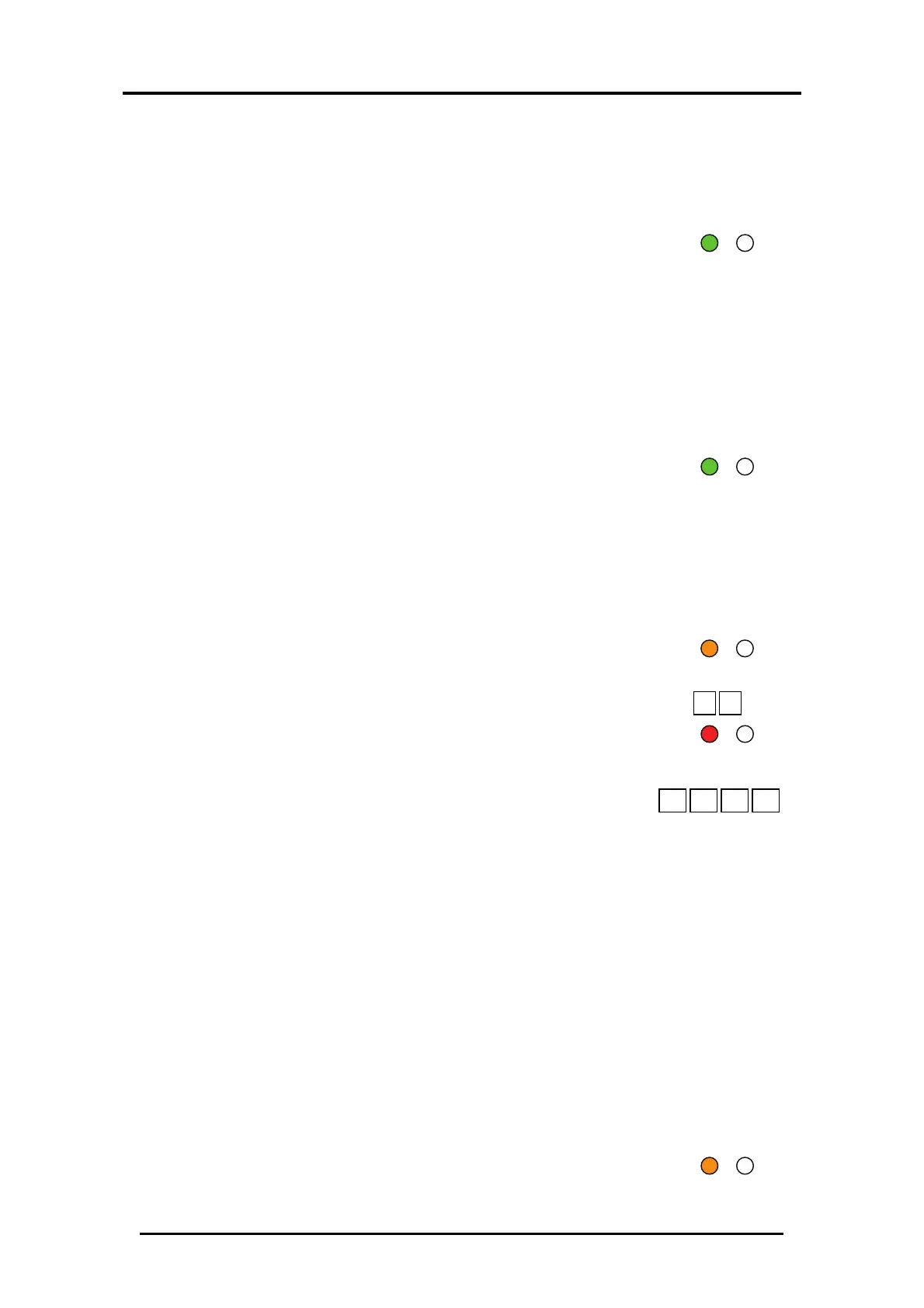

Programming Instructions
AC-115 Hardware Installation and User's Guide
Page 34
N1 N2 N3 N4
Mode
Door
Oran
e
4. If the Programming Code is entered correctly, the Timed
Events and Output settings will reset to factory default
settings, the controller will exit Programming Mode and
enter Normal Mode.
• You will hear a short beep
• The Mode LED will turn green
• The Door LED will stop flashing
If the Programming Code is entered incorrectly, the Timed
Events and Output settings will NOT reset to factory default
settings, the controller will exit Programming Mode and
enter Normal Mode.
• You will hear a long beep
• The Mode LED will turn green
• The Door LED will stop flashing
4.17 Setting up the Lock Strike Release Time and
Output Settings
1. Enter Programming Mode
• Mode LED will turn orange
2. Press ”31” to enter Menu 31
• The Mode LED will turn red
3. Create and enter the 4-digit settings
code.
• N1 - determines if the Lock Strike Relay is Normally Open
or Normally Closed
Enter “1” to for Normally Closed
Enter “0” to for Normally Open
• N2 - Lock Strike Release time must be between 0 to 9
minutes.
• N3 and N4 - Lock Strike Release time must be between
00 to 59 seconds.
4. If the 4-digit settings code is entered correctly, the settings
will be updated and the controller will return to
Programming Mode.
• The Mode LED will turn orange
Mode Door
Green
Mode
Door
Green
Mode
Door
Oran
e
3 1
Mode Door
