Rosslare Mifare CP-R25 User Manual

Additional Programmer Utilities
CP-R25 Hardware and AS-B01 Software Manual 31
6.1.2 Reading an ID from a User Card
This utility is used to ensure that the Mifare
®
User Card is configured properly.
This option is only available for the Sector
Operation Mode .
To read an ID from a Mifare
®
User Card:
1. Select either the Sector Reader or CP-R25 tab.
2. In Operation Mode , select Sector.
3. Select the
Card Type , either Mifare
®
1 K or Mifare
®
4 K.
4. From the
Transmit Format dropdown menu, select the applicable
transmission format.
5. In
Operations , select Card utilities.
6. From the Operation Type field dropdown menu, select Read ID from
User Card.

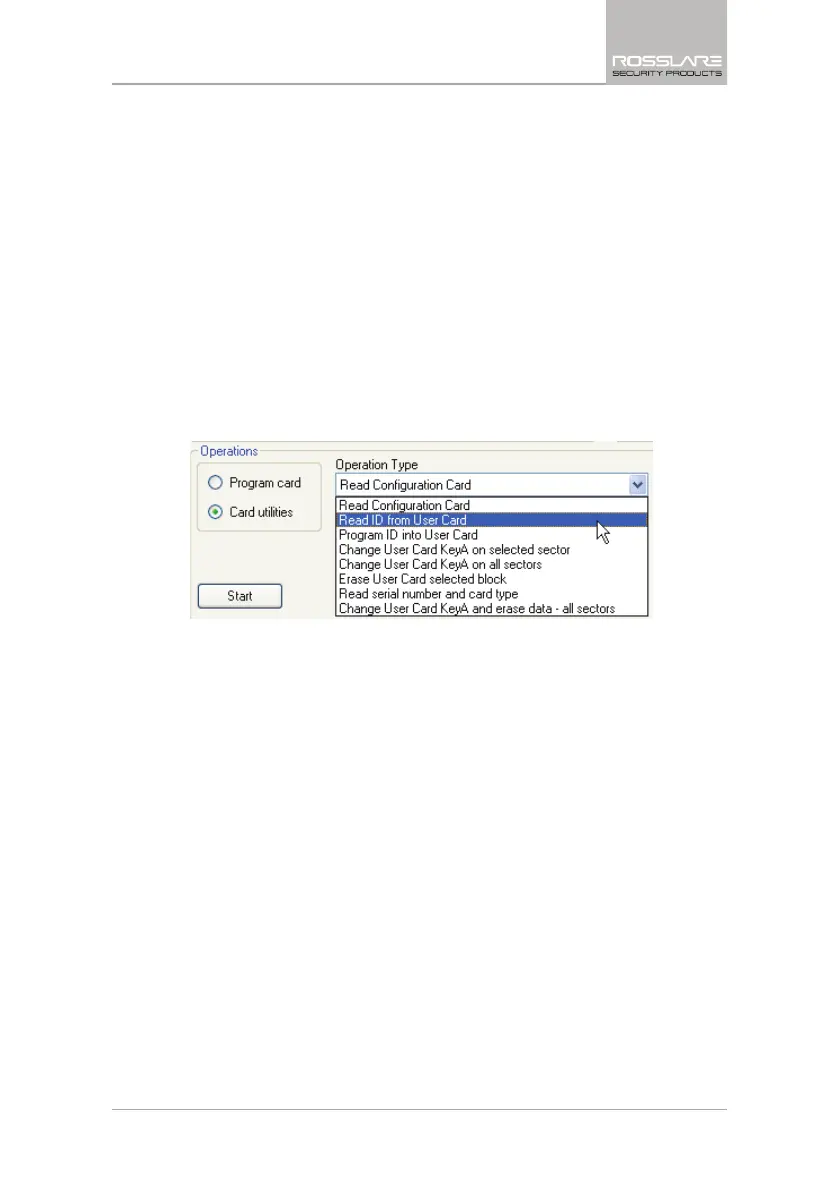

Figure 13: Read ID from User Card
The KeyA and User Card ID fields appear.
7. Enter the KeyA of the card being read.
8. Place the Mifare
®
User Card on the CP-R25 Desktop Programmer antenna
area.
9. Click Start to display the card ID in the Mifare
®
User Card ID field.
6.1.3 Programming a User Card ID
This utility is used to program the User Card ID into a specific location on the
User card without configuring the card template or KeyA.
This option is only available for the Sector
Operation Mode .
To program an ID into a Mifare
®
User Card:
1. Select either the Sector Reader or CP-R25 tab.
2. In Operation Mode , select Sector.
3. Select the Card Type , either Mifare
®
1 K or Mifare
®
4 K.
4. From the
Transmit Format dropdown menu, select the applicable
transmission format.
5. In
Operations , select Card utilities.
6. From the Operation Type field dropdown menu, select Program ID into
User Card.
