ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
Attention: Use of any other battery charger can impair the battery life or may ruin the battery.
When charging the battery take note of the following:

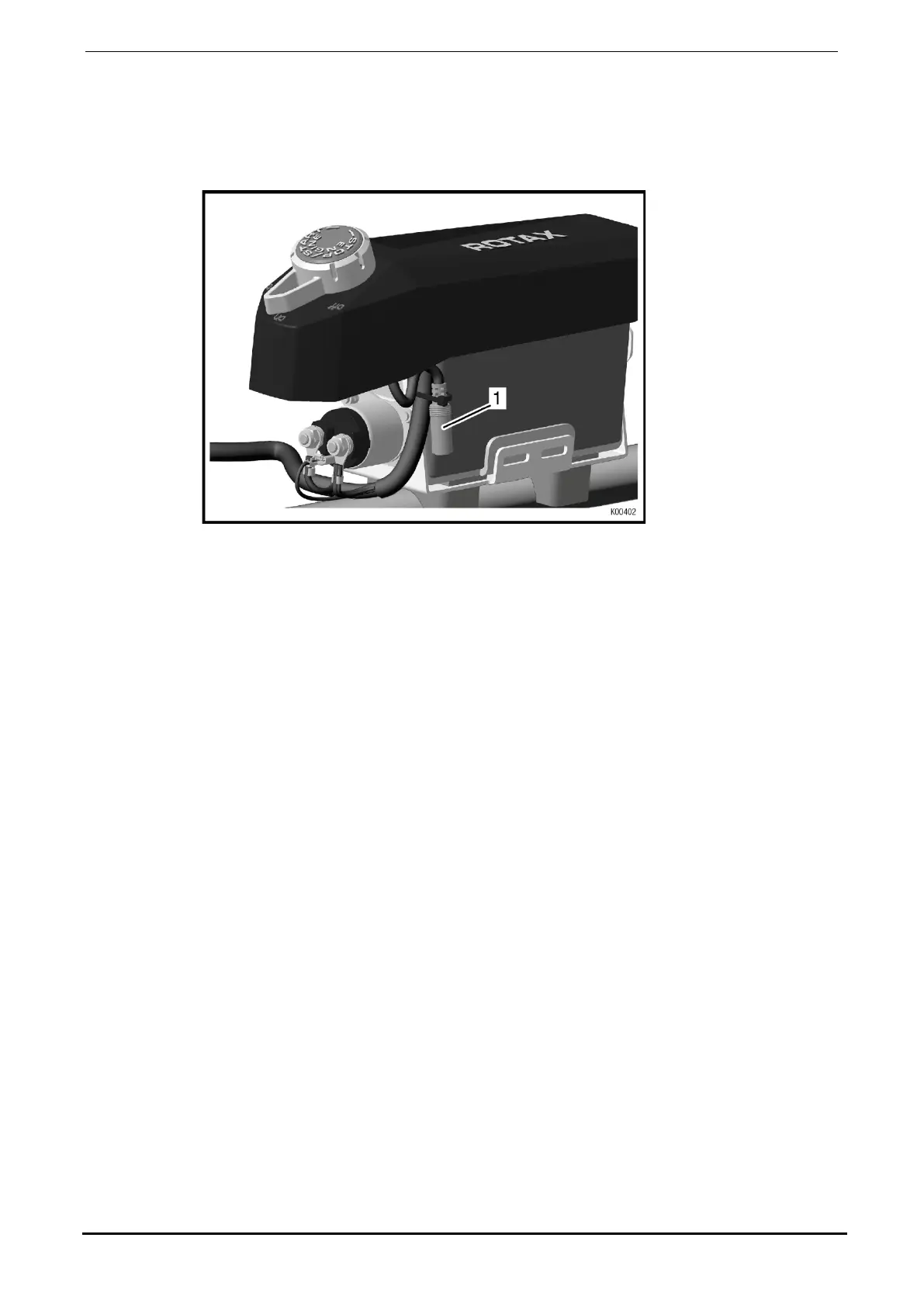

Connect battery charger to the charging connector (pos. 1).
Fig. 1
Attention: The battery charger is not equipped with a protection against wrong connection.
Incorrect polarity of connection would result in the damage of the battery charger.
Connect the battery charging unit on 110-230V, 50-60Hz power supply. During the
charging procedure the charge indicating lamp will light up red.
At completion of the charging process the control lamp will change to green but the
charging current will remain thus warranting a fully charged battery.
The charging time is approx. 12 hours.
Note: The battery charger may be connected to the battery for a longer period, as the
battery takes just the current required to achieve a fully charged battery.
Note: Non-extinguishing of the red control lamp, even after 24 hours of
charging, indicates that the storage capacity of the battery is
diminishing.
Note: A red/green blinking of the charging control lamp indicates transition from main
charging to additional charging and does not signal a faulty battery charger.
Unplug power supply to battery charging unit.
Remove output wires of the battery charger from the battery.
The battery is ready again for use.
Attention: In addition to these directives, follow the advice of the battery charging unit
manufacturer.
Note: When the battery gets charged if not mounted on the kart use the adapter cable
(part no. 266022). If needed contact your authorized distributor or one of his ROTAX
service centers.
Seite/page 74/98
Ausgabe/Edition 11/2014
