Rotax 912 i series - Page 74

BRP-Rotax
MAINTENANCE MANUAL LINE
09588
1
3
2
6
4
5

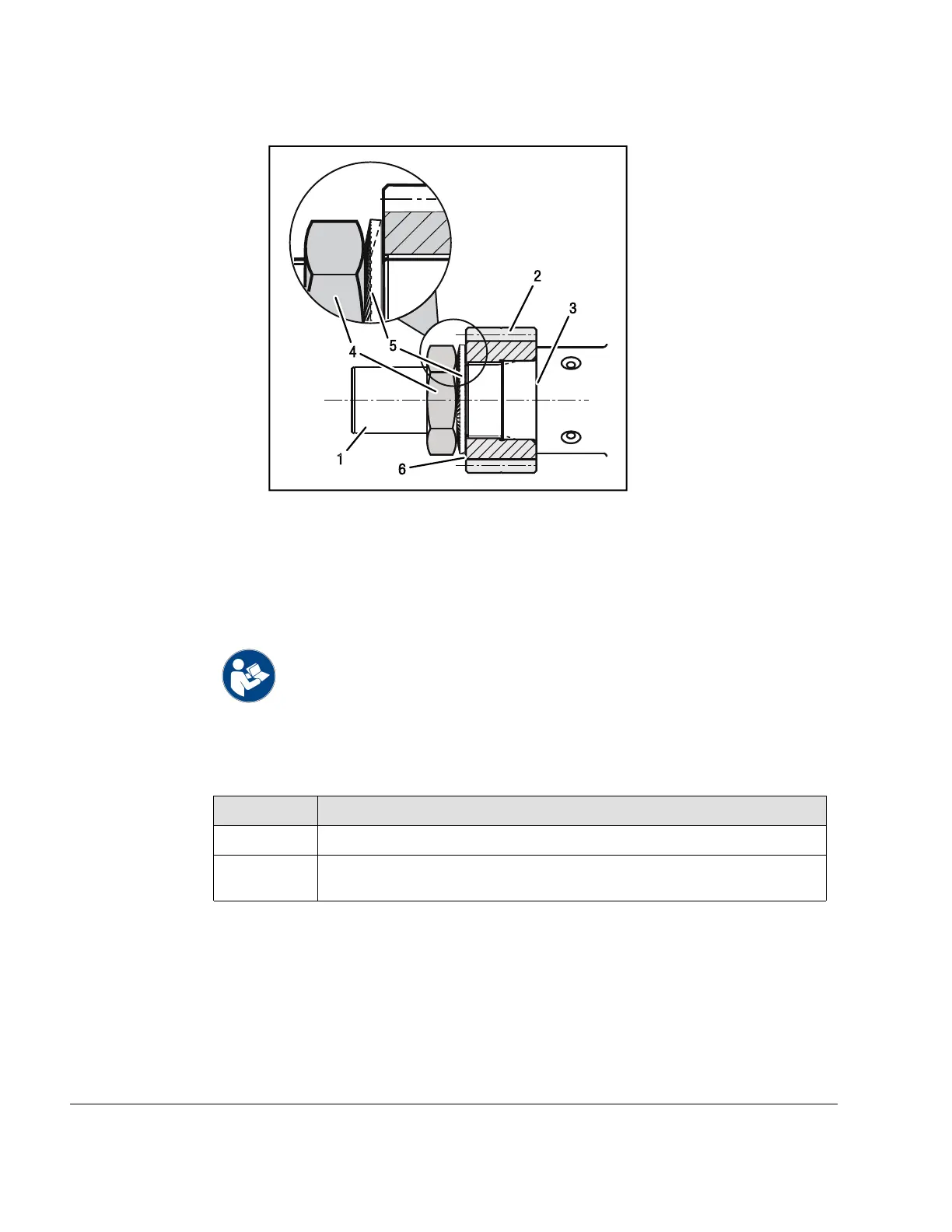

Figure 5.7
1
Crankshaft (power take off side)
2
Drive gear
3 Crankshaft 4 Hex. nut
5 Friction washer VS-30 6 Serial number
See Maintenance Manual Heavy for the engine type 912 i Series Chapter
72-10-00 section Wear limits (CS24).
NOTE
If there is slight vertical run-out, replace the nut and repeat the measurement.
Step
Procedure
4 Insert 2 dowel pins 6x20 into the crankcase.
5
Apply KLUEBER ISOFLEX TOPAS into the needle bearing and lubricate
the crankshaft with LOCTITE Anti Seize.
